Descriptions:

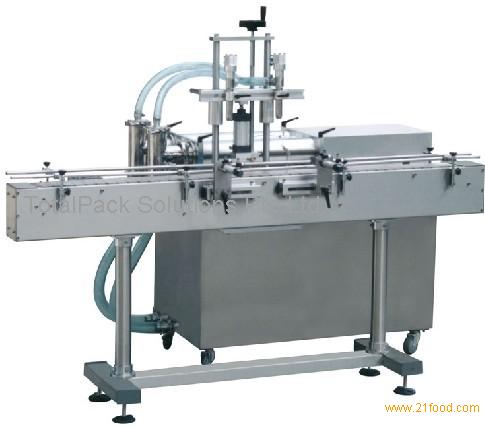

The FLL-200A automatic two nozzles liquid filler (piston filler) is designed and engineered to produce outstanding quality and precision filling suitable for various industrial products such as shampoo, hot sauce, lubricant oil, etc.
The filler can be incoperated into bottling production line.

Features:

Adopt advanced pneumatic parts from Germany FESTO.
Piston filler with PLC control system.
Piston filler with cGMP design / cGMP standard.
Easy to adjust from one bottle size to another.
All nozzles can be adjusted according to any types of liquid filling.
Variable Speed Drive.
Quick cleaning and simple to maintain.
Available models: 5-60 ml, 25-125 ml, 50-250 ml, 75-500 ml, 300-1000 ml, 500-2500 ml and 1000-5000 ml.
99% Filling accuracy.
2-nozzles fill simultaneously and accurately.
The piston filler with Features no drip fill nozzles.
All contacted materials parts with your liquid products are made of high quality 316L stainless steel.
Piston filler with no bottle no filling mechanism.
FREE conveyor and stainless steel tank include for this filler.

Specifications:

Filler power supply: 220v 1phase or 110v 1phase. Optional.
Filling range: 5 ml (min. ) - 5000 ml (max. )
Filling precision: 99%.
Air pressure: 0.4-0.6 MPa.
Current: 3 A. Power: 300 W.
Dimension: 1000*700mm*1200mm.
Weight: 200kg.
