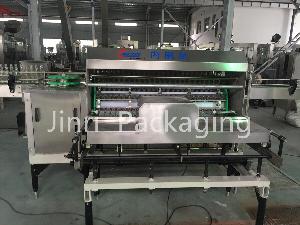

3000-6000BPH Automatic Glass bottle washing machine Glass bottle recycling line
Soaking- Outer Brush-Inner Brush.
Application and scope of application
ZXP——150 type of automatic bottle washer, which is used for diverse specifications of
bottles. Whatever new or old bottles of beer, bottles of wine, bottles of beverage and so on.
A set of machinery consists of liquid filling machine and capper machine. This set create a
automatic line to product. The step of the automatic line which are washing, bulking and
packing. We also can offer stand-alone belong to single-function of washing.
2. Main technical parameters
2.1 bottle specification (cylindrical)
external diameter: 56- 82mm ,hight: 180-290mm ,inner diameter of bottle: greater than 15mm
2.2 productivity: 4000-6000bottle/hour
2.3 Clean up rate: greater than 90%
2.4 Extract rate: 0.3%
2.5 total power: 9.72Kw , Voltage: 380V
2.6 total weight: 5.2t
2.7 external dimensions:
Steeper: 3*2.2*1.5* (m)

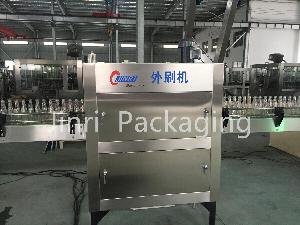

Outside brush machine: 1.3*0.6*1.9 (m)
Inside brush machine: 2.3*1.3*1.5 (m)
Bottle conveyer: 8m (length)
Flow chart of the special order production line:
Soak pool- Clean external laber-Conveyor belt to clear side laber- Clean water wash- Turn over device for bottom /Bottom brush to clean the bottom of bottle wash- Internal wash-- Rinser internal bottle- blow air -Dry machine
