Product Description

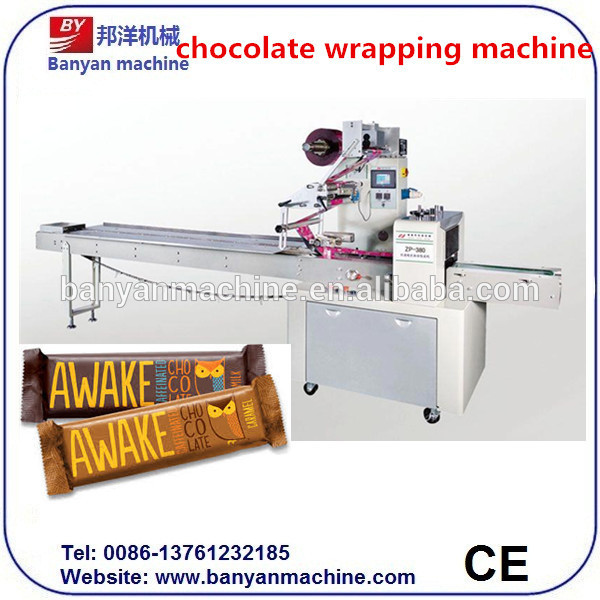

Automatic Horizontal Bar Chocolate Pillow Wrapping Machine
PLC control
Touch screen
warranty:1 year
speed:20-220pcs/min

Automatic Horizontal Bar Chocolate Pillow Wrapping Machine

Usage:

Applicable for packing biscuit , Bread ,chocolate ,vitelline pie , lollipop,moon cake , Ice cream , card , and so on.

Brief introduction:

1. PLC control, high sensor photoelectric color chart tracing

2. Excellent p erformance, simple operation and high-speed packing.

3. Gear system besides double frequency converter controller, which making machine simpler operation and more stable when high-speed working.

4. Color touch screen , highest pillow type packing machine in china

P roduction capacity	30- 220 bag s/min
Width of film	90-220mm
Making bag size	L 65 - 1 6 0 mm; W30-100mm; H5-35mm
Total Power	2.7kw
Voltage	220V /50-60Hz
Machine Size	L4000X W950X H1600 (mm)
Size of packaging wooden case	Head of machine: 165010001600mm Tail of machine: 3000400350mm
Net/gross w eight	4 5 0 /550 kg

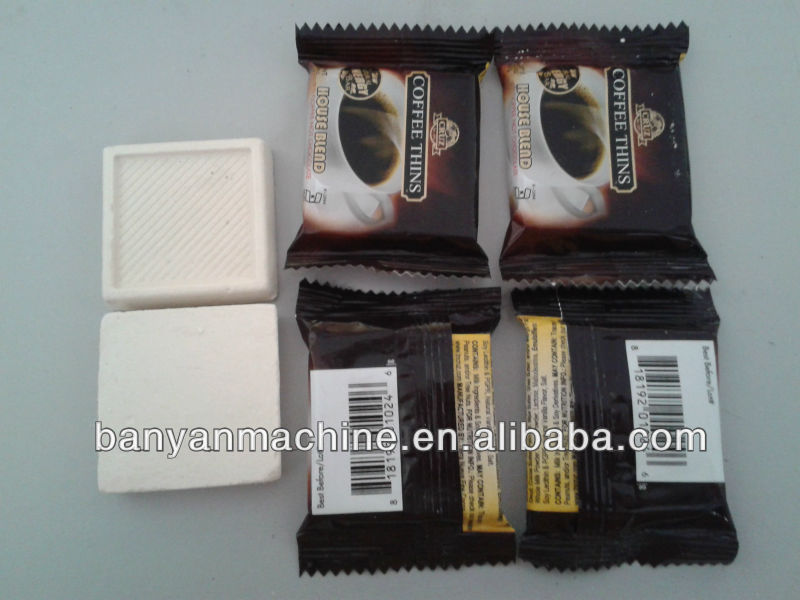

packing samples:

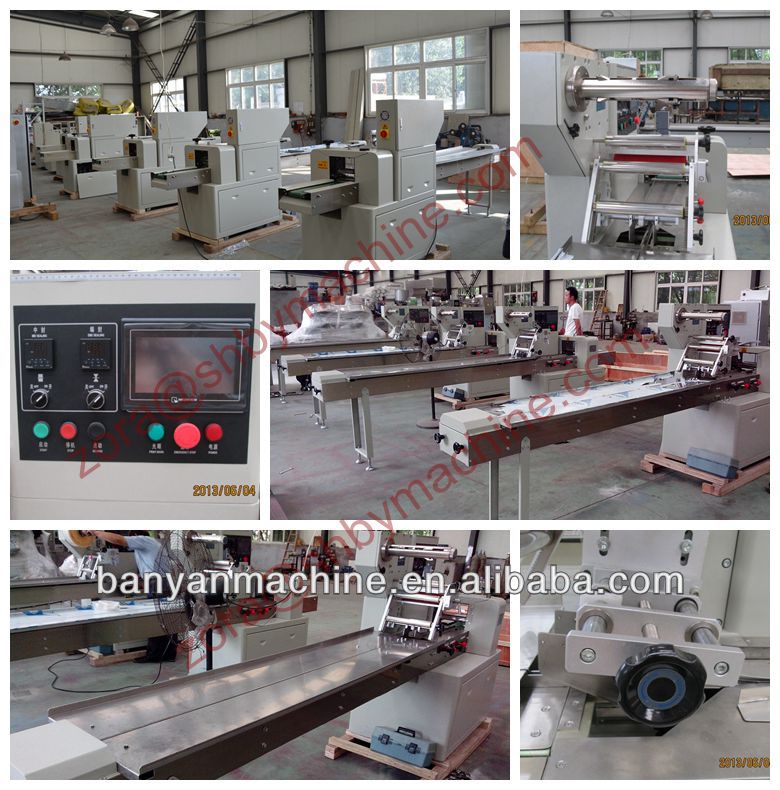

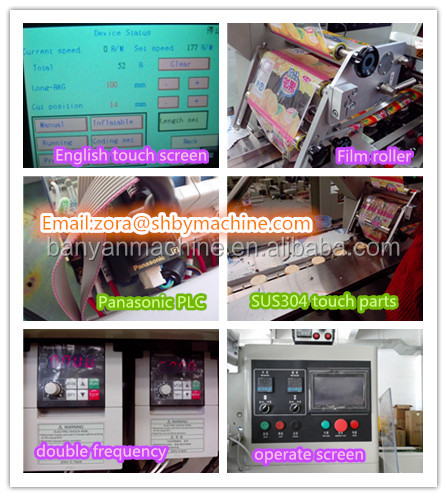

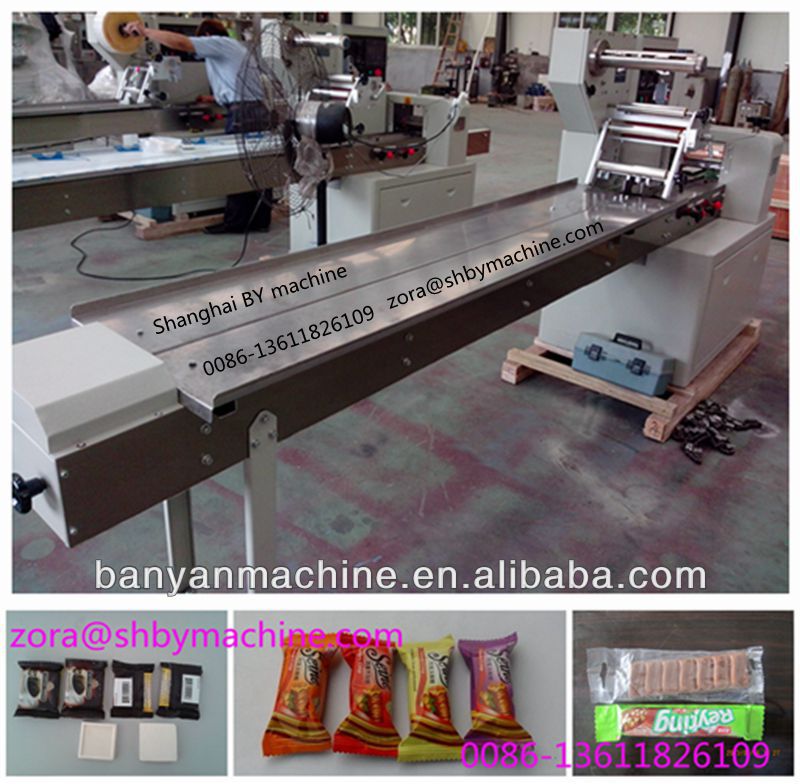

Machine's more details:

Welcome Your Inquiry About It !

Type:	Other	Condition:	New	Application:	Food
Packaging Type:	Film	Packaging Material:	Wood	Automatic Grade:	Automatic
Driven Type:	Electric	Voltage:	220V	Power:	2.7KW
Place of Origin:	Shanghai China (Mainland)	Brand Name:	BY	Model Number:	BY-100
Weight:	400KG	Dimension(LWH):	40009501600mm	Certification:	CE
After-sales Service Provided:	Engineers available to service machinery overseas	business mode:	factory production	seal type:	pillow seal
operate language:	Englsih	controller:	PLC	making bag size:	L65-160MM.W30-100MM,H5-35MM
warranty:	1 year	screen:	color touch screen	width of film:	90-220mm
system:	gear system	product name:	chocolate wrapping machine
