Automatic Horizontal Flow Chocolate Bar Packing Machine,China Kendy price supplier

Automatic Horizontal Flow Chocolate Bar Packing Machine

FOB Price:Price can be negotiated

Production Capacity:5 Set/Sets per Month

Update Time:2023-05-20

Contact Supplier

Product Description

Flow chocolate bar Packing Machine
1.Dual servo
2.80-350bag/min,depend on the product
3.Components import from famous brand

Automatic Horizontal Flow Chocolate Bar Packing Machine

Product Description

Introduction

Application

Automatic heat pack machine KFW300 is applicable for packing various solid regular objects, such as mooncake, bread, biscuits, candies, snow cakes, custard cakes, chocolates, instant noodles, medicines, commodities, hardwares, carton, trays and etc.

Package Samples Ref.

Technical Features

Automatic heat pack machine KFW300 programmed and controlled by servo motors , the working speed regulated individually and the wrap bags length adjustable to meet different needs ;
User friendly Touch Screen HMI guarantee the easy operation and multi-language display conversion ; Simple to operate and adjust settings through graphic HMI
High-precision photocell control tracking system to recognize products with different colors and guarantee the precise sealing and perfect printing
Easy format changes for packaging various sized products using adjustable former and ensures high production ;
Built-in heated Sealing Roller improve the speed and sealing reliability , avoid melting the film and cost-saving of package material ;
Double film roll spindles with automatic film splicer

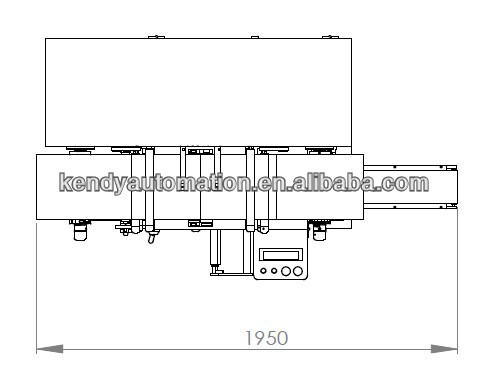

PICTURE FOR REF.

Whole Automatic heat pack machine KFW300 body view

Side view

Rear view

Packaging Technology

Stainless steel product contact parts
2 film reel holders
Automatic film splicer
Photocell for product detection
No product- no bag function

Technical Parameter

Model No.	KFW-300
Film width	80-300mm
Bag length	60-400mm
Bag width	35-100mm
Product height	30-60mm
Film roll diameter	Max 350mm
Packaging speed	80-350bag/min
Packaging materials	OPP,PVC,OPP/CPP,PT/PE,KOP/CPP,ALU-FILM
Power	Singe Phase, 220V,50HZ
Machine size	(L)1600×(W)1000×(H)600
Total Power	4.2 KW, Heating power: 2.1KW
Net Weight	1000KG

Assembling and testing

Components and Brands

NO.	NAME	BRAND	REMARKS
1	Machine Cover	Kendy	Main part is carbon steel, and touch material parts are 100% SUS304 stainless steel
2	Motor	ATL (Taiwan)
3	Servo motor	Fuji ( Japan )
3	Transducer	Schneider (France)
4	Conveyor	Yongli (Shanghai)
5	Photo sensor	SICK (Germany)
6	Encoder	Omron (Japan)
7	Cylinder & Solenoidvalve	Airtac (Taiwan)
8	PLC	Kendy
9	Touch screen	Weinview (Taiwan)
10	Contactor	Schneider (France)
11	Switch	Schneider(France)
12	Intermediate relay	Omron(Japan)

Type:	Packaging Line,heat pack	Condition:	New	Application:	Food,Commodity,Medical,Machinery & Hardware
Packaging Type:	Film,Case	Packaging Material:	plywood case	Automatic Grade:	Automatic
Driven Type:	Electric	Voltage:	220v/380v	Power:	4.2kw
Place of Origin:	Guangdong China (Mainland)	Brand Name:	Kendy	Model Number:	KFW300
Dimension(LWH):	L1600W1000H600	Weight:	1000KG,1000kg	After-sales Service Provided:	Engineers available to service machinery overseas
Color:	Silver	Material:	stainless steel	Model:	KFW300
Packaging speed:	80-350bag/min	Film roll diameter:	Max 350mm	Product height:	30-60mm
Packaging materials:	OPP,PVC,OPP/CPP,PT/PE,KOP/CPP,ALU-FILM
