Automatic inline sauce filling machine,China derui price supplier

Automatic inline sauce filling machine

FOB Price:Price can be negotiated

Production Capacity:60/year

Payment Terms: T/T

Update Time:2021-05-16

Contact Supplier

Product Description

a . Application and performance

We design the machine specially for jar to fill sauce, jam and other with granule, which save labor greatly and improve filling efficiency.

It adopts PlC control, small cubage, light weight and smart appearance. All contacts are 316L .

a . Work theory

Manual or bottle feeder feeds bottle to conveying line, after that the bottles are conveyed and separated to different filling line (there are two filling lines), when sensor checks the first bottle, block and orientate and count bottle, when the bottles are up to the set value, conveyor stops and filling starts, to the set value, filling stops. Then all bottles are conveyed to next step.

a . Components:

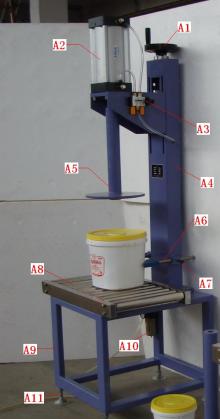

It is composed of frame, hopper, filling system, orientating system, electrical control, pneumatic control, feeding control and chain conveyor.

a . Technical parameter

Specification	Data
Voltage	380V 50Hz
Filling range	250-300ml
Filler dimension LWH (mm)	1620×1500×2100
Mixing power kw	2.2
Filling power kw	2.2
Dialing bottle power kw	0.18
Conveying power kw	0.75
Output	1500-2000 b / h
Air consumption	0.3 / m

Other Products

edible oil dosage filling and capping

automatic sauce filling line

Automatic inline sauce filling machine

pnuematic capper machine

Company Profile

Name: Wuxiderui Packing Machinery

Main Products: filling machine,emulsyfing machine,mixer machine

Business Type: Manufacture

Total Employees: 50 ~ 100

Established Year: 2006

Total Annual Revenue: US$1 Million - US$2.5 Million

Address: NO.198-1,Qinglongshan Indrstial Park,Wuxi Jiangsu

Wuxi Derui Packing Machinery Manufacturing Co., Ltd specializes in design, manufacture and sale of packaging machine and quantitative filling of various materials. Our company has ISO9001:2000 certificate.

The company is near the Taihu Lake with convenient traffic condition. Accumulating experienced top-ranking talents in mechanical-electrical integration packing equipment, the company adheres to innovation on science and technology and industrialization with high education, leading design, exquisite manufacturing technique and perfect methods, which ensure the lead and perfection of products. Our products are marketed at home and Southeast Asia, Middle East, Europe and USA.
