Automatic Instant Noodle Production Line,China GELGOOG price supplier

Automatic Instant Noodle Production Line

FOB Price:Price can be negotiated

Production Capacity:100 Set/Sets per Month

Payment Terms: US $103,000 - 104,000 / Set

Update Time:2021-04-13

Contact Supplier

Product Description

Automatic Instant Noodle Production Line
1.Invests slightly
2.Effects fast,
3.Suitable to small & medium enterprises

Automatic Instant Noodle Production Line

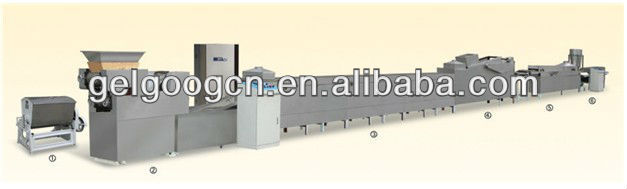

The total length of the line is 20 meters and this line can be installed turning right-angle. The line consist of dough mixing machine/host machine/boiling machine/ automatic electric fryer and cooler.

It has the characteristic that Invests slightly, effects fast,which is suitable to small and medium enterprises and also the microbusiness

Model	Electric automatic GG-4	Steam automatic GG-4
Total installed capacity	154kw	42kw
Steam pressure	1.5kg/cm	6kg/cm
Capacity	1375pcs/h	1375pcs/h
Size	260.71.5m	260.71.5m

TECHNICAL PARAMETERS:

1 .Dough Mixing Machine

rotating paddle diameter : 490mm

rotating paddle speed : 140r.p.m

power : 3Kw

maximum capacity : 25kg/one time

2. Host Machine

1) Rolling and Pressing Machine

width : 210mm

capacity : 150kg/h

power : 2.2kw

dimension ( L×W×H ) :1400×600×1250mm

2) Automatic Cutting and Shaping Machine

technical parameters :

cutting knife diameter : 37.5mm

speed : 101r/min

3. Boiling Machine

1) boiling part

effective convey length : 5m

convey speed : infinite variable speed

boiling time : 70 ~ 90 seconds

boiling temperature : 96 ~ 98°C

capacity : 180kg/h

power : 45Kw

dimension ( L×W×H ) :8000×440×1250mm

2) cutting part

cutting knife diameter : 80mm

speed : 28 round/minute

4. Automatic Electric Fryer

speed : adjustable

temperature : 150°C

frying time : 60 ~ 90 seconds

power : 36Kw

oil consumption ratio : 20 ~ 22%

dimension ( L×W×H ) :3300×600×1300mm

5. Cooling Machine

effective length : 3m

convey speed : adjustable

power : supplied by fryer

cooling power : 3×30W

gas release quantity : 3×28m 3 /min

dimension3080×500×1100mm

6. Packing machine

Model	GG-250B
Film Width	Max.250mm
Bag Length	65-190mm
Bag Width	30-110mm
Product Height	Max. 40mm
Film Roll Diameter	Max. 320mm
Packing Speed	40-230 bag/min
Power Spec	220V,50/60HZ,2.4KVA
Machine Size	(L)3770×(W)670×(H)1450
Machine Weight	800 Kg

Instant Noodle Production Line" data-width="432" data-height="257" ori-width="432" ori-height="257" />

Product Type:	Noodles	Style:	Instant	Processing Type:	Fried
Feature:	Low-Fat	Certification:	ISO	Packaging:	Bag
Primary Ingredient:	grain	Shelf Life:	6month	Place of Origin:	Henan China (Mainland)
Brand Name:	GELGOOG	Model Number:	GG-4	Capacity:	11000bags/8hours
