COCONUT WATER Filling Machine
1.PLC control
2.with spout
3.date printing
4.less ground demand

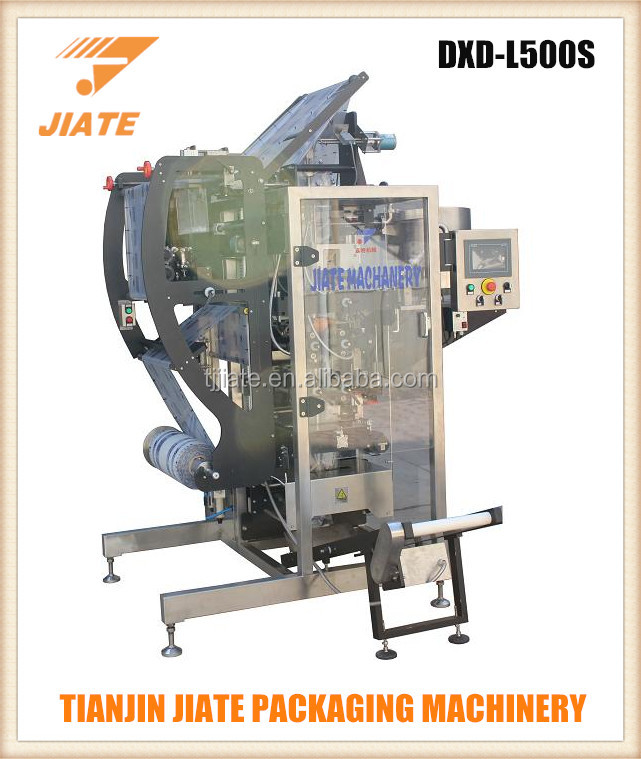

Automatic Liquid Pouch Pack Coconut Water Filling Machine
Technical Specification
Model | DXD-L500S |
Product Type | Liquid |
Capacity | 10-25 pcs/min |
Measuring Range | 200-1200 ml |
Bag Type | Stand-up oblique spout pouch/bag |
Control | PLC Control,touching screen operation,the man-machine interface |
Total Power | 2.0kw-4.8kw, |
Votage | AC220+/- 10%v50HZ |
Air Consumption | 1.0 cu.m/min (0.8Mpa) |
Grass Weight | 650kg |
Bag Material | PE/PA/PET,PE/PA,PE/PET,PE/BOPP,PE/AL/PET |
Film Width | 400mm-650mm |
Overall Dimension | 2600*1100*2600mm (L*W*H) |
Measurement Accuracy | +/- 1.5% |
Performance & Structural Characteristics
1.PLC control systems, human-machine interface,touch screen, operation is simple, intuitive;
2.It used for packing liquid and paste products such as water,juice,jam,sauce and so on.
3.Improved automatic alarm protection, in order to minimize the loss;
4.Automatically finishes the processes of pouch forming,filling,(spout welding),sealing,cutting,date priting for stand-up pouch with spout(without spout) packaging;
5. The machine has simple and compact structure which is convenient to operat e , adjust, maint ain .
6.The machine can be inproved according to customer needs;

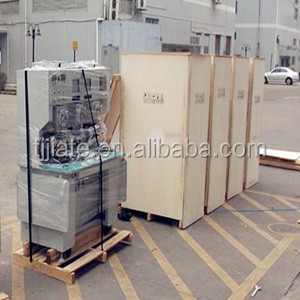

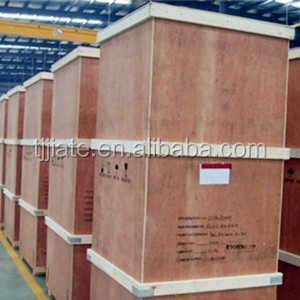

Our safe packing of Automatic Liquid Pouch Pack Coconut Water Filling Machine is film coated and wooden case outside as photo showing.
One set for sample is available.
Engineers available to service machinery oversea in case of buyer paying the expenses.
We can supply all parts of machinery after sales.
Machine warranty period of one year.
Q: What about Payment?
A: 1.choose the type/model of machine you need
2.pay 30%-50% deposite (depend on the value of machine)
3.produce you machine
4.capturing Video of machine running and showing to you.
5.balance payment before shipping.
6.we arrange shipment,machine comes to you
Type: |
Filling Machine
|
Condition: |
New
|
Application: |
Food,Beverage,Medical,Chemical
|
Packaging Type: |
Stand-up Pouch,Bags,Pouch
|
Packaging Material: |
Plastic
|
Automatic Grade: |
Automatic
|
Driven Type: |
Electric
|
Voltage: |
220V
|
Power: |
2.0~4.8KW
|
Place of Origin: |
Tianjin China (Mainland)
|
Brand Name: |
JIATE
|
Model Number: |
DXD-L500S
|
Dimension(L*W*H): |
2600*1100*2600MM
|
Weight: |
650KG
|
Certification: |
available
|
After-sales Service Provided: |
Engineers available to service machinery overseas
|
machine: |
DXD-L500s Vertical Packing Filling Machine
|
