Automatic Packing Machine for lollipop

FOB Price:Price can be negotiated

Production Capacity:3 Set/Sets per Month

Payment Terms: US $13,500 - 28,000 / Set

Update Time:2020-12-23

Contact Supplier

Product Description

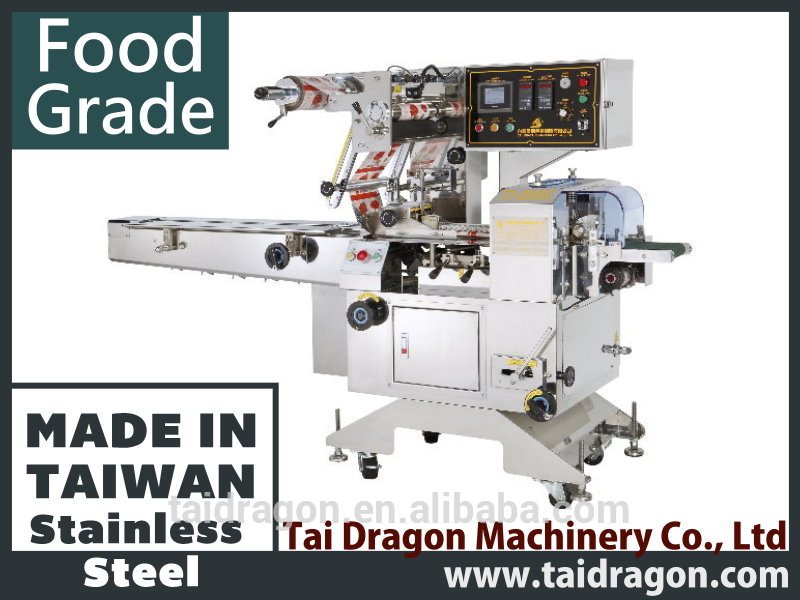

Automatic Packing Machine for lollipop
1.Flow Packaging Machine
2.Single Axis Servo Motor
3.Separated ORRON Temperature Cont

Automatic Packaging Machine for lollipop

TAI DRAGON professional manufacture of Food Packaging machine, auto packing machine, small auto packer, candy bar packing machine, cookies packing machine, chocolate packing machine, Soap packing machine, nougat Soap packing machine.

→ Ergonomic design, elegant and rational, simple yet sturdy construction.
→ Compact design and easy cleaning, suitable for bakery retail store.
→ Independent Bottom-sealed and End-sealed temperature controller.
    (Japan OMRON temperature Digital Controller)
→ Allen-Bradley Servo Control Package.
→ Wrapping speed can be adjust at customers’ request.
→ Easy to operate, packing size can be modified at customers’ request.
→ Independent End-sealed cutting position adjustment.
       >>Prevent cutting out of position product.
→ Color Touch Screen Operator Interface:
     >>HMI touch screen can display current wrapping speed(ppm).
   >>Automatic stop in the intended number.
         >>Fault Display & Warning Message will be displayed if there is any operation error.
→ All surfaces in contact with product and machine cover are stainless steel.
→ Sanitary Modular Design.
→ Automatic film Eye-Mark tracking system, reduce empty pack and film waste.

The TD-200SC Small Auto-Packer has a single axis electronic drive system that is simple for operators to use for adjustment to the required bag length and film print position via a control knob with digital display. The drive control to the seam crimp seamlessly adjusts the print registration to within 1mm of position during machine operation.

Application
Capable of wrapping endless different products in the food sector.

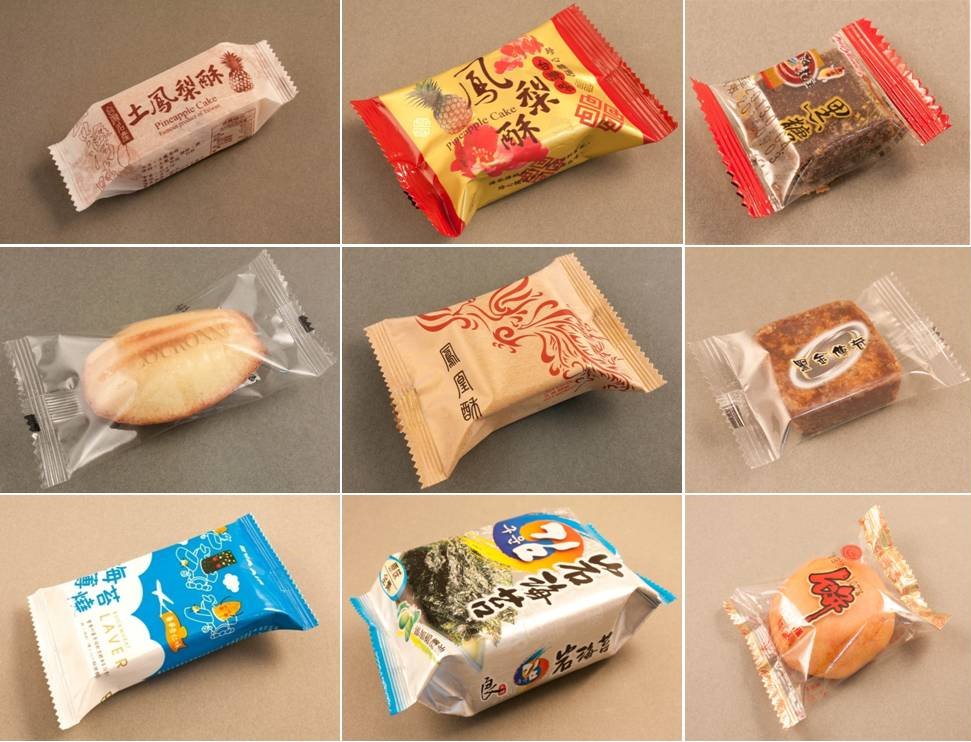

Ideal for smaller sized articles and solids such as Pineapple cake, Nougat, Egg Roll, Chocolates and Cookies.

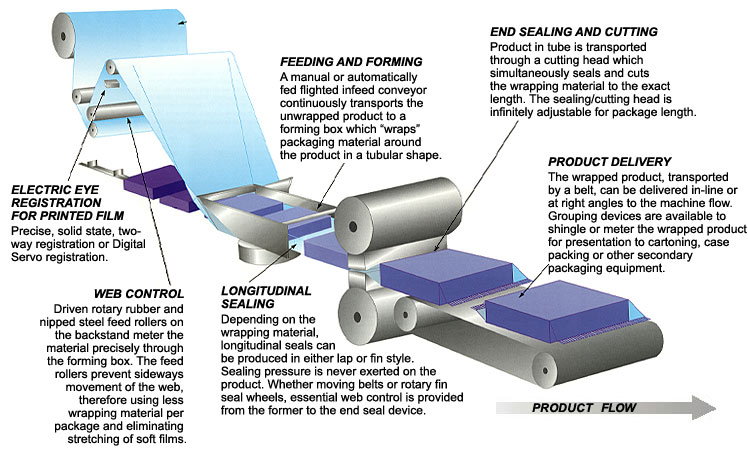

Packaging Flow Chart

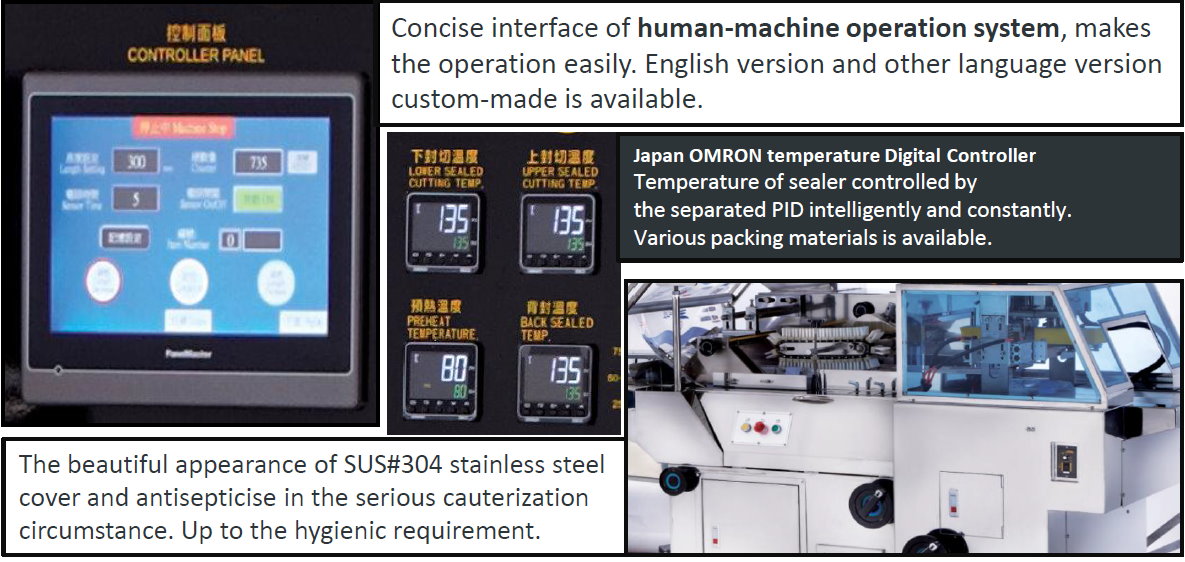

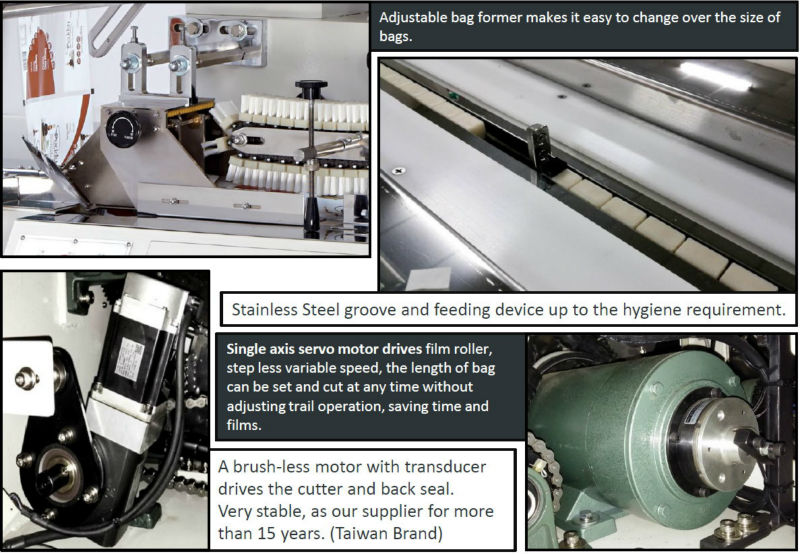

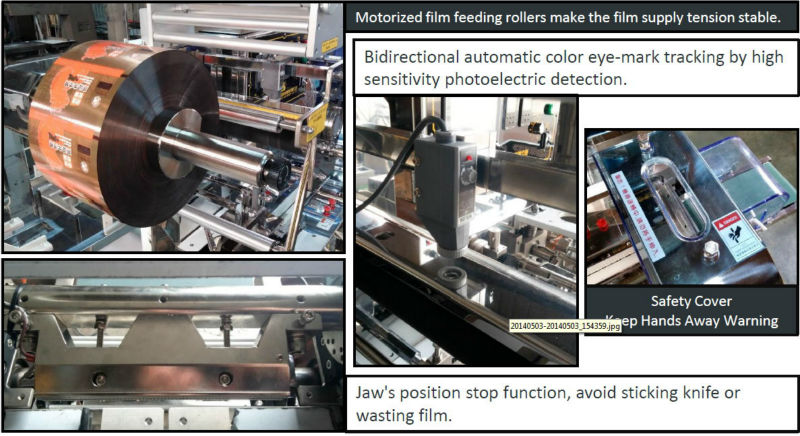

Feature & Details Show

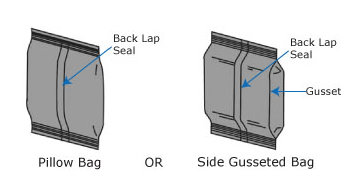

Bag Style

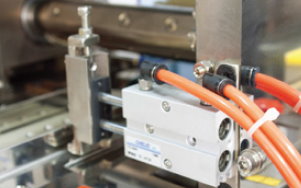

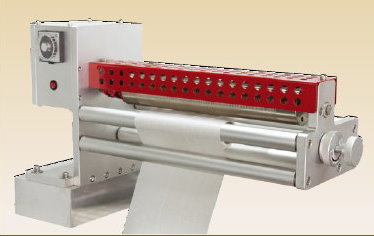

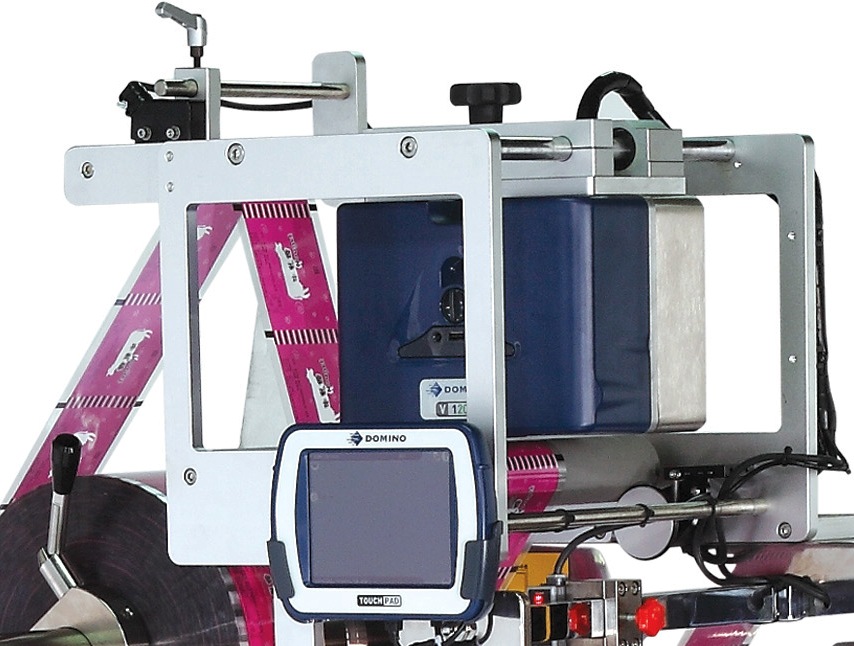

Optional Device

Specification Table Packing

Machine Dimensions and Weight
Length (cm)	245
Width (cm)	72
Height (cm)	140
Net Weight (N.W.Kg)	475
Gross Weight (G.W.Kg)	625
Electrical Features
Voltage (V)	220
Main Motor (HP)	1 (DC)
Servo Motor	400W 220VAC
Electric Heater (KW)	2.4KW 220V
Control System	Touch Screen Control Panel
Frequency (HZ)	60
Safty Device	Emergency Stop Button
Technical Features
Sealing Mode	Continuous sealing with heated crimp wheel and straight bar end seal
Sealing Structure	Adjustable rotating end seal bars 150mm width
Sealing Style	Former, controls film & Heat melt
Feeding Method	Infeed conveyor with pusher arms
Discharge Method	Rubber belt conveyor
Sealing Sides	Three sides sealing
Packing Speed (Bags/min)	25-150 ppm (Depending on packing size and material)
Max. Width of Packing Material (mm)	300
Min. and Max. Packing Length (mm)	40 - 150
Min. and Max. Packing Width (mm)	15 - 100
Min. and Max. Packing Height (mm)	3 - 40

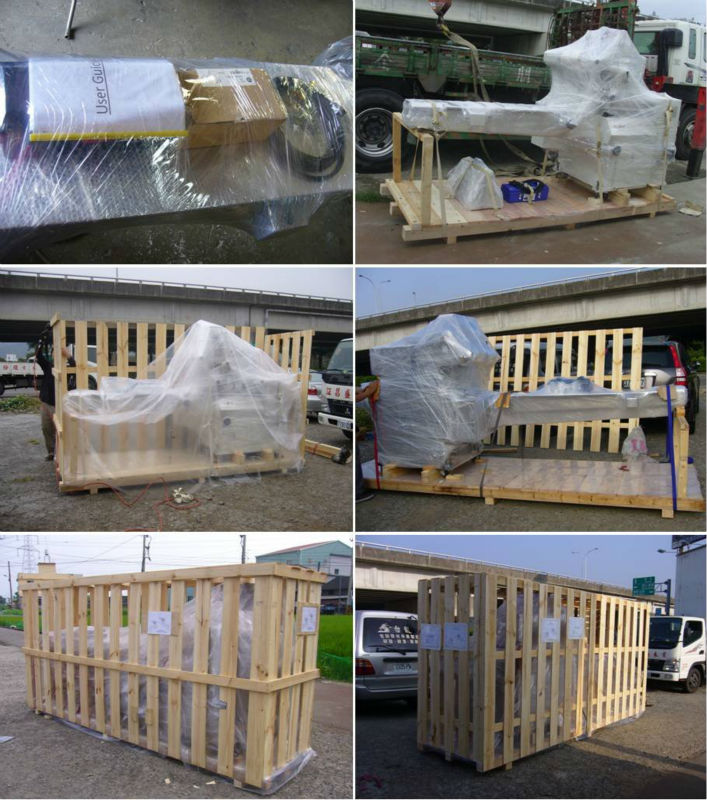

Packing

After inspection,our machines are wrapped by plastic film and then carefully packed in wooden cases.

Why choose TAI DRAGON

1. With more than 30 years expertise and experience.
2. Embrace flexibility and professionalism.
3. We treat our staffs and suppliers as respectful partners.
4. Provide customized services for special orders according to specifications.
5. Long-term customers are happy customers and repeated customers:

6. The goal of our activities is the long-term satisfaction of our customers by the supply of easy-use

and reliable equipment.

Type:	Other	Condition:	New	Application:	Food,Commodity,Medical,Machinery & Hardware,Apparel
Packaging Type:	Bags,Film,Pouch	Packaging Material:	Plastic	Automatic Grade:	Automatic
Driven Type:	Electric	Voltage:	220V	Power:	220V 50Hz
Place of Origin:	Taiwan	Brand Name:	tai Dragon	Model Number:	TD-200SC
Dimension(LWH):	245x900x150	After-sales Service Provided:	Engineers available to service machinery overseas	Cover:	Stainless
