Automatic Passion Fruit Juice Production Processing Line,China GELGOOG price supplier

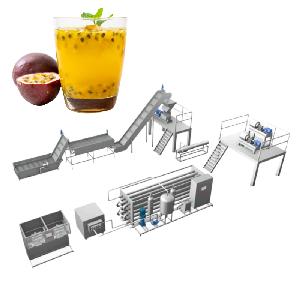

 Passion fruit juice production line, including passion fruit peeling and extracting machine, refined beating machine, homogenization, sterilization, filling and other whole line projects, high automation procedures, thereby saving labor costs and achieving high production efficiency.

Technical Parameters:
Fresh passion fruit processing capacity is 3 tons/hour,
Daily processing 72 tons of raw fruit,
Effectively work 24 hours a day,
Passion fruit juice is packed in 1-30L sterile bags.

Passion fruit juice processing technology:

Cleaning→selection→grading→half-cutting juice→refined beating→homogenization→sterilization→degassing→filling→finished product storage. Each process corresponds to a specific equipment, and the specific functions of the main equipment are as follows:

Cleaning machine: It is mainly divided into two cleaning processes, using bubble tumbling, brushing, high-pressure spraying and other technologies to clean materials to the greatest extent. Two-stage design, recycling energy-saving water, high cleaning efficiency, and no damage to the product skin.
Picking machine: stainless steel drum picking machine, conveying passion fruit as a whole, with rotation plus revolution.
Half-cut juicer: After the passion fruit is fed into the machine through the high-level elevator, the whole white xiangguo is continuously and automatically cut into half through the bowl-pressing conveying mechanism, and the pulp is taken out through the inner scraping net, and can automatically Peel juice residue is separated.
Double-channel refined beater: The double-channel refined beater is used to separate the seeds from the passion fruit puree and refine the puree more uniformly.
Sterilizer: The casing type sterilizer adopts a four-layer casing structure, which is specially used for sterilizing various materials with poor fluidity and high viscosity such as jam, passion fruit pulp, maltodextrin and so on.
Filling machine: Aseptic big bag filling machine is suitable for aseptic filling and filling of other viscous or non-viscous fluids such as 1-1000L fruit and vegetable juice, mango pulp or its concentrated products, dairy products.

Features of passion fruit juice production line:
1. Compact structure and beautiful appearance;
2. Energy-saving design, low energy consumption;
3. Support customization;


Advantages of passion fruit juice production line:

1. High degree of automation, labor saving, with cleaning system, easy to clean.
2. The material contact parts of the system are all made of 304 stainless steel, which fully meets the requirements of food hygiene and safety.
3. The production line configuration is flexible, and equipment with different functions can
