chocolate bar wrapping machines
1.easy operation
2. PLC system
3.high quality
4.CE
chocolate bar wrapping machines
chocolate bar wrapping machines Specifications
Type |
TCZB-320B |
TCZB-320D |
|
Film width |
Max. 320mm |
||
Bag length |
65-280mm |
90-330mm |
|
Bag width |
50-160mm |
||
Product height |
Max.45mm |
Max.60mm |
|
Film roll diameter |
Max. 320mm |
||
Packing speed |
40-230 bags/min |
||
Power |
220V,50/60HZ,2.6KVA |
||
Machine size |
(L)3770X(W)720X(H)1450 |
||
Machine weight |
900kg |
||
chocolate bar wrapping machines Applications
Food:mood cake, bread , biscuit ,cakes, of objects with regular
Others: tape, card, packets , plasitc cup , disposable shoes etc regular objects
chocolate bar wrapping machines Descriptions
1. Dual frequency conversion control, bag length can be set and cut on one step, saving time and film.
2. Interface features easy and quick setting and operation.
3. Self failure diagnosis, clear failure display.
4. High sensitivity photoelectric eye color tracing, numerical input of cutting sealing position for extra accuracy.
5. Temperature independent PID control, more suitable for packing different materials.
6. Positioned stop function, without sticking knife or wasting film.
7. Simple driving system, reliable working, convenient maintenance.
8. All control is realized through software, easy for function adjusting and technical upgrade.
Our certificate
Samples
Product Packing

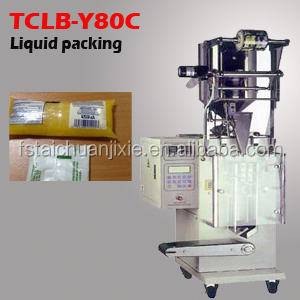

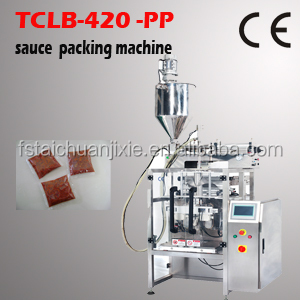

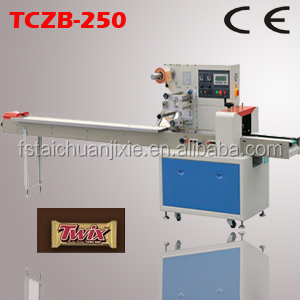

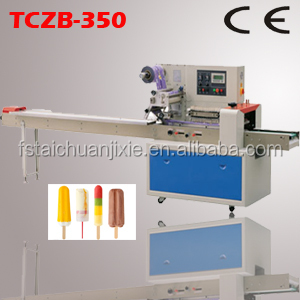

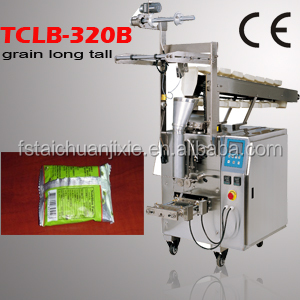

Others packing machine
About Taichuan:
Our packing machinery, most of them adopt imported components of our Packaging Machinery production can reach hundreds of thousands of units each year. The vast majority of customers with our pillow packaging machinery packaging bread, candy, ice cream, chocolate, regular objects, such as, of course, there are also suitable for packing powder particles in the liquid of vertical packaging machine. Our packing machinery has long been popular at home and abroad, the main reason is that good quality And competitive price and first-class after-sales service. We are committed to building China's southern China's largest packaging machinery manufacturing enterprises provide more customers with better quality packaging machinery.
1.Q:Why should you choose Taichuan Packaing machine ?
A:Taichuan is specializing in packing machine for 10 years,with good quality and competitive price.
2.Q: Can you provide after-sale service?
A:Of course,we have engineers available to service machinery overseas .
3. Q:Can I visit your factory and send workers for learning ?
A:Yes,we will provide you about the skill of packing machine
Type: |
Multi-Function Packaging Machine
|
Function: |
Wrapping
|
Application: |
Food
|
Packaging Type: |
Film
|
Packaging Material: |
Plastic
|
Automatic Grade: |
Automatic
|
Voltage: |
220V
|
Power: |
50/60 Hz
|
Place of Origin: |
Guangdong China (Mainland)
|
Brand Name: |
Taichuan
|
Model Number: |
TCZB-320
|
Dimension(L*W*H): |
3770*670*1450mm
|
Certification: |
CE
|
After-sales Service Provided: |
Engineers available to service machinery overseas
|
Film width: |
max.320mm
|
Bag length: |
65-330mm
|
Bag width: |
50-160mm
|
Product height: |
max.40-55mm
|
Packaging rate: |
40-230 bag/min
|
Machine weight: |
900KG
|
Packing Material: |
OPP/CPP PT/PE KOP/CPP ALU-FOIL
|
shape of sealing bag: |
back side sealing
|
keyword: |
chocolate bar wrapping machines
|
payment terms: |
FOB CIF EXW
|
