automatic poultry drinking system for broiler and breeder,China lionpower price supplier

poultry equipment

Nipple Drinking System main include

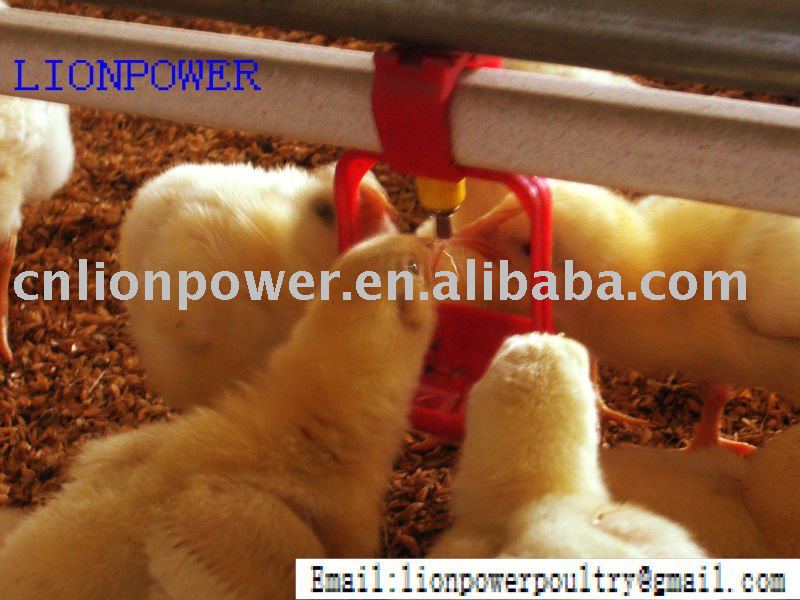

1.Nipple and Pipe

   Space of Nipple 25cm-30cm.

   Space of Pipe 2.5m-3.5m

2.Pressure Regulator

Regulate water pressure,avoid the nipple pressure too large hurting poultry.

3.Head water inlet system

While Drinking line low than 80m,using Head water inlet system

4.Middle water inlet system

While Drinking line more than 80m,using middle water inlet system

5. End water outfall System

To show the water level and  wash the pipe.

6. Lifting Device

Material/Stainless Steel,Sloid,Long using life.

7. filter

Remove impurities,keep the water fresh and healthy.Avoid poultry being sick.On the other hand avoid the nipple being blocked up.

8. Water meter System

1.Caliber/15mm

2.Overload flow-rate/3m3/h
3.Common flow/1.5 m3/h
4.Min flow/0.03 m3/h

5.Full scale reading/99999 m3
6.Least count/0.00005 m3

9. Medical Pump

  Import from France.

  Brand/Dostron

  Material is corrosion resistance,Firm and durable

Nipple Drinking System Features:Provide fresh and healthy water is greatly important for poultry growth.Nipple Drinking System also can improve the environment of Poultry House,reduce the waste of fodder,reduce work intensity. So,this system is essential in modern Cultivation.Based on different cultivate Variety,We adjusted the structure and work accuracy,improve drinking effects greatly!

Water Line Paremeter

1.Space of Nipple/20cm/25cm/30cm.

2.Space of Pipe/2.5m-3.5m.

3.Raising Amout of one nipple/10-15.

4.Max Providing length/150m.

5.Hanging Span/3m.
