Automatic Red Wine Bottling Machine / Machinery / Line
1.2000-24000BPH
2.PLC
3.CE,ISO
4.Glass bottle
Automatic Red Wine Bottling Machine / Machinery / Line

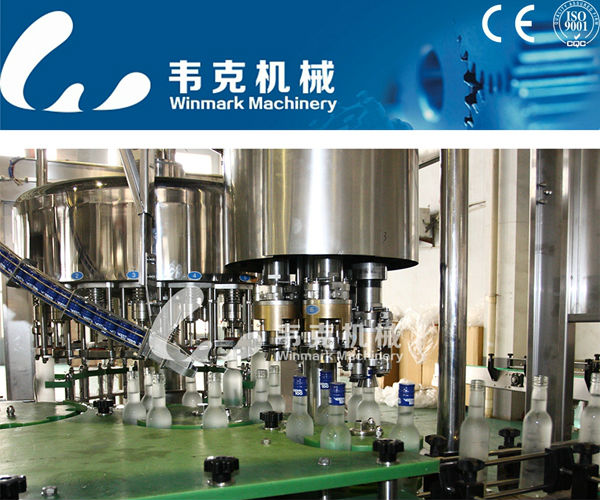

1, The automatic alcohol Filling Machine using high-strength stainless steel bottles of spring-loaded folders, to ensure a stable reversal of the glass bottles. The nozzle is a plum-like structure can wash every corner of the sidewall and bottom to make the bottle clean.
2, Automatic alcohol filling machine with spring-type mechanical lifting equipment to upgrade glass bottles, large bearing support floundering in the vat and use of guide-rod in the orientation of the structure, there are pre-cover features.

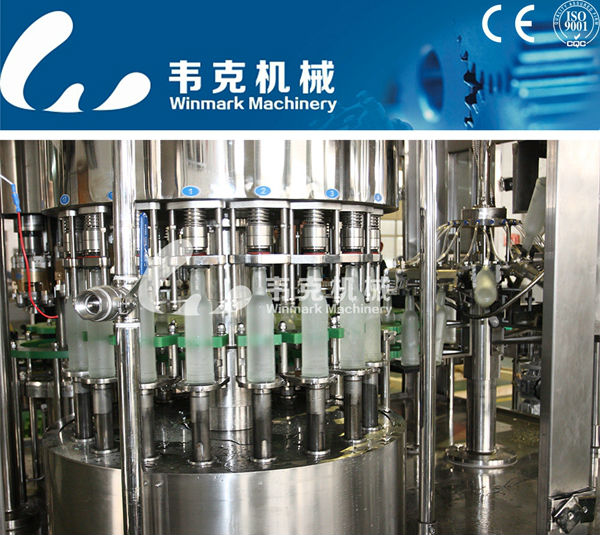

3, Using high-precision mechanical filling valve, with cylinder liquid level and the back pressure controlled by a variable signal proportional. Fast, stable, accurate, to be vacuum one at a time.
4, Stainless steel plunger and mechanical stirring gland-type magnetic reasonable cap to ensure that the gland is healthy and reliable. Hopper and the cap taking- cover, capping transmitted by magnetic. The capping is reliable and automatic unloading, reducing the rate of broken bottles.
5, The automatic alcohol filling machine includes broken bottle automatically stopping valve, broken bottle washing, and foam automatically exhausting device.
6, The whole automatic alcohol filling machine operation adopts advanced man-machine interface, PLC control, frequency conversion stepless speed regulation and other automatic control technology, with no bottle no open valves, no stamps; no cap no operation, and other security protection.
| Model |
CGF-G16126 |
CGF-G18186 |
CGF-G24248 |
CGF-G323210 |
| The number of Washing, Filling, Capping |
16-12-6 |
18-18-6 |
24-24-8 |
32-32-8 |
| Producing capacity; The number of bottle(600ml)/hour |
2000-4000 |
5000-7000 |
8000-12000 |
12000-15000 |
| Applicable bottle specifications (mm) |
φ=50-108 H=170-340 330ml-2.25L |
|||
| Pressure (kg/cm2) |
2~3 |
|||
| Motor power (kw) |
Main motor 1.5kw |
Main motor 2.2kw |
Main motor 3kw |
Main motor 4kw |
| Outside Vacuum Pump power (kw) |
0.75 |
1.1 |
1.5 |
2.2 |
| Overall dimension (mm) (LxWxH) |
2100x1400x2500 |
2460x1720x2650 |
3100x2100x2650 |
3500x2500x2650 |
| Weight(kg) |
2500 |
3500 |
4200 |
5500 |
<img src="http://i00.i.aliimg.com/img/pb/624/169/974/974169624_567.jpg" alt="Juice Filling Machine" width="650" height="401" ori-width="800" ori-height="550">
Why is WINMARK?
Stable high quality of machines (Customer feedback & CE, BV, ISO Certificates & Alibaba Supplier Assessment)
Competitive price
Fast, effective and efficient service and overseas agent!
Quality-packaging
1-year warranty
Q: What is the type of your company?
A: Professional Manufacturer.
Q: Do you have technical support after we purchased your machines.
A: Absolutely! We will arrange our professional engineers to go aboard to your factory, they will teach you how to install and maintainese the machines you purchsed. Or help you to fix machines if it is broken.
Q: Do you have overseas agent?
A: Yes, We have agent in Middle-East, North-American, Africa.
Q: If I buy your machines, can you offer us wear-out spare pats?
A: No problem! We will offer you 1 year free wear-out spare parts. As well as 1 year warranty. Once your machines are broken or doesn't work within 1 year and you can't solve it, firstly, we will try to help you to find problems from your words description by phone or facetime. Secondly, if the phone solutions does't work, our engineers will go to your factory to solve it. Meanwhile, they will teach you the related experiences for fixing.
Q:What kinds of product you supply?
A:Beverage filling machine for water,juice and carbonated drink;Packing system;PET bottle blowing machine;Injection molding machine.etc.
Q:How can we get your products?
A:Find our products through WINMARK machinery in Google ,Baidu. Bing ,Yahoo, Alibaba.com etc
Q:How to tell us your enquiry?
A:Contact us by email, phone call, fax, Instant Messenger (Trademanager, MSN, Skype) and let us know your inquiry.
Q: Where is your factory?
A: Our Factory is located in Zhangjiagang City, it is very near to Shanghai and Wuxi. If you fly to Shanghai or Wuxi, we can pick you up to visit our factory.
Automatic Wine/ Whisky/ Brandy/Vodka bottling machine
vodka bottling line
vodka bottling machine
vodka filling machine
vodka filling line
Automatic Wine/ Whisky/ Brandy/Vodka bottling line
Whisky/ vodka Glass bottle filling machine
Ropp Vodka Filling & Capping Machine
Automatic Whisky/ Brandy/Vodka filling machine
Automatic Wine/Vodka/Whisky Filling Production Line
| Type: |
Filling Machine
|
Condition: |
New
|
Application: |
Food,Beverage,Machinery & Hardware
|
| Packaging Type: |
Cans,Bottles,Barrel,Bags
|
Packaging Material: |
Plastic,Glass
|
Automatic Grade: |
Automatic
|
| Driven Type: |
Electric
|
Voltage: |
380v or by customer
|
Power: |
by order
|
| Place of Origin: |
Jiangsu China (Mainland)
|
Brand Name: |
Winmark
|
Model Number: |
CGFB Series
|
| Certification: |
CE, ISO, BV
|
After-sales Service Provided: |
Engineers available to service machinery overseas
|
Certificate: |
CE,ISO,SGS,BV
|
| Model: |
CGFB Series
|
Suitable liquid: |
vodka, red wine, Whisky, grape wine
|
Company Type: |
Joint venture
|
| Bottle type: |
Glass bottle
|
Production capacity: |
2000BPH-24000BPH
|
Bottle size: |
100ml-2000ml
|
| Technology: |
Automatic Red Wine Bottling Machine / Machinery / Line
|
