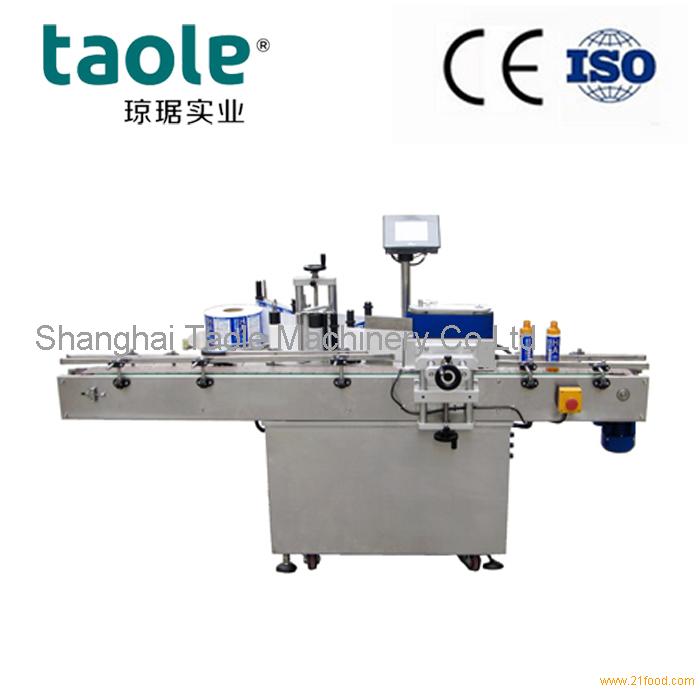

 TL-510 Automatic round bottle labeling machine

Application

The TL-510 is designed for wrap-around labeling on cylindrical bottles and containers. It can be incorporated with a packing line or operated individually.

Technical parameter

1 Power Supply:      110/220V, 50/60Hz, 800W

2 Labeling Speed:     0-25meter/min

3 Labeling Precision:  ±1mm(exduded product and label precision)

4 Bottle diameter:    15-100mm (other measurement can be customized)

5 Label height:       10-120mm (other measurement can be customized)

6 Label reel diameter:  inner 76mm;outer 360mm(max)

7 Machine Size:      L*W*H=2000*1050*1300mm

Feature

1 PLC combined with LCD touch screen pannel,the setting and operation is clear and easy.

2The equipment is complied with GMP requirements and made of SUS304 stainless steel

and high-class aluminium alloy.

3The machine has many functions such as guiding,separating,labeling,attaching, counting

4 The labeling position of height can be adjusted.

5 The machine can be used in production line with conveyer belt.

6 The special machine can be customized according to customer requirement

The Options

1.Hot Foil Printer for date-coding.
2.Product feeding turntable (diameter 650 / 800 /1000mm.)

3.Transparent label detecting photoelectric sensor.
