Product information

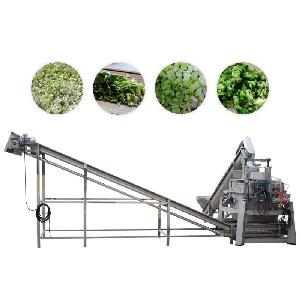

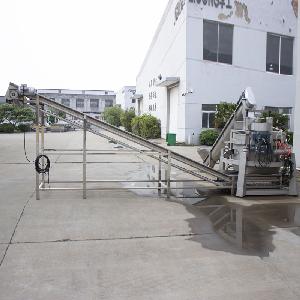

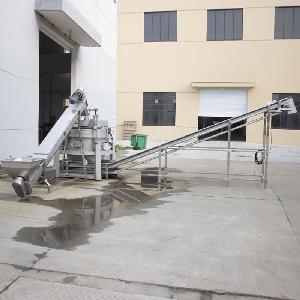

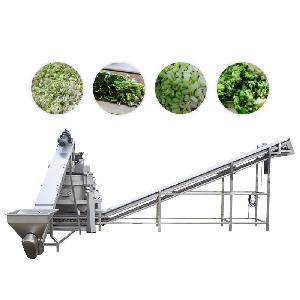

Lg-750 full automatic centrifugal dryer is the latest product independently developed by our company. It adopts microcomputer control and full automatic control of feeding, drying, braking and discharging. The upper part of the feeder can be fed and the lower part can be discharged, which can be connected to the assembly line to complete the flow production, saving the heavy manual labor and reducing the production cost. The drying speed can be adjusted according to the different products, and the speed can be set at will from 300 rpm to 960 rpm. The motor and the main shaft are directly connected and sealed, which runs stably, without leakage and dust, and meets the export hygiene requirements It is mainly used for dehydrating and drying vegetables and fruits, draining and drying vegetables and fruits after cleaning.
Technical parameters
| Dimension (mm) |
Weight (kg) |
Each time (kg) |
Every time |
| Φ1300*h1500 |
1500 |
50-60 |
80s |
| Capacity (t/h) |
Power (kw) |
Voltage (v) |
|
| 2-3 |
4 |
380 |
|
The reference price is the whole automatic dehydration production line
Application
fruit and vegetable drying, solid and liquid separation of chemical products, plastic cleaning and solid separation of sewage and other external dimensions diameter 1300 * height 1500 (mm) net weight 1500 (kg) scope of application: distillery equipment, leisure food factory equipment, frozen food factory equipment, fruit and vegetable processing plant equipment, seasoning processing plant equipment and other equipment.
|
|
|
|
Jiangsu Ligong Fruit and Vegetable Machinery Ltd is a provincial technology-oriented privately-runenterprise, which focuses on the research, development and manufacturing of fruit and vegetable intensiveprocessing machinery. It is specialized in manufacturing the devices and production lines of the cutting, cleaning,baking, choosing fruits and vegetables. The company has been growing through three stages since established in 1997:Xinghua VegetableDehydrating Machinery Factory, Xinghua Ligong Vegetable Machinery Ltd. and Jiangsu Ligong Fruit andVegetable Machinery Ltd. The registered capital is now 7.5million RMB, the fixed assets is 50 million RMB.The factory now occupies a boundary of 20000m2Japan.Our has independent export right The sales of products are spread all over china, expanding to Southeast Asia, Europe and America. "Ligong"and the graph trademark was authorized by the National Industrial and Commercial Brand Bureau.It was also honored with "Famous Trademark of Taizhou"\" famous trademark in jiangus" and" Famous Brand Product of Jiangsu Province",the high-tech enterprises in jiangsu continuous access to Credit Units and the Contract and keeping promises Enterprises such as the honorary . Technological innovation is the original motivation to the improvement of the enterprise. It focuses on thecommercialization of the research achievements, and the research and development of new technology and new products. It has established long-term cooperation with academic institutions like Jiangsu University, Jiangnan University, Nanjing Institute of Global Exploitation of Wildness Plants, Xinjiang Agricultural research Institute,and some international enterprises from Italy and New Zealand. Technical researches via the cooperation help gathering abundant in formation and technical stretch for the company's sustainable development. In collaboration with Jiangsu University, the company undertook a Jiangsu Science and Technology Supporting Plan "Key Technology and Product Development of 3-dimentional Fruit and Vegetable Cutting Machine".A new fruit and vegetable cutting machine typed 6XQ3-400 was developed as a successful achievement of the project. It won the three prize of provincial science and technology achievement It was checked and accepted by Jiangsu Science and Technology Bureau, and was appraised by the China Machinery Industry Federation."FoodMachinery Institute of Jiangnan University and Xinghua Ligong" was established under the cooperation with Jiangnan University the formation of jiangsu university business graduate workstation Aiming at the international leading level of agricultural products processing machinery. devotes itself to establishing a R&D center of Fruit and vegetable processing machinery of domestic advanced level, constructing an independent technological innovative entity with multi-functions of product approval, standard making andtalent cultivation.
