Automatic SCG110 automatic chewing gum packing machine,China Suntech price supplier

Automatic SCG110 automatic chewing gum packing machine

FOB Price:Price can be negotiated

Production Capacity:20 Set/Sets per Month

Payment Terms: US $15,000 - 50,000 / Set

Update Time:2014-09-24

Contact Supplier

Product Description

1.SCG100 Chewing Gum wrapper
2.PLC controlling system
3.Speed:110-130 sticks/min
4.4-10 grains/stick

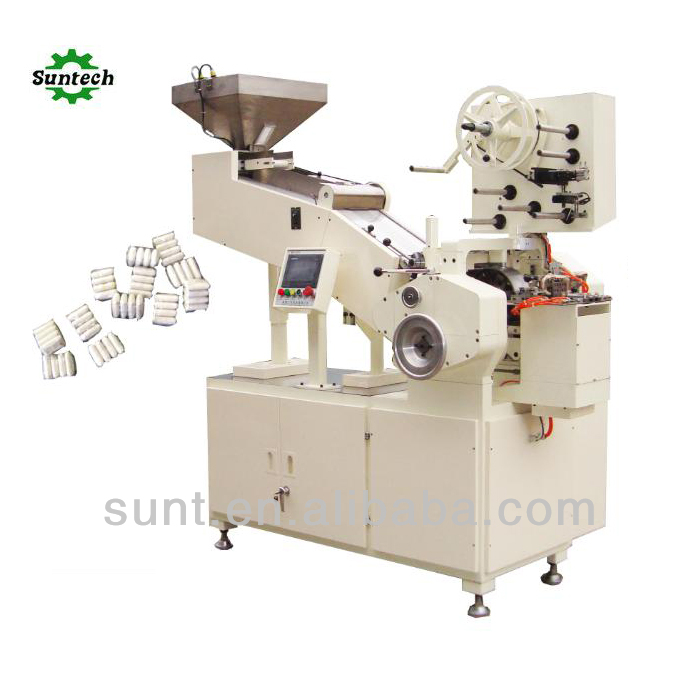

SCG110 Chewing gum stick packing machine

Main Technical Parameter:

Packaging speed	110~130sticks/min
Total power	2KW AC380V
Weight	2500KG
Control system	PLC , Touch screen , frequency converter , Photocell , Mechatronics.
Overall dimensions	2400 * 1300 * 2200mm (LWH)
Working condition	T emperature : 18~21°C;humidity : 45~55%

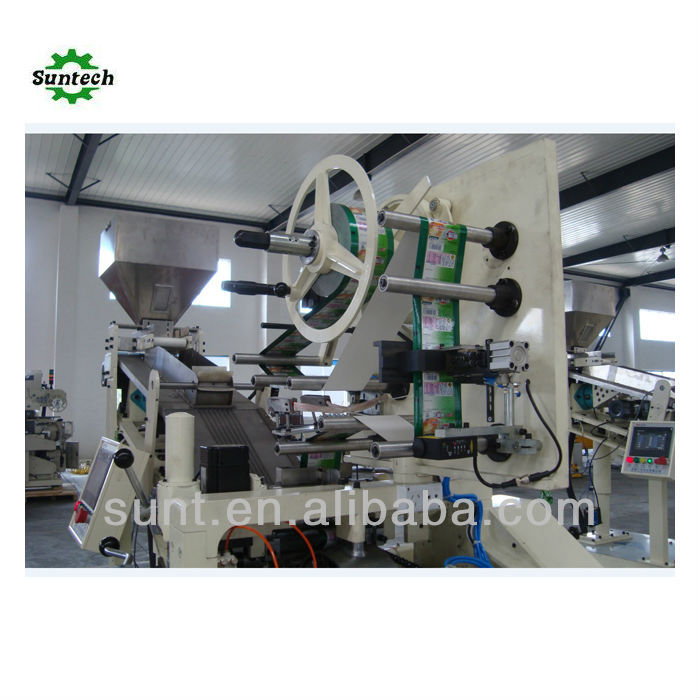

Packing materials specification and requirements	Out paper reel	Max dia. : φ350
		Width : 54-174mm
	Installation Core d ia .	76mm

Characteristics and performance:

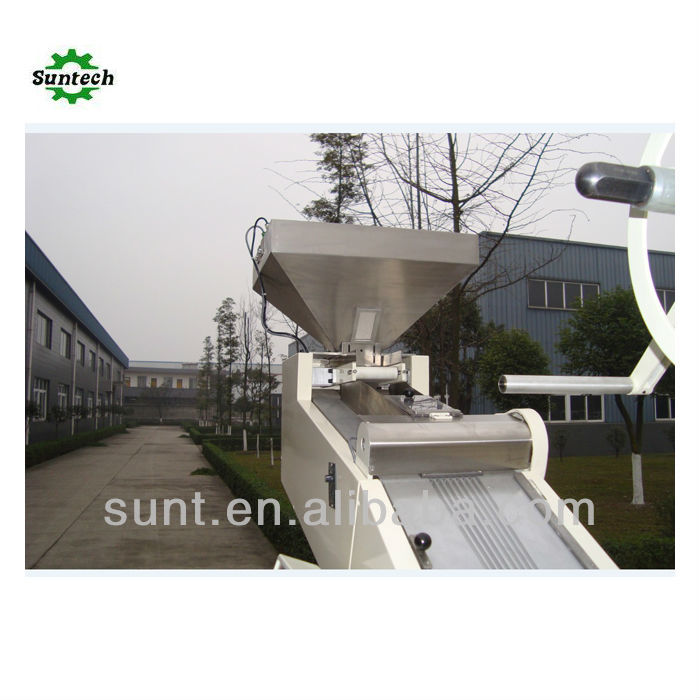

Th is mach ine includes the feeding machine and packing machine. The feeding machine will align the chewing gum grain from the hopper into a line in the feeding tunnel by electromagnet vibrator and then send these

chewing gum grain into the packing machine. The packing machine takes these chewing gum and packs

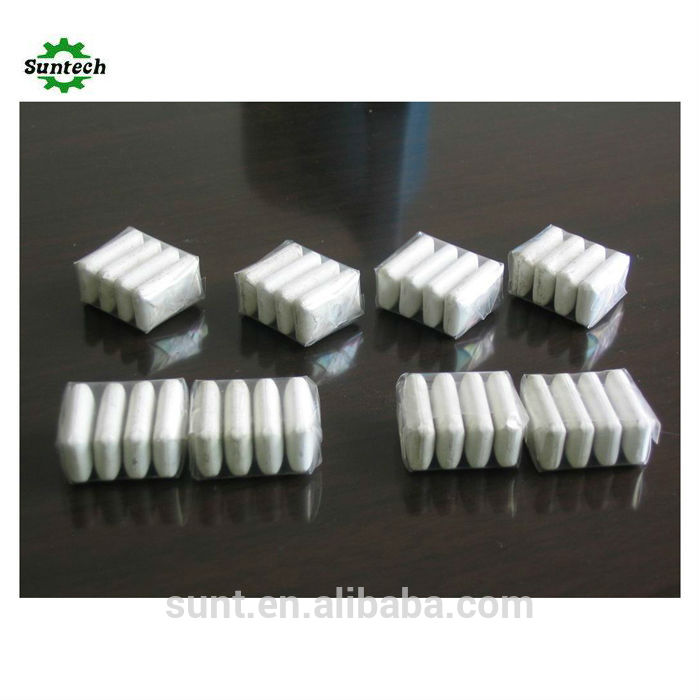

4-10 chewing gum grain into a stick with one paper. The biggest advantage of this machine is that the

dual-tunnel for feeding an d package machine is adopted. Thus the packing speed is improved greatly.

The performance of this machine is steady and reliable under running.

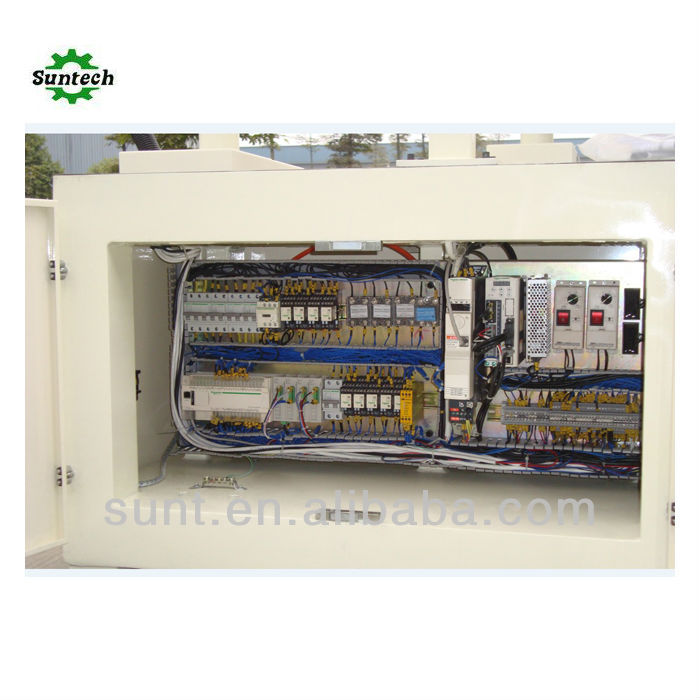

This machine adopts excellent electric appliance, PLC control system, a frequency converter for infinite speed adjustment, photocell system and automatic compensating function with servo motor for accurate cutting of the outer paper, operator-machine interface for setting, amending and saving all parameters during running.

The protection covers are used in the mechanical driving parts. This machine is designed for massive

production of chewing gum sticks in the food industry.

Type:	Packaging Machine"> Multi-Function Packaging Machine	Condition:	New	Function:	Filling,Wrapping,Sealing
Application:	Food,Beverage,Commodity,Medical,Chemical,Machinery & Hardware,Apparel,Textiles	Packaging Type:	Bags,Film	Packaging Material:	Plastic
Automatic Grade:	Automatic	Driven Type:	Electric	Voltage:	380V
Power:	2KW	Place of Origin:	China (Mainland)	Brand Name:	Suntech
Model Number:	SCG110	Dimension(LWH):	240013002200mm(LWH)	After-sales Service Provided:	Engineers available to service machinery overseas
chewing gum packing machine:	chewing gum blister packing machine	automatic chewing gum packing machine:	bubble gum packing machine	gum stick packing machine:	gum packing machine
chewing gum wrapping machine:	SCG110 Chewing gum stick packing machine	Packaging speed:	110-30sticks/min	Total power:	2KW
Weight:	2500kg	Control system:	PLC	Overall dimensions:	240013002200mm(LWH)
