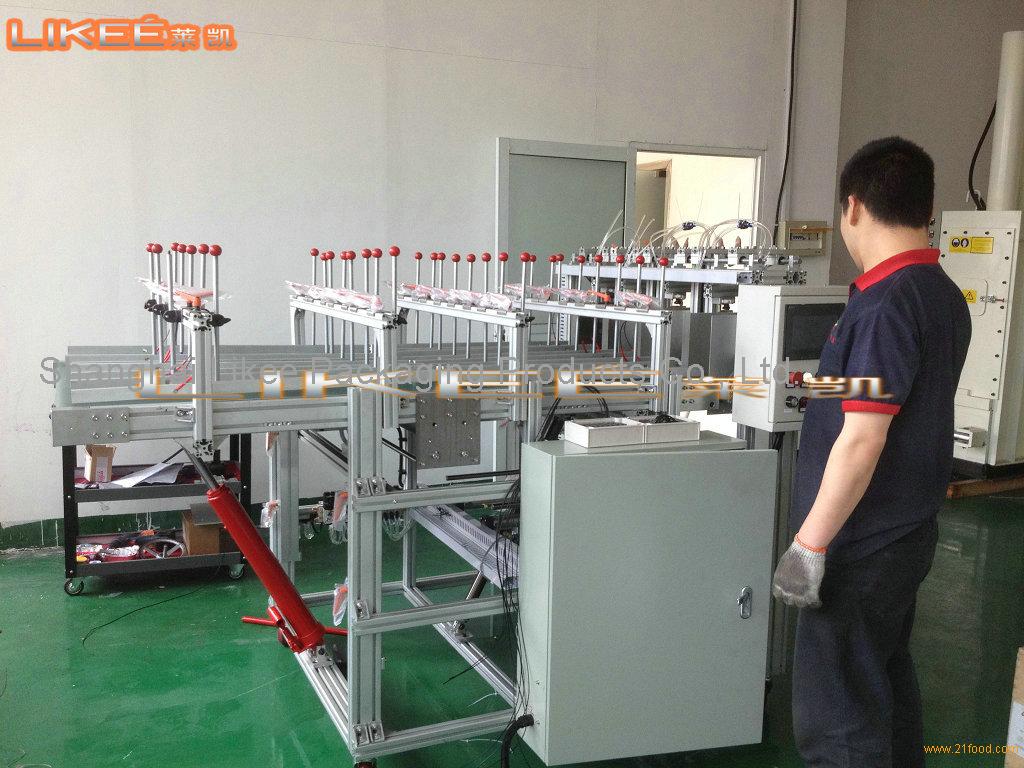

Automatic Stacker With 4 Ways S-1000

FOB Price:Price can be negotiated

Production Capacity:18 lines/years

Payment Terms: FOB/CIF

Update Time:2022-05-09

Contact Supplier

Product Description

LK-T63 Configuration:

Decoiler 800

Press 63 Tons With Electronic Feeder

Stacker 3 Lines

Electronic Control Panel And Pneumatic Control Units

Scrap Foil Collection System

Molds

LK-T63, the fully automatic Aluminium Foil container machines, is the latest development in our company. The complete equipment includes: decoiler, press, stacker, scrap foil collection system etc. Configured with electronic components imported from famous brands like Siemens, Mitsubishi etc., the whole machines adopt advanced designs and perfect processes, which are equipped with advanced intelligent systems to realize the whole machine linkage control.

LK-T63 is currently the most advanced aluminium foil container making machines in China, well known for their high degree of automation, less failure, safety and steadiness, high efficiency and easy operation.

Specification:
1. Raw material: Alloy 8 Series & 3 Series.
Aluminum foil thickness: 0.0380mm~0.250mm,
2. Japan Inverter, PLC and 10inch touch screen control system;
3. Max. width of Aluminum foil: 800mm;
4. Max. diameter of Aluminum foil: 700mm;
5. Air Shaft Roller: 3 inch or 6 inch
6. Working speed: 35-70 times/min;
7. Total Power: 12.5kw;
8. Compressed air needed: 0.5- 0.8 Mpa, 0.2m3/min;
9. Install dimension: 5800*2600*3100mm;

Technical Data:
Max. container size: 550*400*94mm;
Slide block stroke: 180-260mm;
Slide block dimension: 380*145mm;
Work plate dimension: 1200*900mm; 2plate thickness 100/50mm;
Mould handle hole dimension: 50*60mm(Diameter*Depth);
Total line size: 5800*2600*3100mm;
Power: 3P, 380V, 50Hz / 220V, 60Hz;
Net weight: 9, 000kg.

Automatic Stacker With 4 Ways S-1000
