Horizontal Static Water Immersion Retort Sterilization Machine
Features:
1. Uniform heat distribution and no blind angle for sterilization;
2. Preheat the process water in the upper storage vessel in advance, shorten the sterilization time and improve the working efficiency;
3. Process water can be used repeatedly, saving energy, time, manpower, and reducing the production cost;
4. Short process time and high temperature preserve food flavor and nutrition;
5. Perfect pressure control system, efficiently avoiding the containers deformation and package break;
6. Continually monitor the temperature inside the retort, keeping the temperature difference ±0.5 ℃;
7. Siemens PLC automatic control system and touch screen, easy to operate;
8. System will make alarm calls automatically when the temperature, the pressure, the water level, or any other kinds of error occur.
Applicable Scope:
1. Canned Containers: tin can, aluminum can
2. Plastic Container: PP bottle, HDPE bottle
3. Soft package: Aluminum foil bag, transparent bag, vacuum bag, retort pouches, doy-packs, etc..
Description and Working Principle:

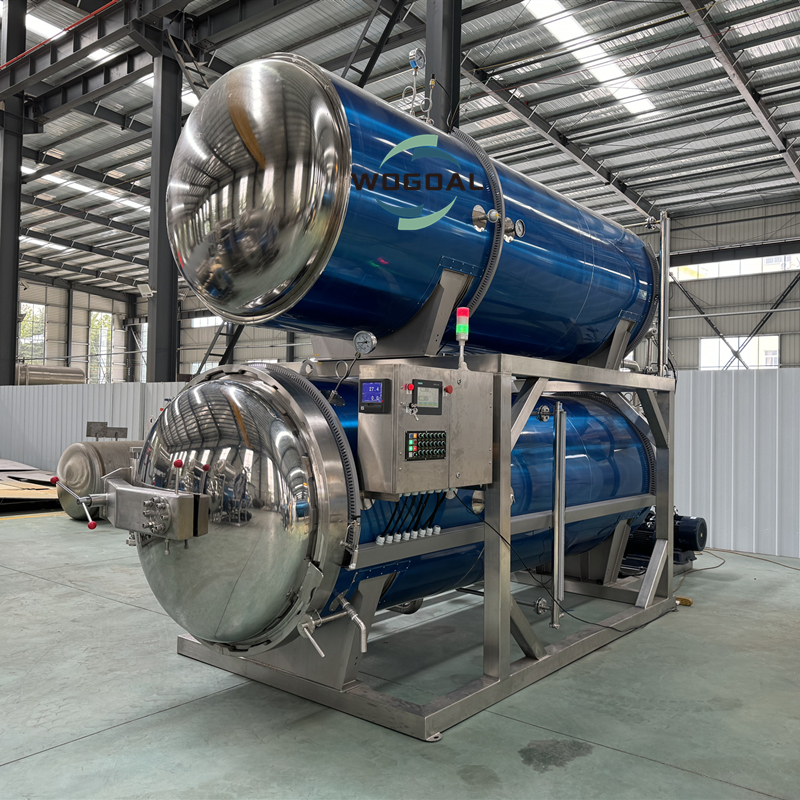

Water Immersion Retort is usually composed of upper vessel and lower vessel. The top one is used to store preheated process water and recycle the hot process water before cooling process. The bottom one is the retort for sterilization.
After the food containers were loaded into the baskets and enter the retort, the preheated process water is delivered into the retort through water spreader on the top of retort, the water level was controlled and monitored by water level gauge outside the retort.
The steam enter the retort through the water spreader or additional steam spreader and heat the process water continually until the temperature rise to scheduled sterilization temperature.
The circulation pump recycle the hot water with a high speed and assure the uniform heat distribution inside the retort.
After the sterilization is completed, the hot water will be recycled to the top tank and stored for next batch sterilization. Then the cooling water will be filled into the retort directly to make the food container cool down.
Technical Parameters:
Model No. |
Outside Dimension(mm) |
Inner Diameter |
Chamber Length |
Capacity |
Body Thickness |
Max Working Pressure |
Max Working Temperature( o C) |
Weight (Kg) |
Installed Power |
Voltage |
||
Length |
Width |
Height |
||||||||||
WG.10-1.B.3 |
2300 |
1200 |
2730 |
1000 |
1000 |
1050 |
4 |
0.3 |
145 |
1120 |
6 |
380 |
WG.10-2.B.3 |
3400 |
1200 |
2730 |
1000 |
2000 |
1800 |
4 |
0.3 |
145 |
1920 |
9 |
380 |
WG.12-2.B.3 |
3520 |
1300 |
2960 |
1200 |
2000 |
2650 |
5 |
0.3 |
145 |
2320 |
14 |
380 |
WG.12-3.B.3 |
4500 |
1300 |
3140 |
1200 |
3000 |
3740 |
5 |
0.3 |
145 |
2920 |
17.5 |
380 |
WG.12-4.B.3 |
5620 |
1300 |
3340 |
1200 |
4000 |
4800 |
5 |
0.3 |
145 |
3120 |
19.5 |
380 |
WG.13-4.B.3 |
5820 |
1600 |
3645 |
1300 |
4000 |
5620 |
5 |
0.3 |
145 |
3320 |
23 |
380 |
Those retort sterilizers in the chart are standard configurations.
We also can customize the retort machine according to your specific requirements or your drawing.
Delivery:
Before delivery, our professional technician will do trial run for each product to check until everything is functional, you also can come to our factory and test our machine together with us.
We will deliver your goods by LCL/20'FCL/40'FCL depending on your order.

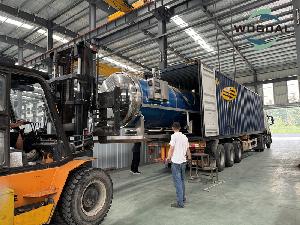

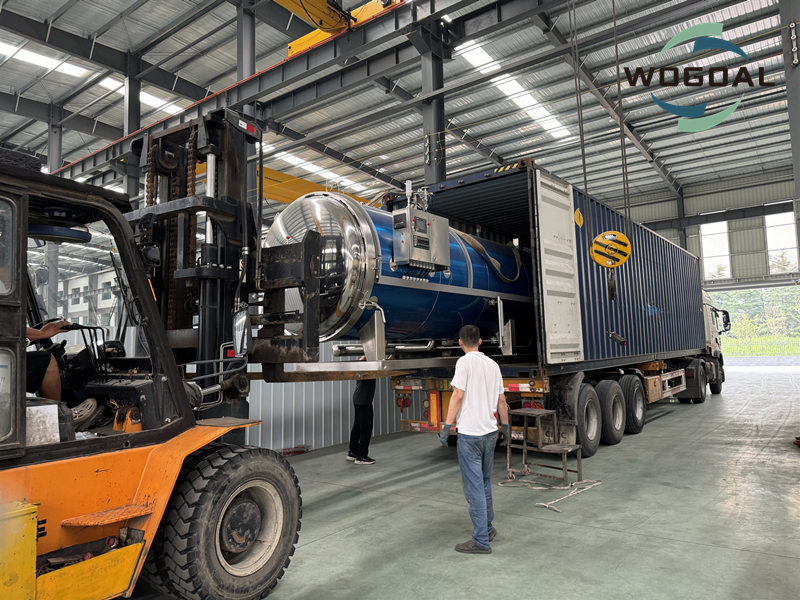

When loading, our workers will fix the retorts tightly with wire rope so that the retorts can't move in the container.
If you are interested in our products want to consult us, pls feel free to let us know at any time, we will be very glad to serve you. Welcome to visit our factory in Zhucheng City of China.
Shandong Wogoal Machinery Co., Ltd. is the leading supplier of retort sterilizing equipment in food industry in China. Our retort product is suitable for canned food, meat product, fruits &vegetables, sweet corn and other ready to eat food sterilization. The food can be stored for a long shelf life without preservative, it also can help you get good quality, nutrition and taste in food products. We have several types of automatic food retort sterilization equipment such as automatic hot water spray retort sterilizer, automatic hot water immersion retort sterilizer and steam retort sterilizer,ect. The packages our retort sterilizers can be applied for are tin can, glass jar, plastic bottle and pouches, vacuum bag, etc..
Our Machine is equipped with components made by the world well-known companies (SIEMENS, MITSUBUSHI, SMC, etc.) and humanized HMI and have long life service. Due to high quality and service, now we have established good business relationship with customers from all over the world.
And expect for retort, our company also manufacture jacketed cooking kettles, vacuum packing machine and other food processing machine.
If you feel interest and have any questions about our products and company, just feel free to contact with me. Thanks a lot
Warmly welcome you to visit us and inspect our factory in Zhucheng City of China.
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
