Food online > Products > Food Processing Machinery > Packaging Machine >

Automatic Sticky Liquid Packaging Machine,China TSE price supplier

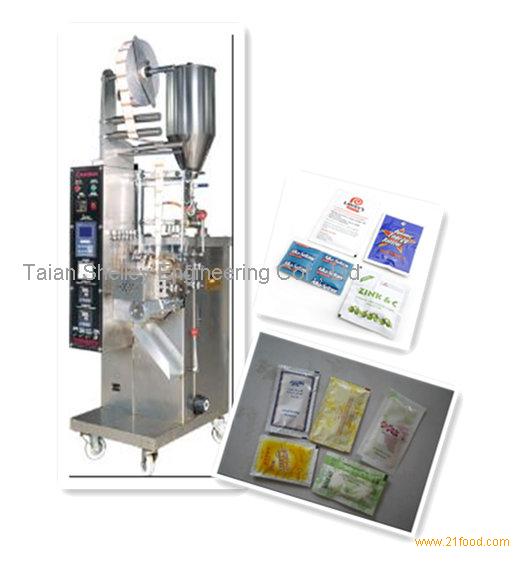

Automatic Sticky Liquid Packaging Machine

FOB Price:Price can be negotiated

Production Capacity:100/MONTH

Payment Terms: TT/LC

Update Time:2023-04-26

Contact Supplier

Product Description

Applications:
1.The machine is suitable for packaging of soft pouch liquid, which enjoys the character of wire drawing phenomenon, such as juice, drinks, vinegar, food seasoning, shampoo, milk, medicine liquid..-etc.

2. The process of bag making, measuring, filling, sealing, cutting and counting can be done automatically.

3. Packing material include several kinds of heat-seal lamination, such as PET/plated AL/PE, PET/PE, NYLON etc.

Features:

1. All stainless steel cover meets to GMP standard.

2. Equipped with antipollution and dustproof device.
3. Automatic adjustment of pouch size and filling range.
4. Photocell controller is easy to manipulate.
5. Automatic self support lubricating system, the machine can work 24 hours and the maximal capacity is 110 bags/min.
6. The operation facility is controlled by American Intel computer, all function is displayed with digital screen.
7. Minimum sealing temperature variation employs PID temperature control, the tolerance is controlled by ± 2%.
8. Along with automatic assembling no packing alarm system, help user to economize cost.
9. Equipped with easy open system.
10. Ink printer and Conveyor are as an option.

11. The particular point of the machine have a function of back absorption which guarantee the sealing area very clean.

Technical Data:

Item	TSE-DXDY2-40II	TSE-DXDY2-150II
Bag size	(L) 55-110mm/(W)30-80mm	(L) 70-150mm/(W)70-115mm
Capacity	30-100 bags/min	28-80 bags/min
Filling range	40ml (max)	150ml (max)
Power	220V,50HZ,1.5KW	220V,50HZ,1.9KW
Weight	320 KG	340 KG
Dimension	6007901780mm3	7008001900mm3

Other Products

Sugar Powder Packing Machine

Automatic Pillow Packing Machine

Tea Packing Machine

Coffee Packing Machine

Company Profile

Name: Taian Shelley Engineering Cor., Ltd

Main Products: packaging machine,tea bag packing machine,food packing machine

Business Type: Manufacture

Total Employees: 50 ~ 100

Total Annual Revenue: US$1 Million - US$2.5 Million

Main Markets: Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe,

Address: Greatwall street, Tai'an City, Shandong Province, China

Tai'an Shelley Engineering Cor., Ltd, located in Taian, Shandong Province, China, is a company incorporating design, manufacture, service and supporting a complete line of machinery for powder, granular and sauce material packing demands. The machinery is widely used in the packaging of food Products, pharmaceuticals, chemicals, cosmetics, etc. Till now, Machinery has been sold to more than forty countries in the world.

The major Products include:

1. Combined Weighing Full Automatic Packing System

2. Solid Measuring and Packaging Production Line

3. Semi-auto Packaging Machine Combined by Chain

4. Volume Metering Auto Packaging Machine

5. Spiral Powder Full Automatic Packing System

6. Automatic Miniature Vertical Packing Machines

7. Automatic Multifunction Pillow Packing Machine

8. Rotary Pillow Packing Machine

9. Down-paper Pillow Packing Machine

10. Fully Automatic Weighing and Packing Unit

11. Double-Hopper Automatic Weighing and Subpacking Unit

Based on our tenet of "straight-out management notion, outstanding quality products, and favorable after-sales services", we have gained extensive recognition among our customers from at home and abroad and built up long-term relationships with them..

We promise to offer the best quality products, the most reasonable price and the most professional and quickest after-sales services for our clients! We are looking forward to establishing relationships with you in the near future.
