Automatic Tin or Jar Filling Machine (1-500g),Powder Filling Machine,Auger Filling Machine,China DAHE price supplier

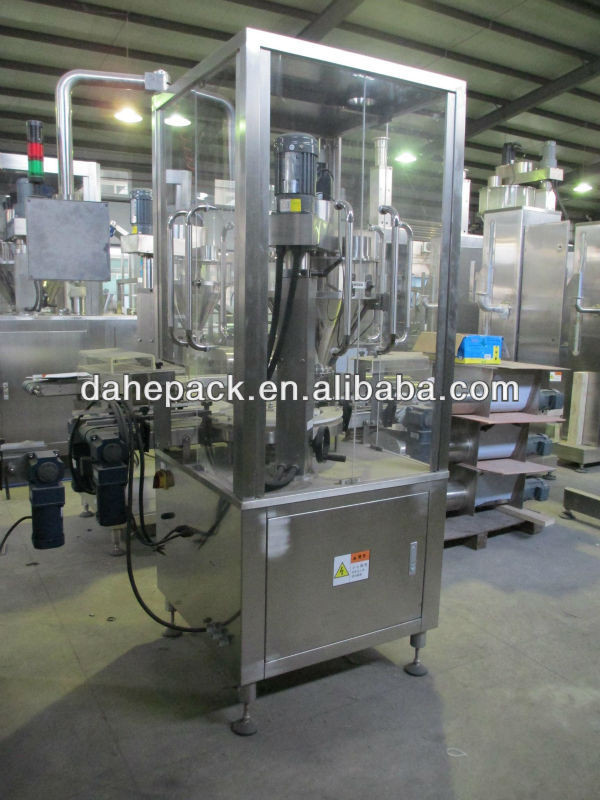

Automatic Tin or Jar Filling Machine (1-500g),Powder Filling Machine,Auger Filling Machine

FOB Price:Price can be negotiated

Production Capacity:10 Set/Sets per Month

Update Time:2022-03-09

Contact Supplier

Product Description

1:Fill weight: 1-500g
2:Container Dimension: Dia 20-85mm H 15-150mm

Introductions:

This series could do work of measuring, can holding, and filling ,etc, it can constitute the whole set can filling work line with other related machines, and suitable for filling kohl, glitter powder, pepper, cayenne pepper, milk powder, rice flour, albumen powder, soy milk powder, coffee powder, medicine powder ,additive, essence and spice, etc.

Specifications:

Model	DCS-2A-2
Measuring mode	Auger filling with check weigher feedback
Container Size	φ20-85mm H 10-150mm
Packaging Weight	1– 500g (With different sets auger tooling)
Packaging Accuracy	≤ 100g , ≤±2% ; 100 – 500g , ≤±1%
Filling rate	20 - 50 can/min
Power Supply	3 Phase 380V 50Hz
Air Compress	6 kg/cm 2 0.1m 3 /min
Total Power	1.8KW
Total Weight	250kg
Total Dimensions	1000×720×1800mm
Hopper Volume	35L

Features:

1: SS304 contact parts

2: Auger filling driven by servo system to assure high filling accuracy.

3: With check weigher and reject station to sort out under/overweight filled container.

4: Siemens PLC and touch screen form a stable control system.

5: Servo control turntable to assure a stable containers feeding for filing.

6:Filling Head Height Adjuster and different specification star wheel to accomodate varied containers dimension.

7: 10 product memory storage for future use.

8: Custom-made auger tooling to fit different filling weight and powder characteristics.

Type:	Filling Machine,General	Condition:	New	Application:	Food,Medical,Chemical
Packaging Type:	Cartons,Cans,Bottles	Packaging Material:	Plastic,Glass,Wood	Automatic Grade:	Automatic
Driven Type:	Pneumatic	Voltage:	3p 380/220v 50/60hz	Power:	2.3kw
Place of Origin:	Shanghai China (Mainland)	Brand Name:	DAHE	Model Number:	DCS-2A-2
Dimension(LWH):	10008001900	Weight:	300kgs	Certification:	ce
After-sales Service Provided:	Engineers available to service machinery overseas	Usage:	Outer
