automatichard candy lollipop production line,China ORANGE price supplier

automatichard candy lollipop production line

FOB Price:Price can be negotiated

Production Capacity:1000 Set/Sets per Year

Payment Terms: US $8,000 - 28,000 / Set

Update Time:2014-09-25

Contact Supplier

Product Description

lollipop Production Line
1.high quality, stainless steel.
2.high exported.

Automatichard candy lollipop production line

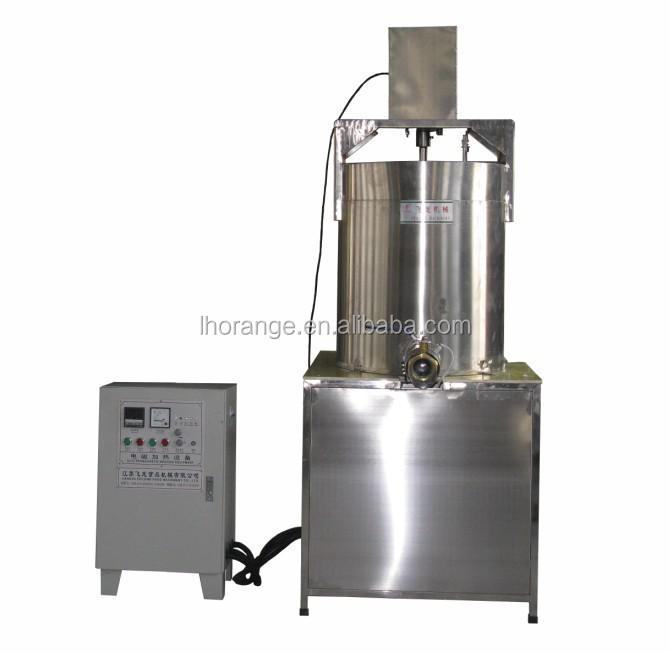

1. Electromagnetic Cook

Specification :

high thermal efficiency, long service life, high boil sugar speed.

Technical parameter

Production capacity :60 kg / 20~25min

power: 40 KW

External dimensions (mm): 800×800×2000 , 450×350×700

Weight: 300kg

2. Cooling platform

Description: It is used for cooling the sugar after cooking by circulating water.

Parameters

External dimensions (mm) : L × W × H 1800*1000*600

Weight:450kg

3.OR D-60 Ball lollipop production line

This production line is a professional machine of ball lollipop. Composed of thermal rolling bed, thermal bar drawing machine, lollipop forming machine and cooling screens, it can make ball, mushroom, cone, cylindrical, rectangular, binary colors, multicolor or sandwich lollipop. All kinds of styles and shapes can be made according to customer requirement.

Parameters:

Name	Power	Weight:	External dimensions	Production capacity
The batch roller	4.75	450	2100×600×1150	2.5-4 tons / 8h
The rope sizer	3.3	430	1400×800×1300
OR D-60 ball lollipop forming machine	2.2	1100	1500×1000×1200
The climbing conveyor	0.55		3300×400×600
Five layers shaker cooler	1.1	400	2600×1300×2200

4. Ball lollipop packing machine

Description:

It is an ideal machine for packing ball lollipop. Featured with logical structure, easy operation, good sealing etc., FLD ball lollipop packing machine is mainly composed of automatic sorting device, packing paper color code auto tracking system, standard tongs, lollipop conveyer chain, paper packing device, packing knot and rotating plate device, heat sealing knotting device. With state-of-art technology, stable performance, high performance cost rate, this machine can not only reduce labor cost, but also increase the sanitary standard and packing quality of candy, considerably increasing the production efficiency of the enterprise. The color code tracking system of trademark corrector is controlled by microcomputer, and is featured with correct and reliable operation, coordinated acting on paper feeding, wrapping paper, heat sealing, knotting etc. The packed lollipop is good looking, neat and good sealing. The electric control system is equipped with photoelectric tracing circuit. When there are no candy at the start of the machine, the paper is

stopped at same time, so that no paper is wasted. The candy can be packed properly even in case of curled paper. Step motor is used so that the paper feeding speed can be changed automatically according to the speed of the machine. With imported converter, PLC, rotary encoder, photoelectric switch and man machine interface, the machine is people oriented design, easy operation and convenient repair.

Parameters:

Power of main motor: 0.75kw 380v

Power of brushing motor: 4×60w 380v

Power of paper feeding motor: 0.2kw 220v

Heating sealing pipe: 0.15kw×6 24v

Air pressure: 0.2-0.5Mpa

Output (According to standard shape candy): 1000-2000kg/8h

External dimensions (mm): 2500×900×1500

Weight (kg): 120kg

Final products

Condition:	New	Place of Origin:	Henan China (Mainland)	Brand Name:	Orange"> ORANGE
Model Number:	OR-01	Application:	Candy	Voltage:	220V
Power(W):	1.45KW	Weight:	120KG	Dimension(LWH):	6004001300mm
Certification:	iso,CE ISO	Warranty:	one year	After-sales Service Provided:	Engineers available to service machinery overseas
TYPE:	lollipop production line	MATERIAL:	STAINLESS STEEL
