Best parameters determination of heat seal tester of plastic films and aluminum fiols,China SYSTESTER price supplier

Best parameters determination of heat seal tester of plastic films and aluminum fiols

FOB Price:Price can be negotiated

Payment Terms: Negotiation

Update Time:2021-04-08

Contact Supplier

Product Description

Applies to best parameters determination of heat seal ability of various kinds of film. Heat seal ability of film depends on temperature, pressure and heat time and the HSL-6001 heat seal tester SYSTESTER is widely used in food and pharmaceutical packaging industries.

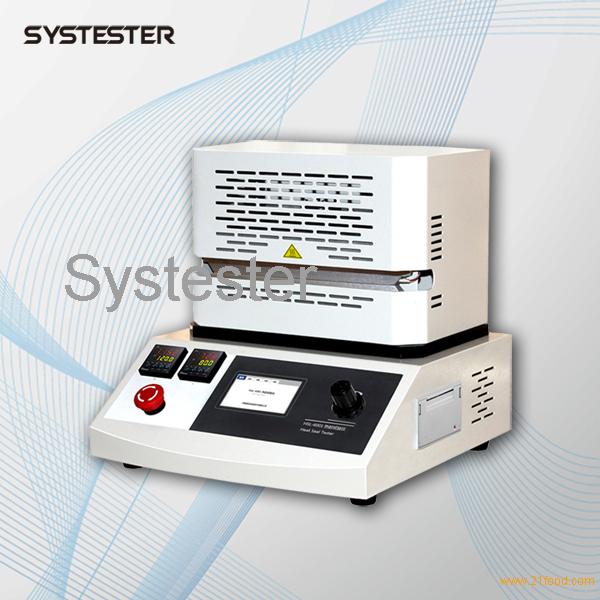

HSL-6001 heat seal tester SYSTESTER

HSL-6001 best parameters determination of heat seal tester of plastic films and aluminum fiols Main Features:

1: Patent technology ,Embedded system control, Touch screen operation

2: TFT LCD display, UI flattening design, easy to operate

3: Dual heat jaws, temperature controlled independently

4: Pressure easy to adjust, and wide range.

5: Emergency stop button, safety design to prevent burns

6: Over temperature protection, over pressure protection

7 Micro-printer built in

8: DB9 RS232 communication port.

Best parameters determination of heat seal tester of plastic films and aluminum fiols

HSL-6001 best parameters determination of heat seal tester of plastic films and aluminum fiols Technical indexes

Heat temp.	8~300°C
Accuracy	0.2°C
Dell time	0.1~999.9s
Pressure	0.05MPa~1.1MPa
Heat surface	265mm × 12 mm（optional）
Heat mode	independently
Gas source pressure	0.05MPa ~ 1.1MPa (provide for yourself)
Gas source interface	Ф6mm
Outer dimension	410 mm (L)×396 mm (B)×416mm (H)
Power supply	AC 220V 50Hz
Net wt.	41kg

HSL-6001 best parameters determination of heat seal tester of plastic films and aluminum fiols Standards

QB/T 2358(ZBY 28004)、ASTM F2029、YBB 00122003

HSL-6001 best parameters determination of heat seal tester of plastic films and aluminum fiols Configuration

Delivery: main unit, footswitch, micro-printer

Optional: matched software ; communication cable ;DSM LMIS
