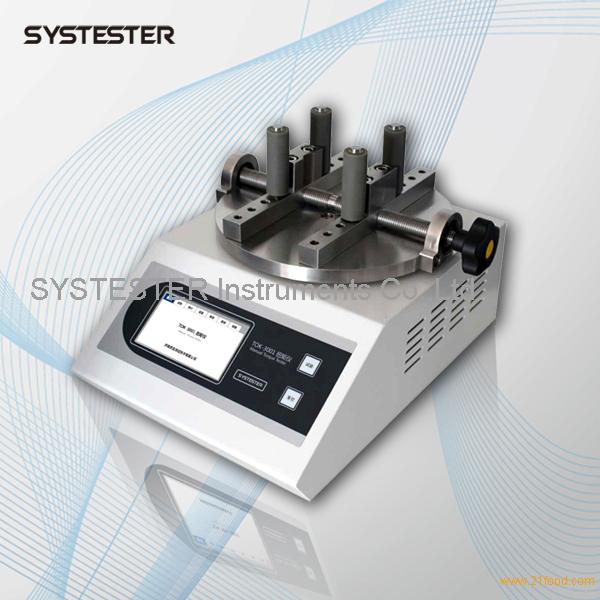

Beverage and tablet bottles torque tester,torque force testing machine application:
Torque tester is used for evaluating the torque retention of continuous thread closures on containers, and measuring the torque required to tighten or unscrew the closure from a container.
Beverage and tablet bottles torque tester,torque force testing machine main features:
1.Patent technology, Touch screen operation, Real color TFT LCD display.
2. Test result and curve display.
3. High-accuracy torque sensor inside.
4. Peak, real-time, present test mode
5. Clockwise, un-clockwise test.
6. Result with multiple units.
7. Overload warning.
8. Low power consumption.
9. RS232 communication port.
10. Professional computer software support.(Optional)
Beverage and tablet bottles torque tester,torque force testing machine technical indexes:
Range
|
20Nm,40Nm,50Nm
|
Accuracy
|
0.3
|
Reading
|
0.001Nm
|
Sample diameter
|
2~180mm
|
Power supply
|
AC 220V 50Hz
|
Dimension
|
245mm(L)*340mm(B)*238mm(H)
|
Net wt.
|
22kg
|
Beverage and tablet bottles torque tester,torque force testing machine standards:
ASTM D2063, ASTM D3198, ASTM D3474, GB/T 17876, BB/T 0025
Configuration
Delivery: mainframe ; micro-printer
Optional: Professional computer software, communication cable.
