black pepper drying machine,China Sanshon price supplier

black pepper drying machine

FOB Price:Price can be negotiated

Production Capacity:10 Set/Sets per Month

Payment Terms: US $2,861 - 5,127 / Set

Update Time:2022-09-14

Contact Supplier

Product Description

Black Pepper drying machine
1,easy operation
2 good flexibility, practicality
3,wide application
4,good hygienic condition

STJ series steam black pepper drying machine

Product Description

Application

Chili drying machine is designed to meet the requirements of export-aimed Dehydrated Vegetables and fruits. It has a wide application, is suitalbe for all kinds of products especially for those viscous products or products containing sugar.

Working principle

After normal temperature air passed through the heat exchanger, it is changed into the high temperature dried hot air. Under the function of air blower, the materials/products are fully contact with hot air and completely heated, so as to achieve drying.

Controlling way

It has two controlling ways. It can be controlled both automatically and manually. While the automatical valves are off working, the manual valve will play an indispensable role.

Main technical parameters

overall dimensions: 3600*2000*1585mm

blast volume: 9700m ³ /h

blast pressure( blower fan) : 774pa

power (blower fan) :4.0Kw

quantity( blower fan) : 1set

steam consumption: 150~200kg/h(≥0.4mpa)

drying area: 4m ²

drying capacity: 50 KgH ₂ O/h

temperature: normal temp.~110°c (controlled both automatically and manually)

Model	Overall dimension (mm)	Power (kw)	Capacity ( kg/batch )	Consumption	Blast volume (m3/h)	Temperature ( °C )
STJ-I	360020001585	4.0	250	150-200 (kg/h, steam peak value , ≥0.4mpa )	9700	Normal temp.-110 (manual or automatic control)
STJ-A	317031601000	2.2	250	7-10L/h (oil consumption)	4890	Normal temp.-110 (manual or automatic control)

Model

Overall dimension

(mm)

Power (kw)

Capacity ( kg/batch )

Consumption

Blast volume

(m3/h)

Temperature

( °C )

STJ-I

3600*2000*1585

4.0

250

150-200 (kg/h, steam peak value , ≥0.4mpa )

9700

Normal temp.-110 (manual or automatic control)

STJ-A

3170*3160*1000

2.2

250

7-10L/h (oil consumption)

4890

Normal temp.-110 (manual or automatic control)

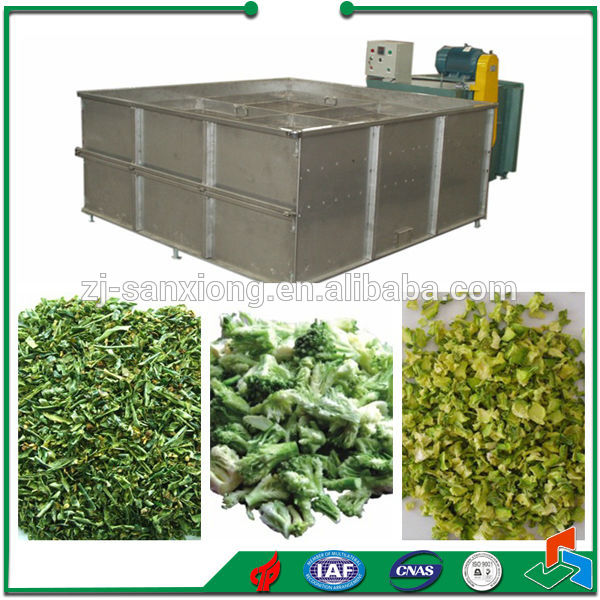

Product Pictures

Supplier

Test report

Factory S trength

Customer Together

Company Profiles

Zhejiang Sanshon Machinery Manufacturing Co., Ltd was founded in 1993, located in the most convenient transportation and prosperous economy of Yangtze River delta Shangyu city, Zhejiang. Zhejiang Sanshon Machinery Manufacturing Co., Ltd adjacent to the beauty of the CaoE river, and in less than 5 KM there are three expressways, they are Hangzhou-Ningbo (G92), Changshu-Taizhou (G15w), and 104 national road line , the HangYong high speed railway. Moreover it is less than 100 KM to Hangzhou and Ningbo airport.
It is specialized in manufacturing food processing machinery, which includes fruit & vegetable hot air drying(AD), quick freezing (IQF), vacuum freeze dryer(FD). The company passed ISO9001:2000 quality standard under the efforts of all employees. There are three equipments has been assessed as National New Product. And in 2007, Sanshon was recognized for New and High Technical enterprise in Zhejiang Province.
The company not only in r&d and manufacturing ,but also enjoy the right of import and export. And the machinery from Sanshon has been exported to more than 10 countries, including Vietnam, Thailand, Uzbekistan, Azerbaijan, Iran, Mexico, Venezuela, Peru, Australia, Cyprus, Libya, etc.
Based on more than 20 years’ experience in food process machinery manufacturing, later it established Shaoxing Sanshon Steel Co., Ltd (www.cnsxgg.com) and Shundi foods Co., Ltd(www.shundifoods.com)in Zhejiang and Shanghai. Sanshon now is capable of providing integrated services, including product consultation, design, workshop establishment, equipment manufacturing and installation, training of machine operation in the field of vacuum freeze drying machine (FD), hot air drying (AD) as well as quick frozen (IQF) machines.
Sanshon is well prepared to be a pioneer in the field of dehydration, quick frozen, vacuum freeze drying to contribute to food processing industry!
Term,Conditions

Ordering Information
Payment:
we usually accept T/T,L/C, please send email to negotiate payment term if you can not accept T/T or L/C.
Packing:
iron framework with external plywood and seaworthy package

Please send email for the extra cost of different packing

Delivery Time:
different products will spend different production period: from 30-120 days after 50% advanced payment.

For urgent order, Could be faster, please send email to negotiate

How to make an order?
1,Client make 50% deposit or open LC after receiving our PI
2,Client approve our equipment,
arrange shipment
1,Client effect balance payment before shipment
2. supplier send original documents or telex release the goods
3,quality warranty for 1 year after shipment

Condition:	New	Place of Origin:	Zhejiang China (Mainland)	Brand Name:	Sanshon
Model Number:	STJ-I	Type:	Dehydrator	Voltage:	380V
Power(W):	4.0kw	Weight:	650kg	Dimension(LWH):	360020001585mm
Certification:	ISO,CE	Warranty:	one year	After-sales Service Provided:	Engineers available to service machinery overseas
material:	stainless steel	name:	black pepper drying machine
