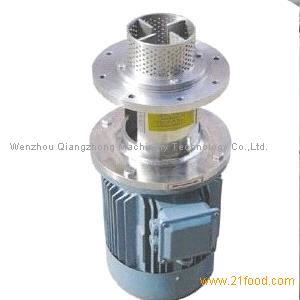

Bottom Entry High Shearing Emulsifying Pump/Kettel Bottom Mixer

FOB Price:Price can be negotiated

Update Time:2024-06-19

Product Description

Refers to the technology of FLUKO, with the application of homogeneously dispersing and emulsifying the low-viscosity emulsion, suitable for the most recipe requirement. The special Rotor and Stator produce a powerful action of shearing, grinding, impacting, turbulency, which make the emulsified particles of oil water come to be stable status(1-2um)

Installation Operation Notice:

The length of the machine is standard, if shorten or lengthen it, should be assembled separately.
Taking an optimal position in selecting the length of the machine is better to be with the Emulsifying Sink, and the best position is put into 60% depth from the surface of liquid.
In choosing the emulsifier machine, please be attention on the: capacity, viscosity,handling time, temperature,application, please letter to our Sale Department.
The bearing(in water) of the machine is a type self-lube bearing, forbidden to start the device when the liquid level is lower than that of the bearing, avoid to have a damage on the bearing.
Any revised datum is subject to the issuer, no more notice will be made separately.

Sealing Type:PTFE, Frame Sealing,dual-end mechanical Sealing
Connecting between Motor and working head: direct, and belt connecting for 18.5kw above
Varied working heads for your option
Contacting Material Part:304/316L,special material should be customized.
Available for dispersing, emulsifying, homogenizing, dissolving, Suspending
Suitable to be used in working environment of constant pressure, vacuum, pressure resistance
Available temperature:-40℃-140℃, if exceed it, it should need to be customized.
