Box quick freezer 100kg/h,China cryogenic price supplier

Box quick freezer 100kg/h

FOB Price:Price can be negotiated

Production Capacity:800sets per year

Payment Terms: EXW,FOB,CIF

Update Time:2021-12-10

Contact Supplier

Product Description

Stainless seel refrigerators / iqf freezer

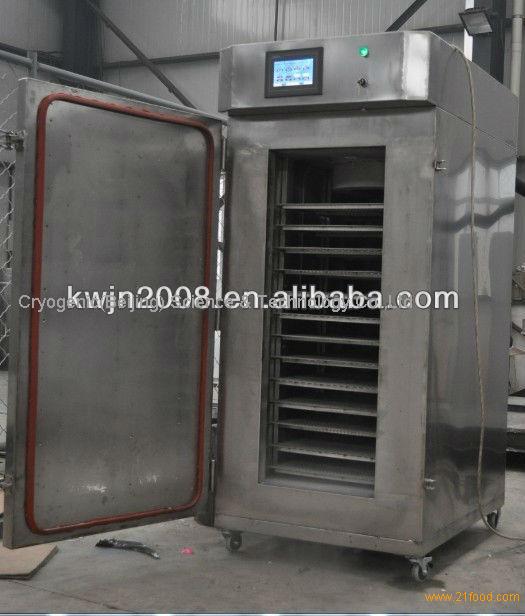

Box quick freezer 100kg/h

Quick freezer
Model: SD-G-100KG/H
Technical Parameters
Frozen quantity		100KG/H
Demension		1460x880x1860
Working temperature		+121°C~-190°C
Lowest temperature		-190°C
Maximum cooling rate		≤50°C/min
Maximum heating rate		≥ 8°C/min
Accuracy of temperature control		±1°C
Temperature uniformity		±2°C
The thickness of the insulation layer		100mm
Liquid nitrogen system		insulated pipe, the control valve, the nozzle, the dispenser
Air circulation system		motors, fans, air distribution device
Electrical control system		variable program controller, touch screen, PLC, alarm instrument AC contactor, intermediate relay, knobs switches, etc.;
Micro-pressure release valve		this valve will automatically emissions, when the cavity pressure is slightly positive pressure
Power supply		380V/50HZ

Configuration of the equipment

1.Main Body -- AISI304 stainless steel.
2.Thermal insulation material -- BASF of Germany's ultra-low temperature insulation material multi-layer composite structure.
3.Door seal -- Low temperature resistant silicone rubber imported from France,equipped with antifreeze die heating system.
4.High temperature disinfection device-- temperature up to +121 °C.
5.Efficient cleaning device-- health and safety.

Liquid nitrogen system

1. Liquid nitrogen system--- including liquid nitrogen tank (customer-supplied or optional),pressurization system, insulated pipe, control valves, nozzles, dispenser.
2.DINTOR - ASCO (imported from USA)--- ultra-low temperature solenoid valve to ensure normal opened at -196 °C;
3.Liquid nitrogen nozzles---consist of hundreds of micropores,fully gasify the liquid nitrogen, then gasification liquid nitrogen be ejected and circulated in the tank, to keep the temperature uniform;
4.High efficiency and low noise axial fan, return air distance is short, fast freeze, increased by 85% more efficient than ordinary freeze.
5.Unique wind farm design---make the wind speed and temperature of the frozen zone more uniform and stable.

Control system

1.Control mode-- Touch screen + PLC
2.Cylinder lock device-- to ensure that the door does not leak gas, and to easy to open and close the door.
3.Automatic locking function-- to ensure that the door is not open by misuse.
4.Interlock system-- if the door is not be closed well,the freezer will not work.
5.Warning system-- if the door is not be closed well,it will warn.
6.High and low temperature control-- PID regulator
7.Operating system -- English
8.Control instruments -- touch screen + PLC + instrument control mode;
9.Touch screen -- Taiwan
10.PLC -- Mitsubishi,Japan
11.Key switch -- IDEC,Japan
12.Control knob -- IDEC,Japan
13.Intermediate relay -- IDEC,Japan
14.Temperature transmitter -- PT100,Germany
15.AC contactor -- SIEMENS, Germany
16.Air circuit breaker -- SIEMENS,Germany
17.DINTOR -- ASCO,USA
