Working principle

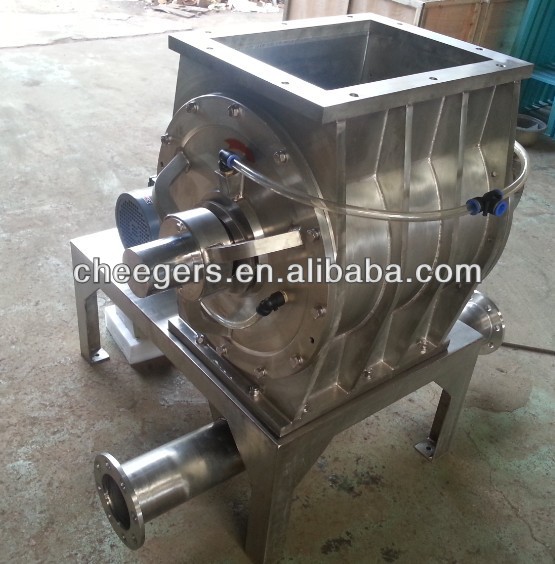

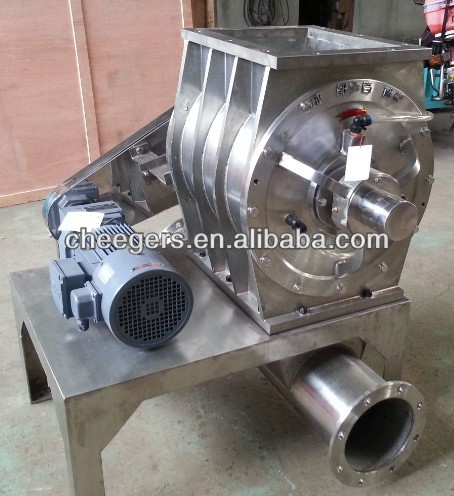

  Our standard model- BFCP drop through rotary airlock valve is widely used in most applications. It is used for conveying and feeding materials in pneumatic conveying system, it can meet the requirement of multipoint feeding in one pipe line. The drop thru equipment with high quality materials and design for heavy-duty application. Reinforced rotor and impeller ,permanently free-maintenance shaft seal and outboard bearing design, enforced air seal design can assure long time and steady operation. High precision machining with minimum leakage blow back.

This device is suited for granular materials and materials of gravity discharge ,as plastic particles, feed, Rice etc.. Special design of disturb the airflow in acceleration pipe improve the efficiency of delivery and prevent clogging. Choose our matched silo can make assure feeding steadily and continuous  .                                                                                                            Equipment Configuration And Options

• Available size 5 ″ -22 ″.

•Excellent performance in high-temperature applications up to 750°F

•E asily manages pressure differentials up to 15 PSIG .

•Full flow throat design permits maximum flow to rotor pocket.

•Brand raw materials,steel thicker 2.5 times than common steel.

•Rugged corrosion resistant stainless steel construction provides maximum structural stability

•Oversize diameter shafts for less deflection and optimum torque delivery.

•Proprietary shaft bearing seal design and minimizing gap ensure the minimum air leakage.

•Outboard rare-earth wear resistant and SKF inboard bearing design protects bearings in high-temperature applications,it can removes bearings from direct path of damaging contaminants.

•Prelubricated and permanently glandless, sleeve -style shaft seals to ensure low maintenance and prolonged life.

•Oversize clearing pipe accelerate  the handling materials.

•Super thick stainless steel support Platform maximum operating stability.

Optional :

Optional flange design : Pre-Cast flange holes with   square ,rectangle  or round flange.

Optional materials available:SS 201,SS 316L,SS 304.

Optional rotor design available:Open-End rotor,Closed-End rotor,Reinforced rotor etc.

Optional motor available:cycloidal pinwheel reducer,hard helical reducer,worm gear motor.

Optional drive arrangement :Belt drive,Chain drive,Sprocket coupling drive,Maintenance-Free totally enclosed direct drive.

Optional brand of motor:SEW Germany,Guomao China.

MOQ:1 unit

Packaging:Wooden box(optional)

Delivery term: FOB

Payment term:30% T/T in advanced

Port:Shenzhen,Guangzhou,Shanghai

Delivery time:15-30 days
