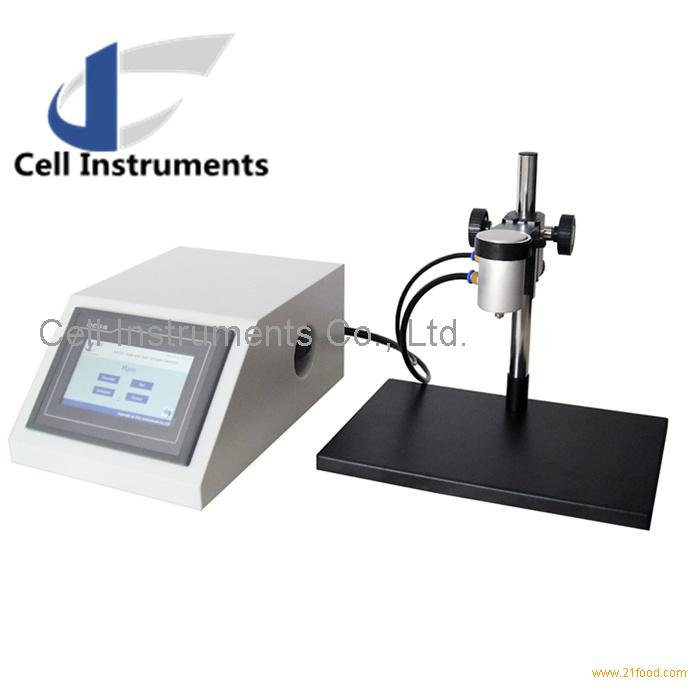

Burst and Seal Strength Tester,China Cell price supplier

The three test modes of the positive pressure method, whichBurst and Seal Strength Tester satisfies are as follows:

A.    Burst Test:  It internally pressurizes the packages until the package fails. The test pressure is the maximum pressure detected before the package fails.

B.    Creep Test:  Pressurize the package internally to a specific pressure and maintains this pressure for a specific time. The test measure is pass/fail.

C.    Creep to Failure: The package is creep-tested and held until the package fails. The pressure setting is higher than that of the creep test to ensure the package fails in some time. The measure is the time until failure.

Burst and Seal Strength Tester Technical Specifications

Pressure Range  0 ~ 600 KPa;  0 ~ 87.0 psi (Standard)

Inflating Head        Φ4mm (Standard)

Gas Pressure     0.4 MPa~0.9 MPa

1.     Three test modes of burst, creep and creep to failure are available.

2.     PLC programmable logic controller realizes precise pressure and time control.

3.     7 inch TFT touching screen for convenient parameter setting and test operation.

4.     Multiple groups of test parameters can be save to avoid repetitive setting.

5.     Test result auto statistics and storage.

6.     Program customization available.

Burst and Seal Strength Tester Standards

ISO 11607-1, ISO 11607-2, ASTM F1140,  ASTM F2054, GB/T 10440, GB 18454, GB 19741, GB 17447, GB/T 17876, GB/T 10004, BB/T 0025, QB/T 1871
