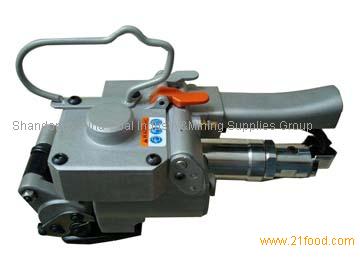

C.MV-19/25/32 P PP and PET Pneumatic strapping tool
Specifications
It is a Pneumatic PP/PET Strapping Tool
2,Applicable for both PP and PET strap
Working Process
1,A pneumatic strapping tool is for the friction hot melt type, through the high-speed friction overlapping plastic with heat bonding, so called friction hot melt.
2, Tthe compressed gas is introduced to the cylinder piston, the piston with the vibrator upper is connected by a shaft bolt. Vibrator forth vibration and friction plates are pressed together, so that the overlapping portions of the binding tape adhesive.
3, The vibrator Central has an oval hole, Fan the eccentric shaft of the motor is rotated back and forth in this hole.
4, The high-speed rotation of the air motor, maximum speed of 10,000 rpm, makes the vibrator as the pendulum general high-speed movement.
5, Under the strapping with die by the end of the triangular teeth fixed in intercourse panel; strap on vibrator triangular teeth friction generates heat as intense vibration and lower straps and adhesive.Tightening force, especially for steel, aluminum, wood, stone, chemical Fiber and other products packaged
Parameter
Item
|
Strap width
|
Strap ping thickness
|
Max tension force
|
Mpa
|
Size
|
Weight
|
C.MV-19E
|
13-19mm
|
0.5-1.2mm
|
3500N
|
0.5-0.7Mpa
|
279*150*173mm
|
3.8KG
|
C.MV-25E
|
19-25mm
|
0.5-1.2mm
|
3500N
|
0.5-0.7Mpa
|
279*150*173mm
|
3.8KG
|
C.MV-32E
|
25-32mm
|
0.8-1.2mm
|
4000N
|
0.5-0.7Mpa
|
279*150*173mm
|
4.2KG
|
