Candy Machine 3-Dimension Big Lollipop Depositing Line (GDL150P)

FOB Price:Price can be negotiated

Update Time:2014-09-24

Product Description

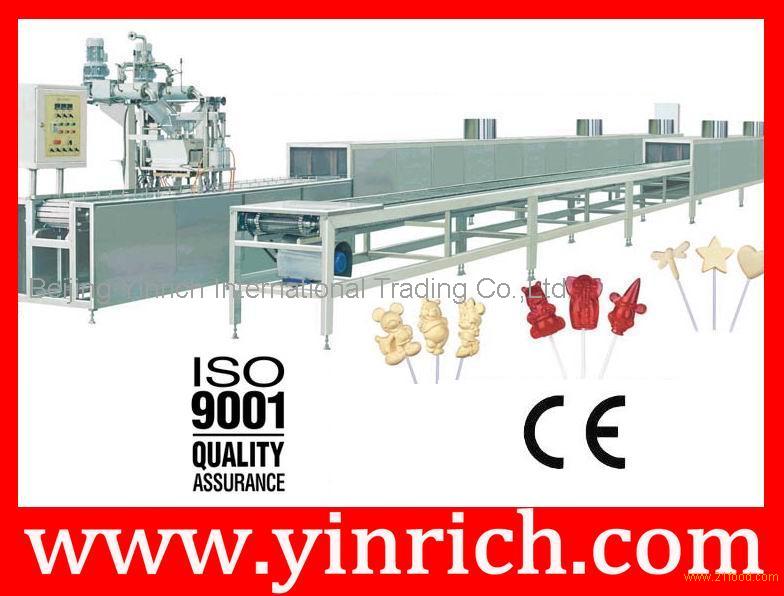

The processing(producing/production/making) line is a new type depositing production plant for making different kinds of flat-type lollipop candy. It can be used for making large grams lollipop(candy/confectionery), upto max. 40 grams/pieces. It also can make the two-color (left and right, or up and down) lollipops, central-filled lollipop, and baby-face lollipop.

COMMODITY:
GD150P deposited lollipop producing line
FEATURES:
1)PLC /computer process control available;
2)An LED touch panel for easy operating;
3)The production capacity from 150~200 kgs/h;
4)The main body is made of hygienic Stainless Steel
5)Optional (mass) flowing controlled by Frequency inverters;
6)In-line injection, dosing and pre-mixing techniques for the proportional addition of liquid;
7)Dosing pumps for the automatic injection of colors, flavors and acids;
8)Use AUTOMATIC STEAM CONTROL SYSTEM instead of manual steam valve which controls a stable steam supply to the microfilm cooker;
9)"two-color ", "central filling" lollipop candies and etc. Can be made.

Technical Specifications:

Model	GD150P
Production capacity ( kg/h)	150~200
Weight of each lollipop (g)	Max.40g
Depositing speed(n/min)	15~25n/min
Diameter of each lollipop(mm)	32mm(flat)
Length of stick available(mm)	60~100mm
Steam consumption (kg/h) Steam pressure (Mpa)	350 0.2-0.6
Electric power needed	18kw/380V
Compressed air consumption Compressed air pressure	0.20mP 3 P /min 0.4-0.6 Mpa
Conditions needed for the cooling system: 1.Room temperature(C) 2.Humidity (%)	20~25 55
Length of the whole line (m)	25m
Gross weight (Kgs)	Approx.4000
