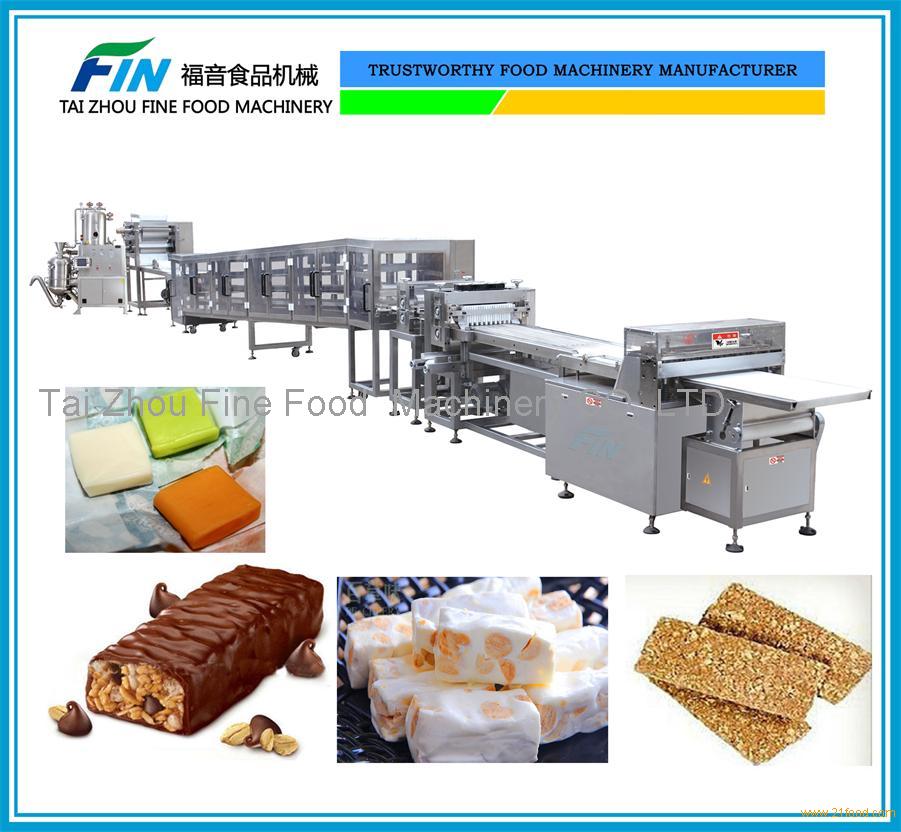

Automatic Square Candy and Nougat Producing line FQK-6000
Trustworthy Candy Production Line
High Quality Eletrical Parts Ensure the Long Service Life
Applications
This machine is applied for whole set of production line for chocolate coating candy,milk candy,sesame candy .square shape candy,nougat,swiss candy.
Through cooperating with coating machine, it can produce various kinds of chocolate compound product.
Combined Parts
-Crushing machine with ice slice
-Ice water cooling transmission cabinet
-Embossing machine
-The rope sizer
-Grain Cutting Machine
Main features
-Schneider contactor with intelligent temperature control
-Large power converyor motor ensure smooth feeding
-super cooling system to ensure the perfect shape of products
-Three servo-motor system,Six frequency converter
-Reasonable structure and convenient operation
-High degree of automation and capacity, manpower saving.
-transmisiion, forming and cooling in a continuous producing
Specifications
SINGLE ROLLER: | |
Power | 2.75KW |
Overall Dimension | 1200×1000×1400MM |
Weight | 800KGS |
COMPOUND ROLLER: | |
Cooling roller motor | 1.1KW |
Power | 6.62KW |
Outer dimensions | 1400*1340*2500MM |
Weight | 950KG |
LONGITUDINAL CUTTING MACHINE | |
Leftovers conveying motor | 2.58KW |
Outer dimensions | 2520×1390×1206MM |
Weight | 500KG |
TRANSVERSE CUTTING MACHINE | |
Power | 1.29KW |
Outer dimensions | 2000×962×1900MM |
Weight | 500KG |
Producing capacity | 600kilogram/hour |
Finished shape size | length:5-100mm, width:10-150mm thickness:5-20mm |
total power | 7KW |
voltage | 380V |
dimension | 16000mm×1000mm×1500mm |
Total weight | 2800KG |
Taizhou FINE Food Machinery Co., Ltd. is a modern and standardarized company. We design, install and sell all types of candy machines, chocolate forming machines, packing machines and food machinery. Our products are widely used in food, medical, chemical industry and they can also be applied for toys, daily commodities and hardware products. With good quality, reasonable price and perfect service system, our products earned a good reputation from our customers. We have the right of import and export and our products have been sold to Middle East, Europe, Austria, Latin America, Africa and other countries. With high efficiency customer service system, we can provide the complete service from the budget plan, product recommendation, technical support, installation, training and maintenance. This ensures the realization of customer value.
We consider customer's profit as center of our business principle and we provide the most suitable solutions for customers according to their products and their requirements. We attach great importance to the product innovation. We learned advanced technology from Europe and we developed several new types of machines, such as the full automatic feeding, forming and cutting machine, hard candy depositing line, all types of pillow packing machines, twist type machines and full automatic chocolate feeding and packing lines. With strong technology base and fully equipped testing devices, our products are very stable in performance.
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
