Vacuum Microfilm hard candy Making Machine(FC-300)
Trustworthy Hard Candy Forming Machine
High Quality Eletrical Parts Ensure the Long Service Life
Applications
This machine produce twin flavor candy , stripe candy and coffee candy . The produced candy have transparent and smooth surface with good taste.
Combined Parts
1.Continuous Vacuum Microfilm Preheating Pot
2. Syrup transmission pump
3. syrup storing tank

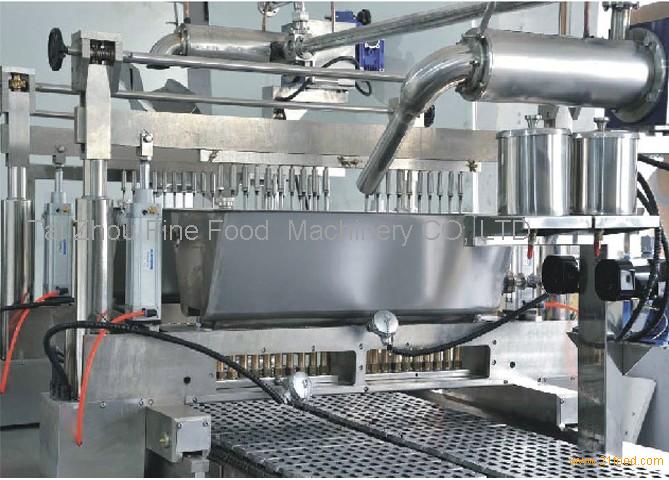

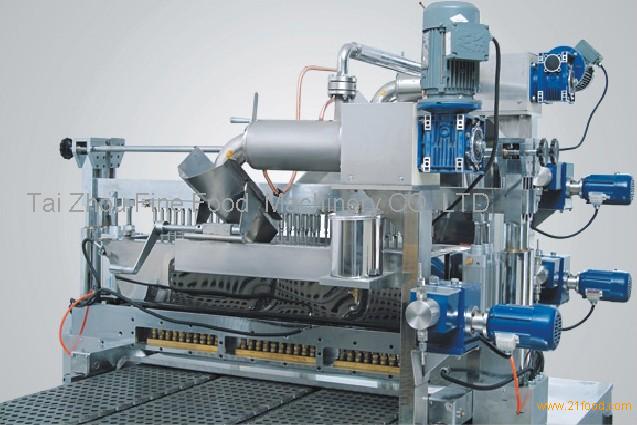

4. depositing machine
Main features
1.High Precision Operating,Easy for setting and maintenance
2.Imported mechanical components for great performance
3.Constant Vacuum Microfilm cooking ensure the good taste with smooth surface.
4.Full Automation and compact structure,high output and good producing efficiency.
Specifications
| items | contained machine | specification | numbers |
| 1. | Preheating pot |
steam laminated, stainless steel with mechanical mixing |
1 set |
| 2. | gear pump | The contacting part with food is stainless steel | 1 set |
| 3. | syrup storing tank | 260Lstainless steel with agitation | 1 set |
| 4. | continuous vacuum film cooking machine | 350kgs/hour , DELTA PLC\touch panel \frequency converter control speed. Steam control system with stainless steel material | 1 set |
| 5. | depositing machine | Double color and double pouring tanks; two mixer three Essence pumps; applied for center filling, double color, stripped pouring of hard candies. Delta PLC \touch panel \frequency converter control speed. 380pieces of mould with stainless steel | 1 set |
| Model | FC-300 | |
| Capacity | 300KG/H | |
| Depositing Speed | 45-65times/minute | |
| Candy shape | According to requirement | |
| Steam | Consumption | 500KG/H |
| Pressure | 0.4-0.7MPA | |
| Power | Voltage | 380V |
| Total power | 28KW | |
| Conpressed Air | Consumption | 0.3M3/MIN |
| Pressure | 0.4-0.6Mpa | |
| Using Enviroment | Temperature | 20-25 |
| Humidity | 55% | |
| Candy weight | 3-5g | |
| Outside Dimensions | 12000mm(L)*2000(W)*2700(H) | |
| weight | 5500Kg | |
Taizhou FINE Food Machinery Co., Ltd. is a modern and standardarized company. We design, install and sell all types of candy machines, chocolate forming machines, packing machines and food machinery. Our products are widely used in food, medical, chemical industry and they can also be applied for toys, daily commodities and hardware products. With good quality, reasonable price and perfect service system, our products earned a good reputation from our customers. We have the right of import and export and our products have been sold to Middle East, Europe, Austria, Latin America, Africa and other countries. With high efficiency customer service system, we can provide the complete service from the budget plan, product recommendation, technical support, installation, training and maintenance. This ensures the realization of customer value.
We consider customer's profit as center of our business principle and we provide the most suitable solutions for customers according to their products and their requirements. We attach great importance to the product innovation. We learned advanced technology from Europe and we developed several new types of machines, such as the full automatic feeding, forming and cutting machine, hard candy depositing line, all types of pillow packing machines, twist type machines and full automatic chocolate feeding and packing lines. With strong technology base and fully equipped testing devices, our products are very stable in performance.
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
