Description of  Carbonated Coconut Water filling Machine , carbonated soft drink machine

We provide series of carbonated drink filling machine, csd filling machine for the carbonated soft drink plant for bottle filling machine, Soft Drink Filling Machine, Carbonated beverage Filling Machine.
1. Material: The material which contact directly with the liquid is the SUS304 (Food grade), made in China.  .
2. This carbonated drink bottling machine is maily for filling carbonated beverage, like Feda, sprite, coca cola, mineral water/pure water/soda water with gas, juice with gas and so on.

Features of Carbonated Coconut Water filling Machine ,small carbonated drink filling machine, carbonated soft drink machine

A. High automation level, compact structure, attractive appearance, convenient and simple operation, safe and reliable and adjustable continuous production capacity, low labor intensity.
B. The main machine adopts advanced PLC control technology
C. The key electric elements adopt products made by international famous companies, such as Mitsubishi and Siemens.
D.These series carbonated drink filling machine can handle max 3 liter pet bottle. Welcome to inspect Carbonated Drink Filling Machine in our factory

The detailed pictures showing  Carbonated Coconut Water filling Machine

 1)Bottle infeed

Air motor blows bottles into carbonated drink machine by infeed starwheels from bottle air conveyor.

2) Bottle Deliveying Starwheel

All deliverying starwheels in the carbonated drink filling machine designed and manafactured by Blissum factory. High grade quality 304 SS material,food grade Nylon and Exquisite workmanship make bottle runing smoothly in the bottle infeed,bottle washing, filling, capping bottle outfeed sections.

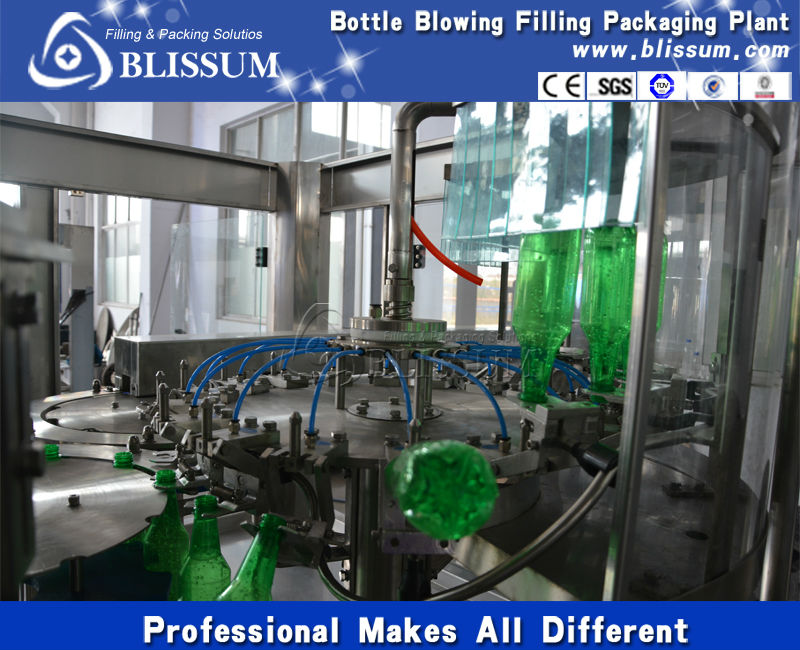

3) Bottle Washer

1 .Bottle runing into washing section by delivery rotary starwheels from bottle air conveyor.

2.  The machine applies unique overturning bottle clamp, which is an innovation of our Blissum factory. This bottle clamp grips bottle at neck position, avoiding bottle mouth thread contamination caused by rubber gripper block of a traditional bottle c lamp. Made of SUS304 stainless steel, this bottle clamp is hygienic and durable.

3. The high efficiency atomizing spay nozzle installed on bottle clamp is capable of cleaning any part of bottle inner wall, and also saves rinsing water.

4.  The rinser is driven by driving system positioned inside machine frame via gear transmission.

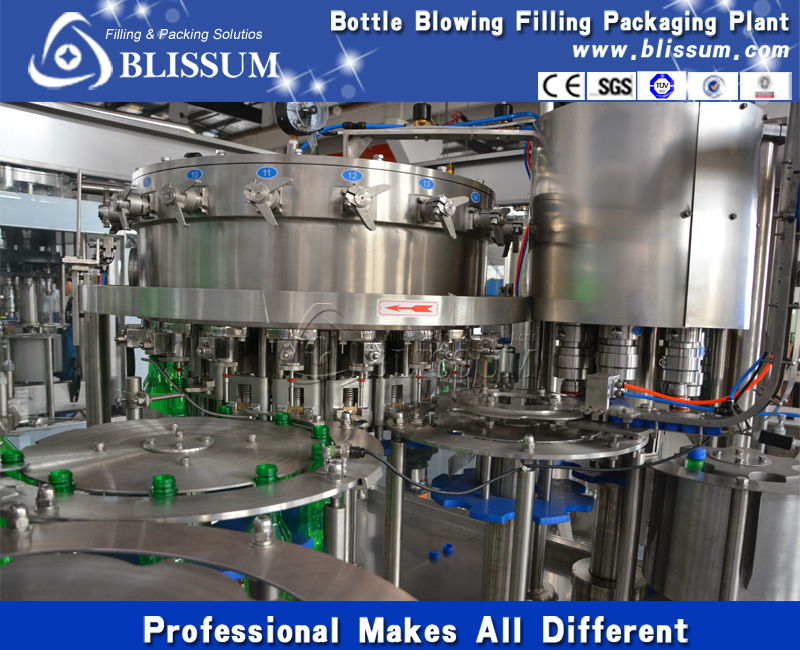

4) Bottle Filler

1.  Gravity filling method.

2.  Filling valves are made of SUS304L (SUS316L avaibable)

3.  Filling valves are reasonably structured with accurate filling.

4.   Bottles go up and down in the function  of cam through elevator, to process filling with contact to bottle-mouth.

5.  Level of cylinder is controlled with float-ball.

6.  Adopts the negative pressure filling which we specifically design for CSD filling, it ensures minimal loss of CO2 from the product

  5 ) Bottle cap sorting laying system

cap sorting system designed base on your bottle caps. Good designe and tested by Blissum company make sure the bottle caps runing to the cap laying cough quickly and smoothly.and also pretecting the caps from wearing when bottle cap rotarying and runing.

6) Bottle Capper

1) extruding wheel (main part to control the stability when sealing), uses the technology of Arol. Kinematical and kinetic

design of the wheel by experts improves the stability and credibility of the equipment.

2) Sealing faucet (main part to control the credibility of sealing), is improved by experts with the design of alnico. Besides

the magnetic contortion variation device, there is variation dial which makes variation more easily. The benefit of this design

is not only it can set the contortion, but also it makes contortion more precise and credible, and reduces inferior.

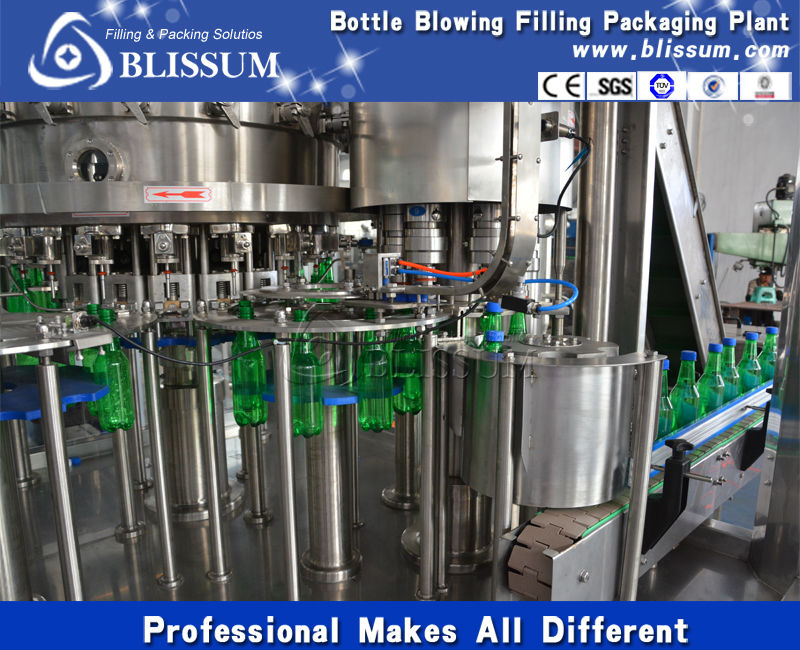

7)Bottle outfeed

Bottle starwheel will transfer the bottle into motor bottle conveyor from capping setion

Technical Paramete of Carbonated Coconut Water filling Machine :

1) Rinser / filler / capper monoblor

2) Bottle material: PET, glass, Aluminum can

3) Bottle volume: 150ml - 2.5L

4) Bottle size: φ=50-100mm  H=160 -340mm

5) Production capacity: 3000-5000 bottles per hour

Blissum design and maufacture the following model of Carbonated Coconut Water filling Machine .

Blissum supply and manufacture the followings machines for you

1) Water Treatment equipment---Ro purified equipment, UF purified equipment, Sand filter, Carbon filter, Water softner, Sea Water treatment.

2) Filling Machine---3 in 1 Washing filling capping---for your water,cabonated drink,

                               juice,wine,vinegar, milk,tea and so on.

                         ----150 to 2500ml bottle, 3.5-10L,11- 20L bottle (3-6gallon bottle

                     ---PET bottle,Glass bottle, PP bottle and Can

                   ----Screw cap, Aluminum cap, Grown cap and three (four) twist caps

3)Labeling Machine---Stick label,Shrink sleeve label, Hot melt Opp labels.

4)Printer

5)Packing Machine----Shrink film, Cartons.

6)Bottle Blower

7)Injection Machine---for your cap and proform.

8) subsidiary products for drink production---Bottle Washer, Bottle Capper, Conveyor, Bottle Dryer, Bottle Warmer, Bottle Loading system, Bottle   unscra mbler,CIP system, Bottle Cooler, Bottle Sterilizer, Blending tank, Storage Tank, Sugar Melting Pot, Syrup Filter Conveyor and so on

Let us know your      ---bottle size

                               ----bottle material

                               ----cap size,cap type

                               ----what kind of drink (water,wine)

                               ----machine capacity

                               ----label size,label material

                               ----packing type, packing material

                               ----workshop size

                               ----and your idea
