Carbonated drink filling line,China BJM price supplier

Carbonated drink filling line

FOB Price:Price can be negotiated

Production Capacity:30 Set/Sets per Year

Payment Terms: US $20,000 - 50,000 / Set

Update Time:2014-09-12

Contact Supplier

Product Description

Carbonated drink filling line
1.Capacity: :0.5-2L 3000-15000bph
2. Bottle Diameter:50-110mm
3. Bottle Heigh:150-340mm

Specifications

Carbonated drink filling line

1.Capacity: :0.5-2L 3000-15000bph
2. Bottle Diameter:50-110mm
3. Bottle Heigh:150-340mm

Carbonated drink filling line

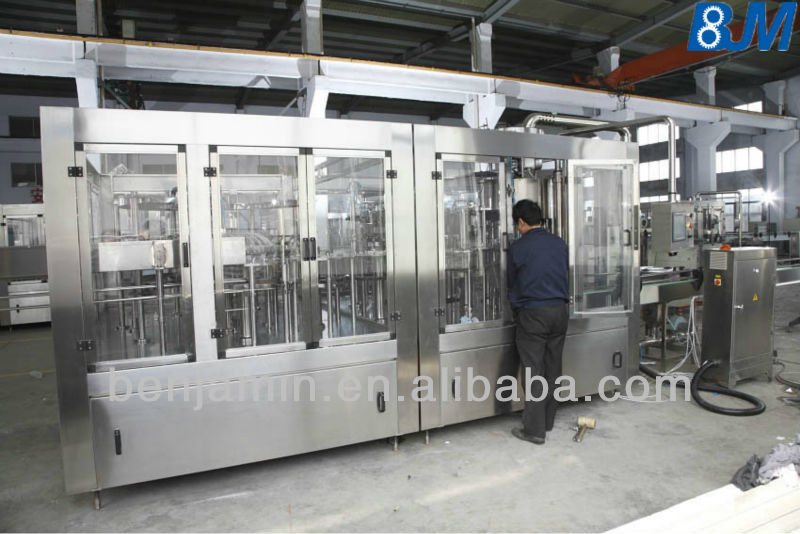

Carbonated Beverage Filling Line ,Filling Machine,it can fill gas water ,carbonated beverage in filling line.

The carbonated filling machine is mainly used in the beverage filling operations. The three functions of bottle washing, filling and sealing are composed in one body of the machine. The whole process is automatic. The machine is used in filling juices, Mineral Water and purified water in bottles made of polyester and plastics. The machine can also be used in hot filling if being installed with temperature controlling device. The handle of the machine can be freely and conveniently turned to adjust the machine to fill various types of bottles. The filling operation is faster and more stable because the micro pressure filling operation of the new type is adopted. There the output and benefit of the machine is higher than the machinery of the same specifications. The advanced OMRON programmed controller (PLC) is adopted to control the machine to run automatically while a transducer is used in the bottle -entering chains to adjust speeds and coordinated with the transducer of the main machine to make the operations of moving bottle forward steadily and reliably

Model:	DCGF18-18-6		DCGF24-24-8	DCGF32-32-12		DCGF40-40-12
capacity :500ml	5000		8000	12000		16000
bottle shape:	roud or square
PET bottle: (mm)	(Bottle Diameter):φ50-.φ110mm (Height):150-340mm
cap:	PE srew cap
filling precision:	≤±5mm
filling pressure:(Mpa)	0.15-0.35	0.15-0.35		0.15-0.35	0.15-0.35
rinsing pressure:(Mpa)	0.2-0.25	0.2-0.25		0.2-0.25	0.2-0.25
filling volume :(L)	3.5	4		6	8
overall size:(mm)	24501800 2350	27802200 2350		36002650 2350	38002950 2400
weight: (kg)	3500	4500		5500	6500

Product Type:	Carbonated Drinks	Primary Ingredient:	Carbonate	Flavor:	Chocolate,Cream,Coffee,Fruity,Grain,Honey,Milk,Soda,Yogurt
Certification:	ISO	Packaging:	Barrel,Bottle,Can (Tinned)	Volume (L):	0.5
Place of Origin:	Jiangsu China (Mainland)	Brand Name:	BJM	Model Number:	DCGFA16-12-6
Packaging Details::	wooden cases. if to european countries,it should be fumigated.	Delivery Detail:	within 30 days after order

Other Products

2014 new !!!!! Carbonated drink filling line

soft drinks and carbonated drinks filling machine line

Carbonated drink filling line

Company Profile

Name: Zhangjiagang Benjamin Machinery Co., Ltd.

Main Products: bottle filling machine,cans filling machine,water treatment,carbonated beverage filling machine,PET bottle filling machine

Business Type: Manufacturer

Total Employees: 11 - 50 People

Established Year: 2012

Main Markets: Southeast Asia, Mid East, Africa, North America, South America

Address: xingyuan road nanfeng town zhangjiagang city

Company Introduction
Benjamin Machinery Co., Ltd is located in No.1 Xingyuan Road Nanfeng Town, Zhangjiagang City Jiangsu Province China, who belongs to Yangtze River delta. It is east to Shanghai, one of the international metropolises, and west to Nanjing, the ancient capital of Jiangsu Province. So the transportation is very convenient.

As a beverage machinery manufacturing enterprises has a wealth of design experience and a number of proprietary technology. It has quality department, production department, sales department, After-sale Service Department.

Quality Control System

1, All products are fully implemented CAD computer aided design.
2, All production process are all made of 6 s management.
3, Parts from processing to assemble between each working procedure are specially equipped with turnover box, realize the parts not fall to the ground in the whole process.
4, Filling valve, screw cap and other major parts are machined on CNC lathe and machining center, ensure the assembly precision and parts clean
5, Products matching parts adopt world famous and domestic famous brand products.
6, All single machine can be allowed to leave factory before delivery by passing 80 hours continuous operation and inspection qualified.

After-sales Service System

Personnel training

Directs the technical and quality training are free provided to the employees of customers. The training includes equipment structure and maintenance, equipment control and operation etc;
Training in the buyer's site with practice. Our company will appoint qualified technical personnel to guide, and to develop appropriate training syllabus;
Through training, buyer's technical personnel should be able to master the operation and repair skills, skillfully adjusting process, and deal with the fault in time.

Quality Assurance

1, Our company ensure that the goods are brand new, unused, the latest design and suitable materials, and in accordance with the quality, specifications and performance as stipulated in the contract and in the aspects of technology;

2, We ensure that after the correct guide installation, debugging in the whole system of feeding operation within 3 days, the equipment reaches the product of the technical performance indicators.

3, Our company make sure that in the quality assurance period, we would in charge of any defect, fault and damage to the production line due to defects of product design, technology, manufacturing, debugging or material defects etc which because of the seller's liability to the production line;

4, The warranty period is 12 months after the final-acceptance. For example, in the quality guarantee period, when the goods aren't up to specification stated in the contract, there is also a penalty for poor quality, the buyer shall have the right to lodge claim base on inspection certificate issued by legal department.

5, Our company guarantee the product consumption indexes on the mechanical properties of the equipment, and the quality of the products.

Equipment warranty

1, After equipment was accepted, we provide 12 months of warranty, 24 months of warranty of the control system, and we will provide spare parts and timely and effective services for users free of charge in this period.

2, if repair service required, we will appoint specialized technicians to serve in your place in 48 hours(force majeure excepted )

3, After the warranty period, Our Company will provide extensive lifelong favorable technical support and adequate spare parts supply.

4, We can provide users with every one to two times the door-to-door service free of charge, time can be customized.

Main product:
1, Purified and Mineral Water production lines,
2, Hot filling (juice and tea filling, pulp filling)
3, Carbonated Beverage Filling Production lines
4, Can filling production lines
5, 3-5 gallon barrel production lines
6, Oil Filling Production Line
7, Water Treatment System etc more
