Carbonated soft drink filling machine,China BXHD price supplier

Carbonated soft drink filling machine

FOB Price:Price can be negotiated

Production Capacity:50 Set/Sets per Month

Payment Terms: US $2,000 - 110,000 / Set

Update Time:2024-05-08

Contact Supplier

Product Description

1.Beverage machine
2.Washing-filler-capping
3.500-25000BPH in 100-2000ml.
4.30 years and CE
5.Providing technical support

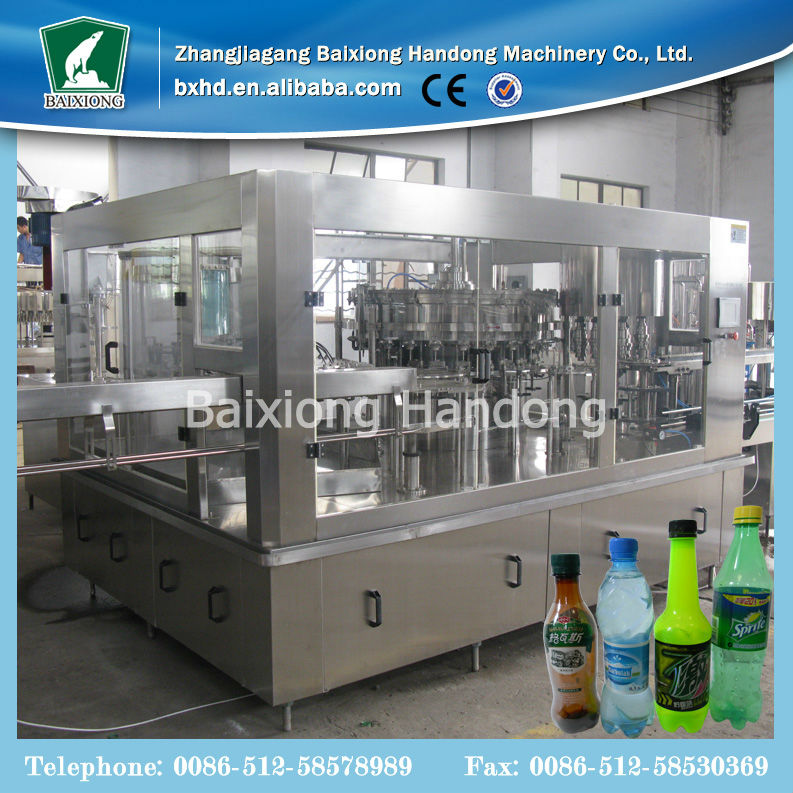

PET or Glass Bottle Carbonated drink bottling machine

Product Description

Feature

Usage: The machine is used for washing PET bottle, filling and sealing of carbonated drinking,soda water, Pepsi, sprite drink,Coca cola,energy drink and so on in PET or Glass bottle or Can.

1. It can do the bottles from size 200ml to 2000ml. And little spares are need when changing bottles. We suggest users to take same specification bottles, especially the same bottle neck.

2. It has beautiful appearance and easy operating system. Its maintenance is convenient.

3. This full automatic juice monobloc integrates bottle washing, filling and capping on one machine.

4. The juice hot Filling Machine is equipped with advanced filling valve. Its scientific and reasonable design ensures the high speed of filling, precise filling level and no waste drop of juice.

5. Its capping heads apply constant magnetic torque device to ensure the capping quality and prevent the bottle cap from damage.

6. It adopt advance programmed controller(PLC), international famous brand main motor, transducer, electric elements and so on.

Specification

Model	DCGF 16-12-6	DCGF 1 8 -1 8 -6	DCGF 24 - 24 - 8	DCGF 32 - 32 - 10	DCGF 40 - 40 - 12	DCGF 50 - 50 - 15	DCGF 6 0 - 60 - 15
Capacity (500ml b/h)	2000-3000	3000-5000	5000-7000	7000-10000	10000-15000	16000-20000	20000-24000
Filling precision	≤ +5mm(Liquid Level)
Filling pressure (MPa)	≤ 0.4
PET bottle specificati on (mm)	Bottle DiameterØ50- Ø100mm; Height150-310mm;
Suitable cap shape	P lastic Screw Cap
Total power (kw)	4.4	5.2	6.2	6.2	7.5	11	15
Weight (kg)	2500	3500	4500	6000	7200	10000	115000
Overall dimension (mm)	2250x1650x2250	2600x1965x2250	2980x2200x2250	3880x2200x2250	4000x2250x2500	5500x3500x2500	6500x5500x2550

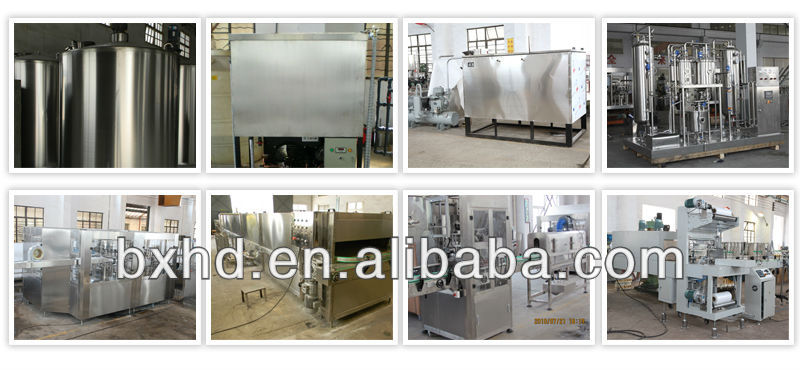

Carbonated beverage auxiliary machines

Company Information

Packaging & Shipping

Certificate

Notice

When you send inquiry, please also include the capacity in one hour and bottle size or volume, it is easy and accurate for us to recommand a right machine! Then I will send the quotation and materials and photos to your e-mail.

Condition:	New	Place of Origin:	Jiangsu China (Mainland)	Brand Name:	BXHD
Model Number:	32-32-10	Type:	Beverage drink fillling machine	Voltage:	220V/380V/440V
Power(W):	4.5KW	Weight:	2000KG	Dimension(LWH):	388022002250
Certification:	CE	Warranty:	1 year	After-sales Service Provided:	Engineers available to service machinery overseas
Material:	SUS 304/306/316	Bottle size:	100-2000ml PET or glass bottle or Can	Production:	500-25000BPH
Filling:	Juice,flavor water, tea, suda water and so on.
