Filling Machine
1. carbonated Soft drinks
2. capacity: 2000-36000BPH
3. SUS304

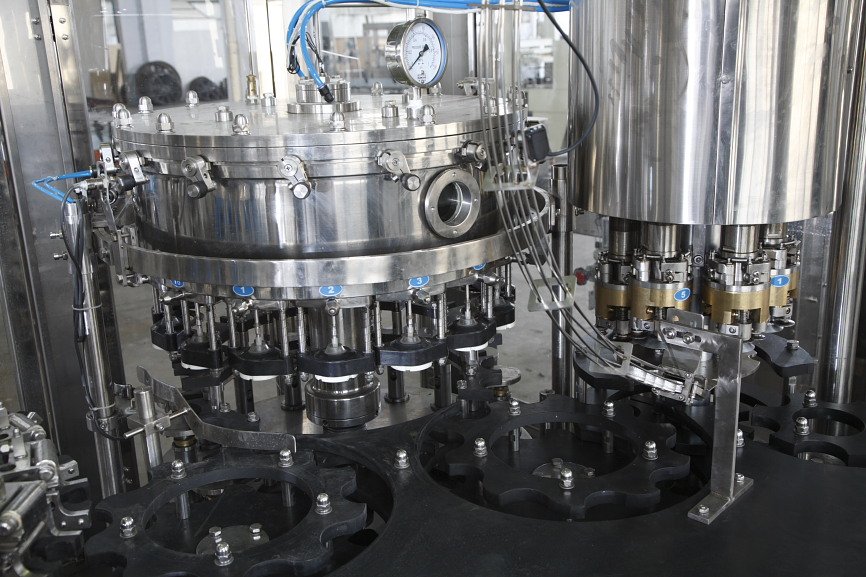

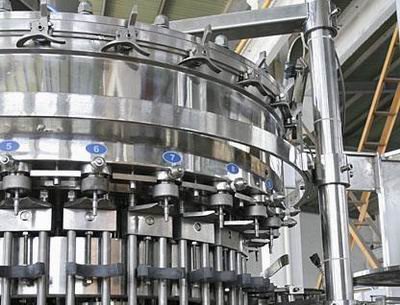

carbonated soft drink filling machine
it is used for filling carbonated drink in PET bottle or glass bottle. we can supply the whole line.
Characteristics:
1. it can carry out washing filling and capping in one machine.
2. it is very convenient to change diverse sizes of bottles by means of advanced bottle neck clamping & bottle suspending technology.
3. Advanced programmable PLC is equipped to control the main machine. Working speed can be adjusted by frequency conversion device.
4. Main electronic components are all from famous international enterprises, such as OMRON, Mitsubishi.
Technical parameters:
| Model |
DCGF18-18-6 |
DCGF24-24-8 |
DCGF32-32-12 |
DCGF40-40-12 |
| Production Capacity:500ml(B/h) |
5000 |
8000 |
12000 |
16000 |
| Suitable Bottle Types(mm): |
Round or square square shaped bottle |
|||
| Polyester Bottle Dimension: (mm) |
Bottle diameter:φ50-φ110 Height :150-340mm |
|||
| Suitable Cap Standard: |
Plastic Screw Cap |
|||
| Filling Precision |
≤±5mm |
|||
| Filling Pressure(Mpa) |
0.15-0.35 |
0.15-0.35 |
0.15-0.35 |
0.15-0.35 |
| Rinsing Precision:(Mpa) |
0.2-0.25 |
0.2-0.25 |
0.2-0.25 |
0.2-0.25 |
| Installed Capacity:(L) |
3.5 |
4 |
6 |
8 |
| Overall Size(mm)(L×W×H) |
2450×1800×2350 |
2780×2200×2350 |
3600×2650×2350 |
3800×2950×2400 |
| Total Weight: (kg) |
3500 |
4500 |
5500 |
6500 |
| Product Type: Carbonated Drinks | Primary Ingredient: Carbonate | Flavor: Fruity, Soda |
| Feature: Normal | Certification: ISO | Packaging: Bottle, Can (Tinned) |
| Place of Origin: Jiangsu China (Mainland) | Brand Name: Chenyu | Model Number: DCGF |
| CE certificate: ISO9001 | automatic grade: full automatic | machine material: food sanitation SS |
| color: silvery white | usage: inner |
