hot-selling shrink packing machine
1.carbon steel frame;
2.adjustable speed;
3.Constant temperature.
hot-selling shrink packing machine with factory price

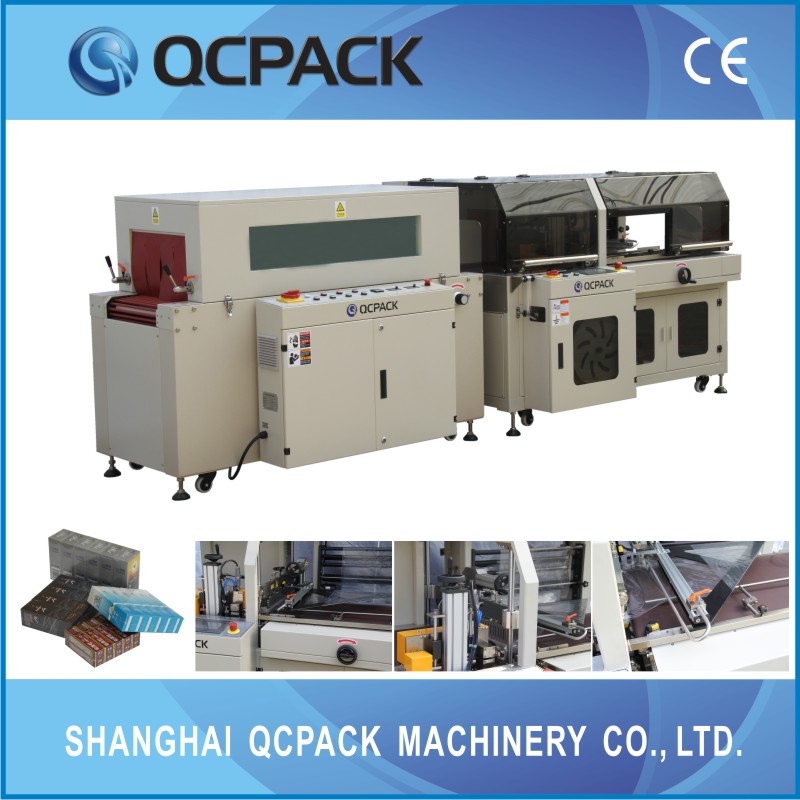

1.Machine photos :
hot-selling shrink packing machine

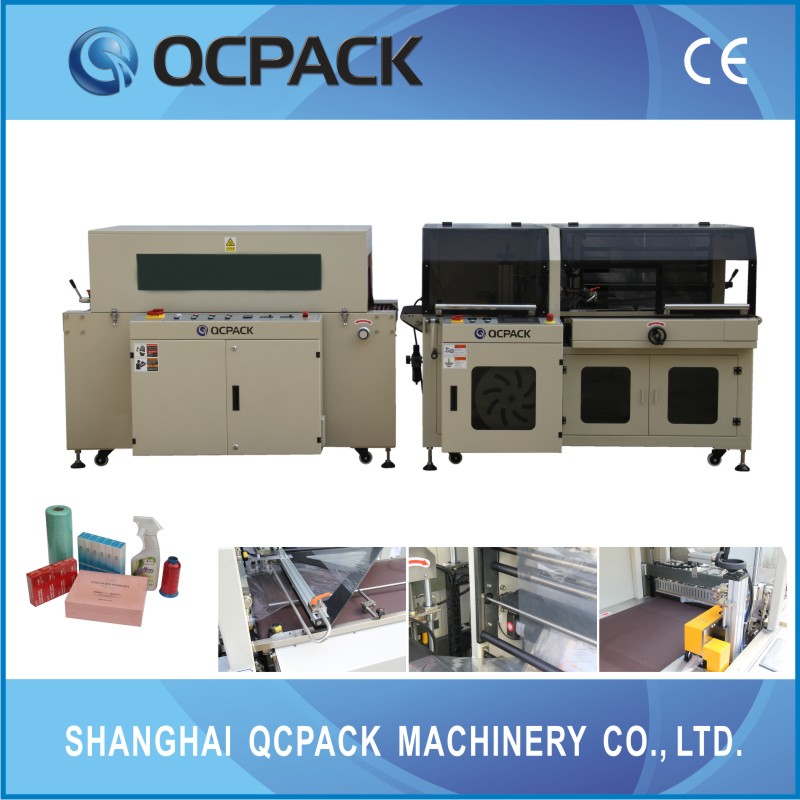

2.Machine Photos :
hot-selling shrink packing machine c Packaging Machine
3.Uses :
Applied to software, food, cosmetics, printing, pharmaceutical, beverage mass shrinkable packaging, hardware, and other industries, such as: wood, aluminum frame, wider and longer items.
hot-selling shrink packing machine
4.Samples:
hot-selling shrink packing machine
5.Performance Characteristics :
1. The machine adopts imported and the most advanced PLC programmable controller , With safety protection and alarm device , Ensure machine high-speed stability, a variety of Settings can be operated on the touch screen easily.
2. Adopt side sealing design, packaging length is no limited , The sealing line height can be adjusted according to the height of packing products;
3. The Sealing knife adopt the United States D u P ont teflon coating , anti - sticking , High temperature resistant alloy knife, the seal ing will not crack, not coking and no smoke , no pollution.
4. Assembles one horizontal and one erect sensor for the entrance to the sealer it is easy to switch over ,even for some thin products, it is also easy to pack them.
5. When pack different sizes of products,it is simple to adjust,need not to exchange any molds or any bag making device.
6. Adopts OMRON digital temperature controller with PID function, sealing temperature is extremely sensitive and accurate, can set temperature optionally, the cutter itself has a protective function, avoid from damage the products.
7.The machine can connect production line and unmanned operation
hot-selling shrink packing machine
6.Spare parts:
hot-selling shrink packing machine
7.Spare parts :
hot-selling shrink packing machine
8.Main Technical Parameters:
| Model |
BTH-550 |
BM-500L |
| Max packing size |
(L)No limited (W+H))≤500mm (H)≤200mm |
(L) No limited* (W)450×(H)230mm |
| Max sealing size |
(L) No limited (W+H)≤550mm |
(L)1500×(W)500×(H)300mm |
| Packing Speed |
15~35 packs/Min |
0-30m / min |
| Electric Supply & Power |
220 V/50Hz 3kw |
380V/50Hz 16kw |
| Max Current |
16A |
32A |
| Air Pressure |
5.5kg/cm3 |
/ |
| Weight |
800kg |
4 00kg |
| Overall Dimensions |
(L)2 00 0×(W)1 27 0 ×(H)1300mm |
(L)1800×(W)1 1 00×(H)1300mm |
hot-selling shrink packing machine
9.Spare parts :
hot-selling shrink packing machine
10.Spare parts :
c
hot-selling shrink packing machine
11. Workshop :
hot-selling shrink packing machine
12.Workshop :
hot-selling shrink packing machine
13.Equipment:
hot-selling shrink packing machine
14.exhibition:
hot-selling shrink packing machine c packaging machine
15.Visit figure:
hot-selling shrink packing machine
16.Certificates:
hot-selling shrink packing machine
17.Shipment Details:
hot-selling shrink packing machine
18.We Promise:
12 Months guarantee,during this period we will offer free replacement after confirming that it is our quality problems.
If you want to know more information about our products welcome to contact us in any time, And welcome to our company!!!
| Type: |
Wrapping Machine
|
Condition: |
New
|
Application: |
Food,Beverage,Commodity,Medical,Chemical,Machinery & Hardware
|
| Packaging Type: |
Cartons
|
Packaging Material: |
Wood
|
Automatic Grade: |
Automatic
|
| Driven Type: |
Electric
|
Voltage: |
220V
|
Power: |
3kw
|
| Place of Origin: |
Shanghai China (Mainland)
|
Brand Name: |
QCPACK
|
Model Number: |
BTH-550+BM-500L
|
| Dimension(L*W*H): |
2000*1270*1300mm+1800*1100*1300mm
|
Weight: |
800kg+400kg
|
Certification: |
CE
|
| After-sales Service Provided: |
Engineers available to service machinery overseas
|
Name: |
hot-selling shrink packing machine
|
Warranty: |
12 months
|
| Cutting knife servo motor: |
PANASONIC
|
product feeding motor: |
TPG
|
PLC: |
OMRON
|
| Touch screen: |
MCGS
|
Temperature controller: |
OMRON
|
Horizontal sensor: |
BANNER
|
| Sealing knife: |
DAIDO
|
Conveyor: |
SIEGLING
|
