CB-VP42II automatic chocolate bar packing machine,China BAOPACK price supplier

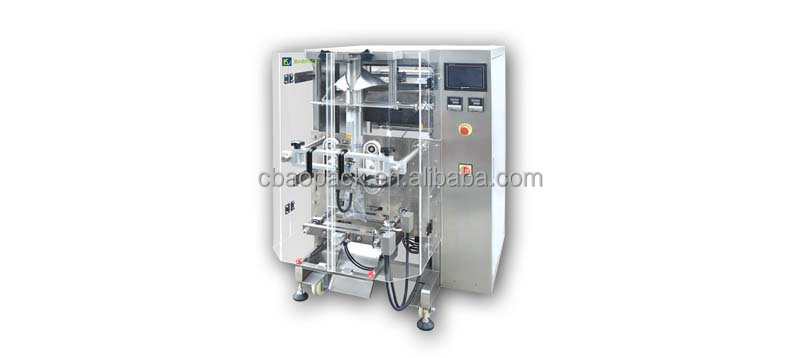

CB-VP42II automatic chocolate bar packing machine

FOB Price:Price can be negotiated

Production Capacity:60 Set/Sets per Month

Update Time:2022-06-20

Contact Supplier

Product Description

Advantage
* #304 stainless steel using
* Packing fast and stable
* Mastered the core technology of packaging machines

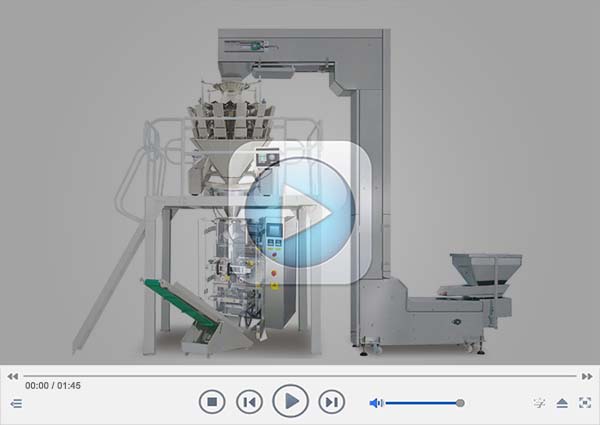

Product VIDEO

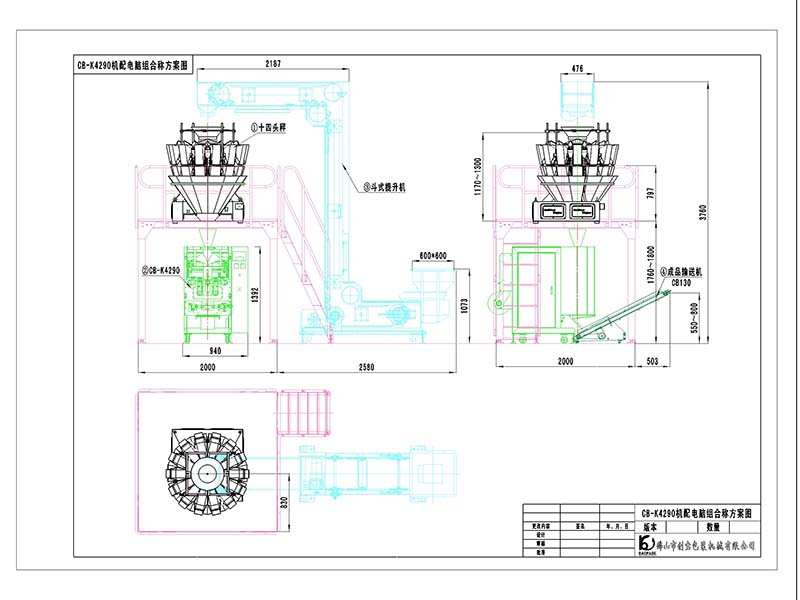

Product List

NO.	Model	Products name	Quantity
1	CB-VP42II	Basic machine	1 set
2	CB-MD14	14 heads combination weigher	1 set
3	CB-TK9	Z type bucket elevator(vibration)	1 set
4	CB-P1.7-1.8)	Supporting Platform	1 set
5	CB-TP200	Finished product Conveyor	1 set
6		Stochastic forming	1 set
7		Wooden case packing charge	1 set

Superiority

*Low investment, high return, high speed, high efficiency

*Imported PLC computer control system, man-machine interface, large display and easy touch-screen operation.

*Servo film transporting system, horizontal sealing servo control, accurate positioning, machine performance

*Maximize the reliability and intelligence of the whole machine.

Item	Content
Capacity	70-100 bag/min,it is according to quality of wrapping and supplies
Accuracy	≤±1.5%
Bag size	(L)60-300mm (W)90-200 mm
Film width	420mm
Bag type	Pack with film, upper seal, lower seal and back seal by automatic bag making machine.
Filling range	150-1300ml
Film thickness	0.04-0.09mm
Package material	Thermal composite material., likeBOPP/CPP, PET/AL/PE etc
Air consumption	0.8Mpa 0.5m3/min
Total powder	5.75KW
Voltage	Four wire three phase 380V 50HZ
Air compressor	Not less than 1 CBM
Total height	3.760m

Application

Suitable to package fragile materials demanding high accuracy,such as

puffedfood,crispy rice,jelly,candy,pistachio,apple slices,dumpling,chocolate,pet

food,small hardware,medicine,etc.

The 14 heads weigher

Features
Main feature
Load cell infeed detection, more compatible for harsh working environment (dusty).
Automatic frequency control function to improve the passing rate.
Independently adjustable amplitude,more user friendly.
Staggered dumping mechanism to prevent material blockage.
Multi-language operating interface.
Mouse, USB and SD card compatible 10” touch screen
High grade (IP65) waterproof and dustproof design, more durable in wet and dusty working environment.
Instant display of the weight inside each hopper.
Application Range:
Cereal, pasta, pet food, frozen food (frozen dumping), all type of granular products (peanuts, pistachio), confectionary, fresh products (lettuce leaf), bakery food (biscuits). Non-food applications (screws, bolts).

Weigh range	10-1500g
Accuracy	0.5-1.5g
Max speed	130wpm
Weigh volume	4.0L
Hopper No.	14
Control panel	10inch touch screen
Driving Device	Stepper motor
Power supply	AC 110/220±5V, 50/60 Hz
Power	1 .3KW
Size	1246×1238×1388(mm)
Weight	400kg

P1.7-1.8 Supporting platform P1.7-1.8

Features
The supporting platform is solid will not affect the measurement accuracy of the combination weigher.
In addition, the table board is to use the dimple plate, it is more secure, and it can avoid slipping.
Specification
The size of the supporting platform is according to the type of the machines.

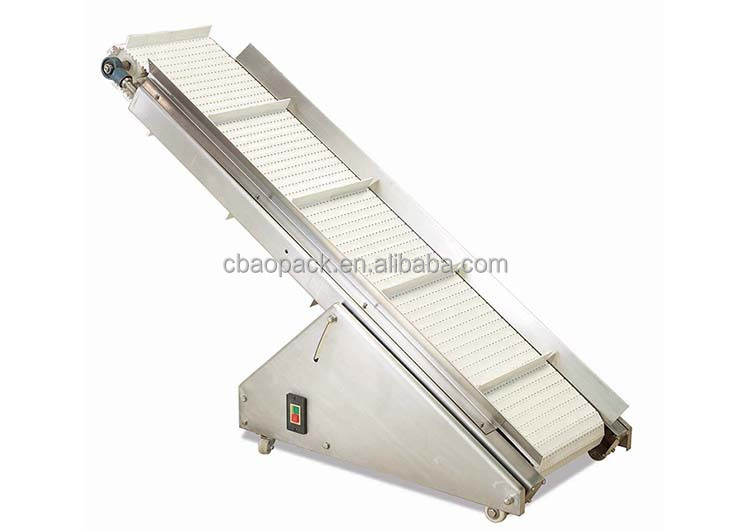

TP200

Features
The machine can send the packed finished bag to after-package detecting device or packing platform.

Lifting height	0.6m-0.8m
Lifting capacity	1 cmb/hour
Feeding speed	30m\minute
Dimension	2110×340×500mm
Voltage	220V/45W

Type:	Other,Packing Machine	Condition:	New	Application:	Food
Packaging Type:	Stand-up Pouch,Bags,Film,Foil	Packaging Material:	Plastic	Automatic Grade:	Automatic
Driven Type:	Pneumatic & Electric	Voltage:	220V	Power:	5.75KW
Place of Origin:	Guangdong China (Mainland)	Brand Name:	BAOPACK	Model Number:	CB-LDVP42
Weight:	550KG	After-sales Service Provided:	Engineers available to service machinery overseas	Machine Material:	All stainless steel
Usage:	Outer
