CE certification Automatic liquid filling machine for Coconut oil filling

FOB Price:Price can be negotiated

Production Capacity:5 Set/Sets per Month

Payment Terms: US $1 - 8 / Set

Update Time:2014-09-16

Contact Supplier

Product Description

Factory produce spring water packing machinery
Material stainless steel
BV,CE,ISO,SGS
Automatic
PLC contro

Product Description

Factory produce spring water packing machinery

1.Descriptions

(1) This bottle filling equipment is mainly used for washing, filling and capping PET bottle which can fill non- carbonated drinks such as mineral water, pure water, wine and so on.

(2) Bottle washing, filling and capping are achieved in one machine.

(3) The contact time is shorten between material and the outside. And improved the health conditions, production capacity and economic benefits.

(4) CGF series bottling machine adopts hanging type conveying-bottle structure to make changing bottle mold more convenient, faster and more laborsaving.

(5) The main machine adopts advanced PLC control technology. The key electric elements adopt Mitsubishi, Omron, Siemens, etc international famous products.

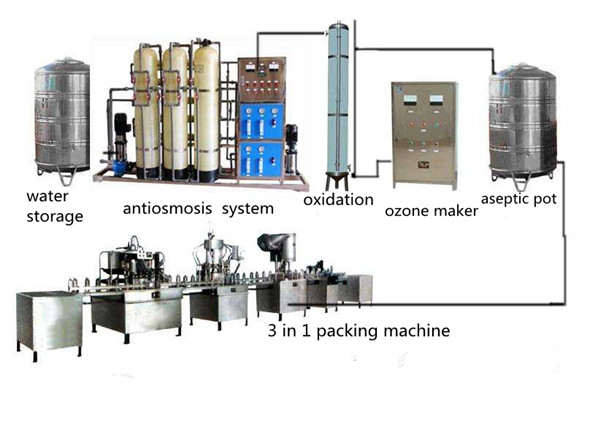

2. flowing chart :

Filling Machine for Coconut oil filling" ori-width="600" ori-height="434" />

3.Main configurations:

Model	Brand name
Frequency exchanger	MITSUBISH
PLC	OMRON
Touch screen	DIGITAL PROFACE
Contactor	SCHNEIDER
Thermal relay	SCHNEIDER
Air switch	SCHNEIDER
Proximity switch	TURCK
Photoelectric switch	BANNER

4.work thoery

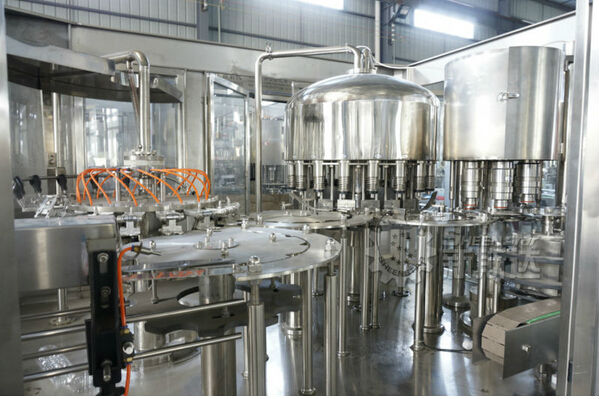

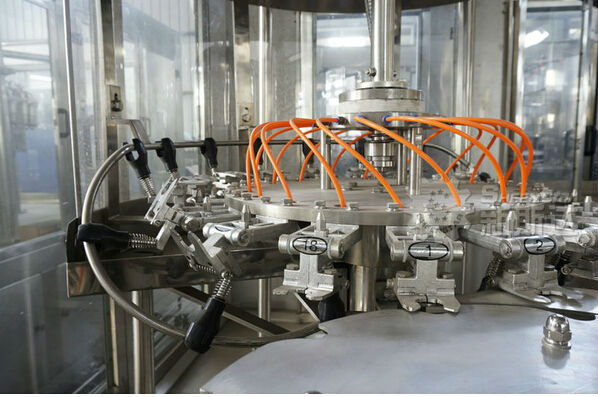

The bottle enters into the rinsing part of three-in-one machine through air Conveyor. The gripper installed on the rotary disk catches bottle and turns it over 180 degrees and makes the bottleneck face ground. In the special rinsing area, the nozzle on the gripper sprays water to rinse bottle inwall. After rinsing and draining, the bottle turns over 180 degrees along the guide rail and make the bottleneck faces sky. Then rinsed bottle is transferred to the filling part through poking bottle star-wheel. The bottle that enters into the filler is hold by neck holding plate. The filling valve acted by the cam can realize up and down. It adopts pressure filling way. The filling valve opens and begins filling when it moves down and touches the bottleneck, the filling valve move up and leave the bottleneck when it finishes filling, the full bottle is transferred to the capping part through hold neck transition poking wheel. The stop screwing knife holds the bottleneck, keeps bottle upright not rotating. The screw capping head keeps in revolution and autorotation. It can finish a whole capping course including catching, pressing, screwing, discharging through the action of the cam. The full bottle is transferred to bottle outlet conveyor to the next process through bottle outlet thumb wheel.

Our Services

Before sales:
we can supply full support for you to choose the suitable machines. We can design the layout drawing for you according to your workshop size.

During manufacturing:
we will finish the machine on time exactly. After the machine is finished, you can come to our factory to test the machine, or we can send the video for testing the machine to you.

After sales:
We will send technicians to your factory for installation, testing and operator training; our warranty period is 12 months in this period, we provide free parts for buyer as well as the necessary technical support. In our warranty period, we offer free technical support, and the spare parts are free.

Packaging & Shipping

Plywood case, if customers need fumigation, we can supply!

Company Information

our are specialized in making liquid fill machines. full automatic type, semiautomatic type. we provide good

quality mahcines with competitive price. we hope our efferts can make a good purchase Platform to you!

Type:	Filling Machine	Condition:	New	Application:	Food,Beverage,Commodity,Medical,Chemical,Machinery & Hardware,Apparel,Textiles
Packaging Type:	Cartons,Cans,Bottles,Barrel,Stand-up Pouch,Bags,Pouch,Capsule,Case	Packaging Material:	Plastic,Metal,Glass	Automatic Grade:	Automatic
Driven Type:	Electric	Voltage:	380V	Power:	28KW
Place of Origin:	Shanghai China (Mainland)	Brand Name:	GENYOND	Model Number:	GY-WP250
Dimension(LWH):	131.62.13M	Certification:	ISO 9001	After-sales Service Provided:	Engineers available to service machinery overseas
materails:	stainless steel	grade:	food grade

Company Profile

Name: Shanghai Genyond Technology Co., Ltd.

Main Products: food machine,vegetable fruit machine,dairy processing machine,fruit juice machine,fruit chips machine

Business Type: Trading Company

Total Employees: 201 - 300 People

Established Year: 2013

Main Markets: Africa, Mid East, South America, Southeast Asia, South Asia

Address: No. 1328, Hengnan Road, Pujiang Town, Minhang District

Shanghai Genyond Technology Co., Ltd. is a manufacturer of extracting unit and fruit & vegetable processing line with well-equipped testing facilities and strong technical force.

With a wide range, good quality, reasonable prices and stylish designs, our products are extensively used in food and beverage and other industries.

Our products are widely recognized and trusted by users and can meet continuously changing economic and social needs.

We welcome new and old customers from all walks of life to contact us for future business relationships and mutual success!
