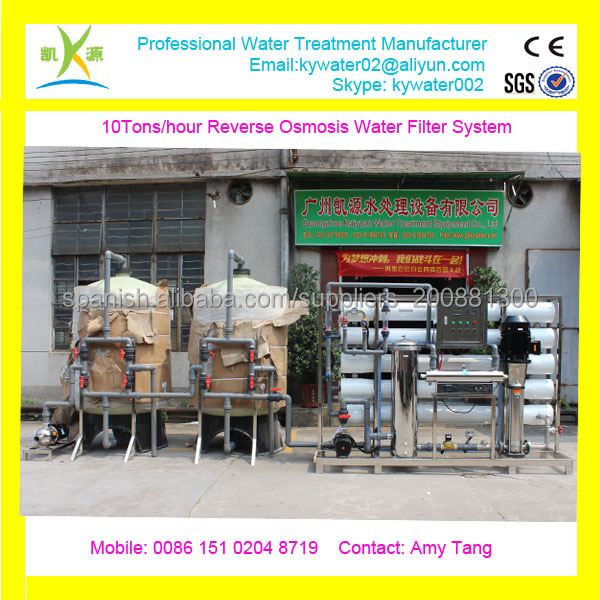

10T/H Drinking Water processing machine
1.Industrial RO system
2.Nanfang pump
3.USA DOW membrane
4.CE,SGS
CE, ISO Approved 10T/H drinking water processing machine
Features and Advantages:
1.System can produce water continuously and high degree automation.
2.No need chemical to regenerate, easy operation and maintenance.
3.Core components of ro system are imported USA DOW membranes.
4.Automatic switch on when low water level, and switch off when high water level
5.System flushes RO membranes automatically, reducing membranes polluted speed.
6.Water shortage protection for multi-stage pump
7.Product water conductivity meter can monitor water quality online continuously.
8.Low operation cost and long life span
9. There’s RO controller, make whole RO system operating automatically.
10.Easily control and Maintained.
11. Auto flush and backwash the prefilters
12. Integrating water flow indicator, conductivity indicator, pressure indicator, control panel

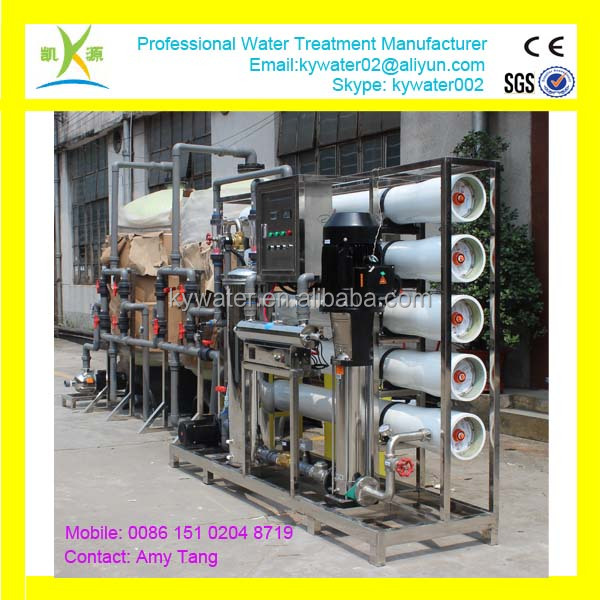

Reverse Osmosis Water Treatment RO System KYRO-10T
The reverse osmosis(RO) water treatment plant is an equipment to purify water with the action of pressure difference of semi permeable membrane. RO membranes can effectively remove majority of organics, harmful substances, bacteria, particulates etc. RO system is widely used in water treatment, purification for tap water, well water, underground water, brackish water and seawater, pure water and ultra-pure water production, power stations, electronic industries, medicine manufactories, and medical treatment. It is a key equipment for pure water plant.
Reverse Osmosis Water Treatment RO System KYRO-10T
Water treatment plant series model :
1. KYRO-250, KYRO-500, KYRO-1000, KYRO-2000, KYRO-3000
2.KYRO-4000, KYRO-5000, KYRO-6000, KYRO-8000, KYRO-10T
3.KYRO-12T, KYRO-15T, KYRO-20T, KYRO-25T, KYRO-30T...
KYRO-4000 water treatment plant technical parameters:
Model |
KYRO-4000 |
Production capacity |
4000 L/Hr |
Power |
18KW |
Power supply |
AC 380V 50Hz 3phase |
Reverse osmosis (RO)membrane |
BW30-400 USA DOW |
Membrane housing |
8040-2 5pcs stainless steel |
Raw water pump |
Nanfang Hangzhou |
Quartz sand filter, activated Carbon filter |
Stainless steel 2pcs |
Security filter |
40 "× 5μm |
High pressure pump |
Nanfang Hangzhou |
Activated carbon |
375kg |
Quartz sand |
1400kg |
Size (mm) |
15CBM |
Water treatment plant application:
1. Electronic industry: Pre-filter for ultra pure water, chemical products and pure water
2. Food and beverage industry: filter for mineral water, wines and fruit juice, bottled drinking water
3. Medicine industry: filter for drug liquid
4. Chemical industry: filter for organic solvent
5. Petroleum industry: filter for oil-field flooding

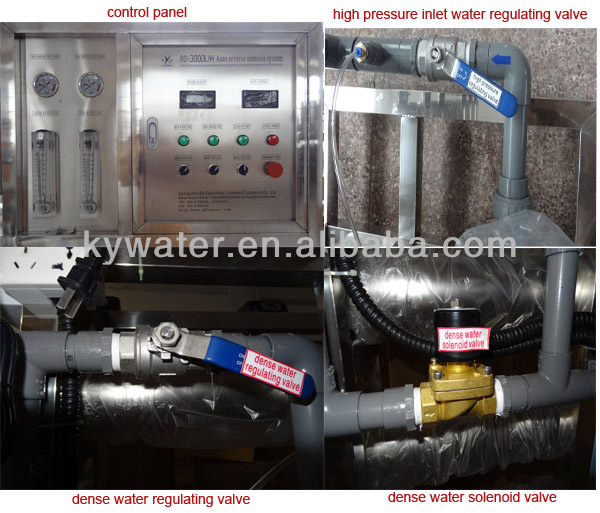

Standard parts on the machine:
Working process:
Raw water pump→ mechanical filter→ activated carbon filter→ sodium-ion exchanger(optional)→ security filter→ high pressure pump →Reverse osmosis system→ UV light→ water supply point
Product show:

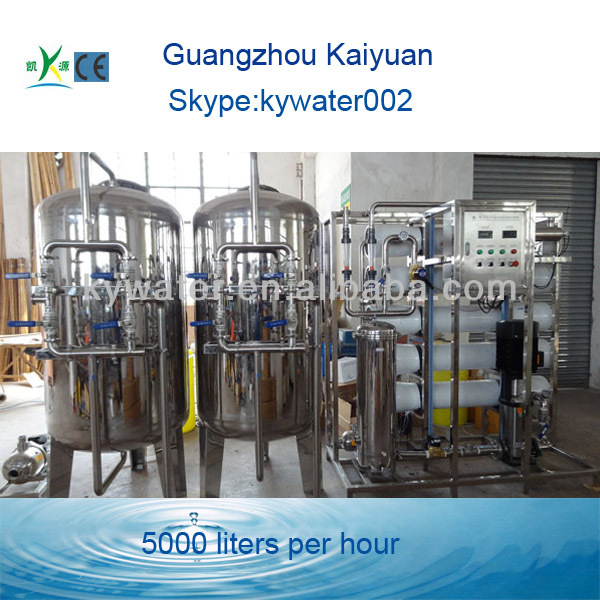

water treatment RO system KYRO-5000

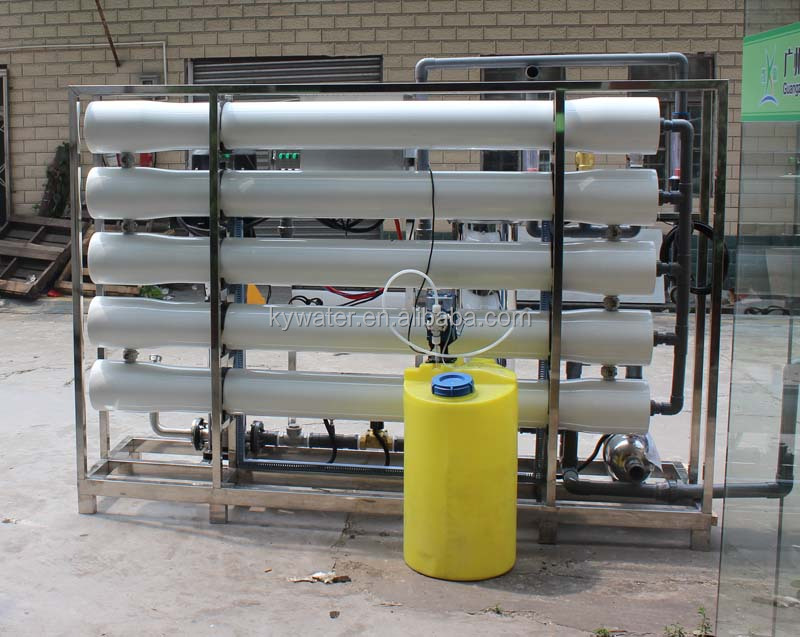

water treatment RO system with FRP prefilters KYRO-5000
water treatment RO system KYRO-1000(TDS<3000ppm)

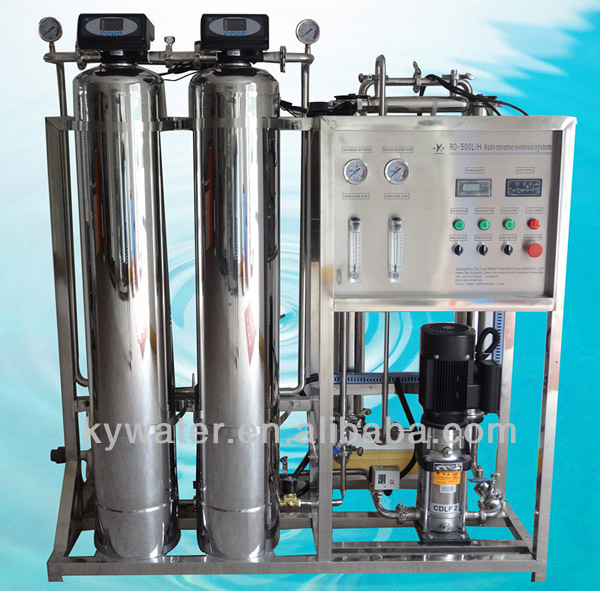

stainless steel water treatment RO system KYRO-500SS
water treatment RO system KYRO-500
Kaiyuan Customers:
Goods packing &loading:
About us:
Guangzhou Kaiyuan Water Treatment Equipment Co.,ltd is located in Guangzhou city,China, has been engaged in water treatment since 2002. We are specialized in manufacturing reverse osmosis drinking water treatment plant, industrial pure water equipments, ultrapure water equipments, underground water treatment plants, brackish water treatment systems, EDI systems and bottled water filling machines etc.
Our products are sold well not only in domestic, but also in UAE, Saudi Arabia, South Africa, Kazakhstan, Sri Lanka, Vietnam, Haiti, Spain, Australia, Nigeria, Uganda, New Caledonia, Ecuador, Sudan, Guatemala, Somalia, Cameroon, Malaysia ,Ghana, Lebanon etc. countries.
Contact Us:
Please feel free to contact us for any question,we will reply within 24h.
Place of Origin: |
Guangdong China (Mainland)
|
Brand Name: |
Kaiyuan
|
Model Number: |
KYRO-10T drinking water processing machine
|
Application: |
drinking water, bottled water
|
Function: |
Water Treatment System for water purifying
|
RO membrane: |
USA Filmtec Dow
|
Pipeline fittings: |
SUS304/U-PVC
|
Control valve: |
Manual(auto optional)
|
Filter tank: |
SUS304 stainless steel
|
Processing: |
tap water, underground water, river water etc.
|
Sterilizer device: |
UV light/ozone generator
|
Membrane vessel: |
fiber glass
|
Product water: |
pure drinking water
|
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
