CGF18-18-6 Water Bottling Machine

FOB Price:Price can be negotiated

Production Capacity:200 sets per year

Payment Terms: T/T Or L/C

Update Time:2016-09-14

Contact Supplier

Product Description

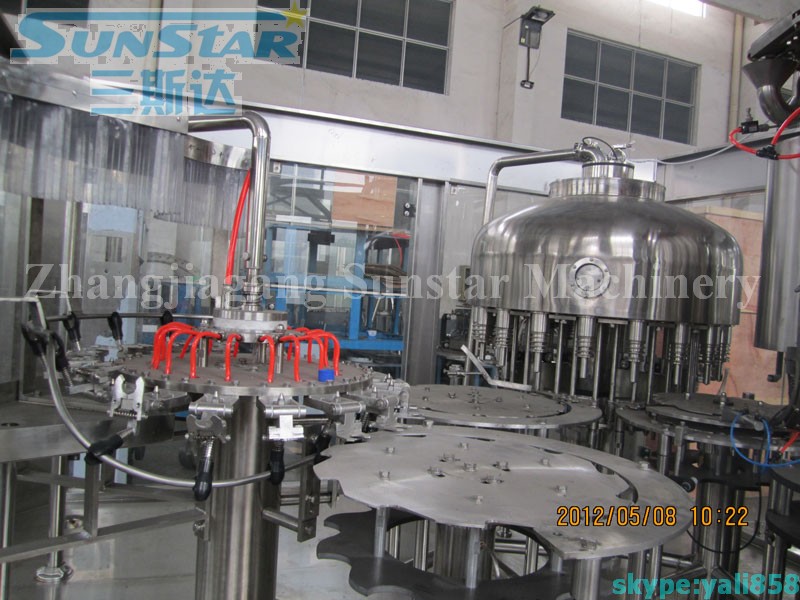

CGF18-18-6 Water Bottling machine:

CGF18-18-6 Water Bottling Machine ---The machine was used for all kind of water such as vitamine water, nutritive water, pure water, Mineral Water, drink water, mountain spring water etc.There are three functions of bottle wash, fill and seal are composed in one body of the machine. The whole process is automatic. The machine is used in bottling mineral water and purified water in bottles made of polyester and plastics. The Machine can also be used in hot filling if being installed with temperature controlling device. The handle of the machine can be freely and conveniently Turned to adjust the machine to fill various types of bottles. The filling operation is faster and more stable because the micro pressure filling Operation of the new type is adopted. There the output and benefit of the machine is higher than the machines of the same specifications. The advanced OMRON programmed controller (PLC) is adopted to control the machine to run automatically while a transducer is used in the bottle -entering chains to Adjust speeds and coordinated with the transducer of the main machine to make the operations of moving bottle forward steadily and reliably. It is Convenient to operate with higher automation because every part of the machine is inspected to run with photo electricity, On the bases, the filling Parts of the machine can be changed into filling methods of lower vacuum. The filling category of lower vacuum (Z type machine) is applicable in glass Bottles, filling alcohol, Soy and such like materials. The aluminum tamperproof cap and plastic cap can be adopted.

1.This machine has a compact structure, perfect control system, easy to operate and highly automatic degree.
2.The parts contact with product is made of quality SUS304 or SUS316, anti-corrosive, and easy to clean.
3.By adopting high speed filling valve, the liquid level is precise and no waste. That guarantees the demand of filling technology.
4.The capping head adopts constant torque magnetic device to guarantee capping quality and impact cap.
5.This machine has a high efficient cap arranging system, perfect cap feeding and protection device.
6.Equipped with perfect clean management system to ensure the bottle clean.
7.Only by changing the star-wheel, can realize to fill the changed bottle shape.
8.The machine adopts perfect overload protective device can ensure the operator and machine safe.
9.This machine adopts adjustable frequency converter.
10.The main electric components, frequency, photoelectric switch, proximity switch, electric control valves all adopt imported components, which can ensure the quality performance.
11.The control system has many functions, such as control producing speed, cap shortage detection, bottle block automatic stop and production counting etc.
12.The electric components and pneumatic components are all introduced from world famous brand products.

Technical parameter:

Model: CGF 18-18-6

Production capacity: 5000-7000B/H (basis on 500ml bottle)

Filling precision: ±3 (liquid level)

Rinsing pressure: 0.3Mpa

Polyester bottle specification: bottle diameter:φ40-φ 120mm

bottle height: 130 -340mm

Suitable cap type: plastic screw cap

For more information, pleas contact with us.

Water filling machine, water bottling machine, water filling, washing and capping machine, water filler, water bottler, mineral water filler, pure water bottler

Company Profile

Name: Zhangjiagang Sunstar Machinery Co.,Ltd

Main Products: liquid filling or bottling machine,mineral water filling line, pure water filling and packing production line, csd drink filling and packing machine

Business Type: Manufacture & Trade

Total Employees: 20 ~ 50

Established Year: 2004

Total Annual Revenue: US$1 Million - US$2.5 Million

Main Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe,

Address: Leyu industrial zone, Zhangjiagang City, Jiangsu Province, China.

Zhangjiagang Sunstar Machinery Co., LTD., located at Yongli industrial zone, Zhangjiagang City. We have more than 10 years' experiences on beverage treatment, filling and packing machine industry. So we are specialized in manufacturing various of beverage treatment, filling and packing machines. We provide beverage filling line with the optional capacity from 2, 000-24, 000BPH for mineral water, purify water, fruit juice, fruit tea and carbonated beverage, beverage, wine, beer, oil, condiment and household & personal care products etc. Pure water treatment, carbonated drink making filling production line, juice making sterrilizing filling and packing production line, 5 gallon filling production line, and CIP system. With our machines, bottles can be plastic bottle, glass bottle barrel and cans. In other words, customized machines can be produce according to client’s requirements.

Our main product:all kind of liquid filling or bottling machine, liquid packing machine, mineral water filling line, pure water filling and packing production line, csd drink filling and packing machine, juice/tea filling and packing machine, beer filling and packing machine, oil filling and packing machine,wine filling and packing machine, juice making machine,pure water treatment and purify machine, 5 gallon bottle filling and packing machine, pop can filling and packing machine,sauce filling and packing machine, sterilizer, tanks,juice treatment system, csd mixing machine, carbonator, chiller, capping machine, labeling machine, shrink wrapping machine, sleeve labeling machine, self-adhesive labeling machine, glue label labeling machine, plastic bottle making machine, plastic bottle blowing machine, cap making machine, liquid bottling machine, glass bottle filling machine, glass bottle packing machine and so on

`We supply high quality machines and great professional after-sale services. Our goal is to make customers satisfied and value maximized. We normally provide 12 months warranty and 12 months wear out spare parts. Engineers are available to go to customer’s factory and install machines, teach them the way to maintain the machines.`
