China automatic S49 series food grade powdered sugar cocoa milk powder vibration sifter machine,China SD price supplier

cocoa Milk Powder vibration sifter machine" style="width: 754px; height: 373px;" ori-width="720" ori-height="350" /> China automatic S49 series food grade powdered sugar cocoa milk powder vibration sifter machine

1. Working Principle of Milk Powder Vibration Sifter

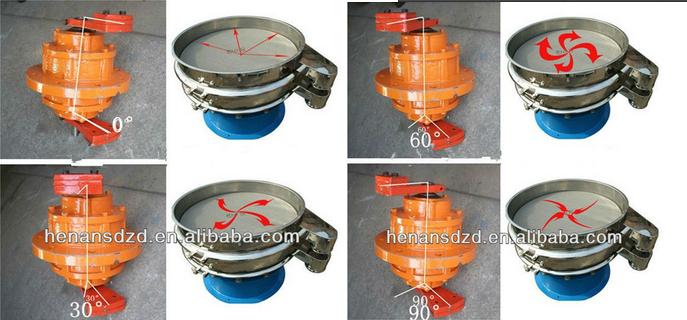

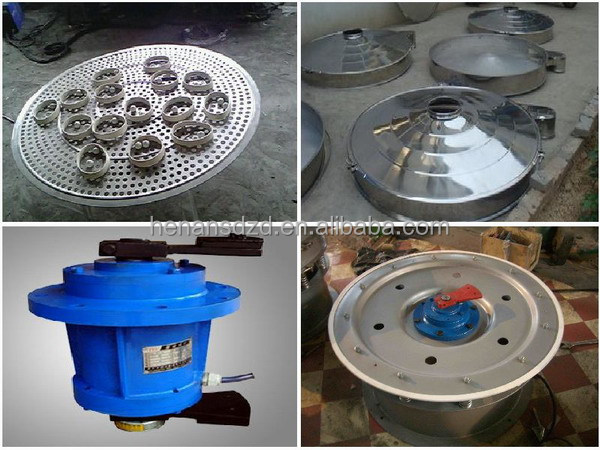

This milk powder vibration sifter  i s driven by vertical  vibrating  motor.  An upper and lower adjustable eccentric weights  equipped on the both side of motor shaft. Relative angle of these weights can be adjusted to control the motion of whole unit.

Moreover, a vertical motion model is perfectly function in limited space. Special model with reliable anti-clogging device aims to keep clean and accurate in separation by controlling outlet ports, customized structure has an enlarged top inlet port, which reaches high efficiency of screening operation.

2. Technical Parameters of  Milk Powder Vibration Sifter

       Note :(1) the technical parameters above is just for your reference.

        (2) S49-serise Screener contains more than 25 types. Which type will be selected just according to

        your actual production requirment.

3. How to Increase Service Life of Milk Powder Vibration Sifter ??

(1)  installation&commissioning

i. Adjust relative angle of upper and lower eccentric weights to ensure suitable vibration force.

ii.If machine  running time  > 1500 hours,  please  check  bearing , if there is a serious injury should be immediately replaced .

(2)  daily maintenance

   i . Check the screen mesh before running, ensure every clamp is locking.

  iii.Check the foundation bolt, motor bolt and clamp after running, fasten them if there is loose

(3)  operation notes

    i . Feed your material continuous evenly to ensure good screening efficiency and accuracy.

  ii.Check the bouncing ball regularly. If there is aging, please replace it in time to avoid   pollution of your material.

(4)  working condition

  i. Elevation: <1000 meter.

  ii. Ambient Humidity: -5 ℃ -40 ℃ .

  iii.Relative Humidity:<90%(below 20 ℃ ).

  iv.No conductive dust, no corrosion and damage the insulation gas exist.

4. Additional Service

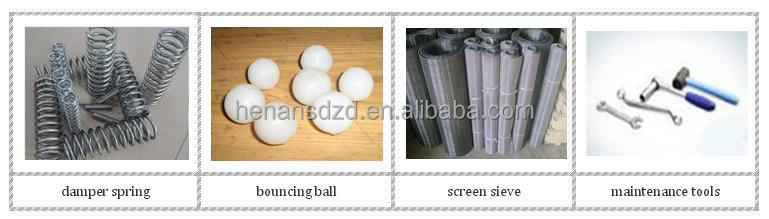

(1)  free spare parts

(2)  customized machine for clients

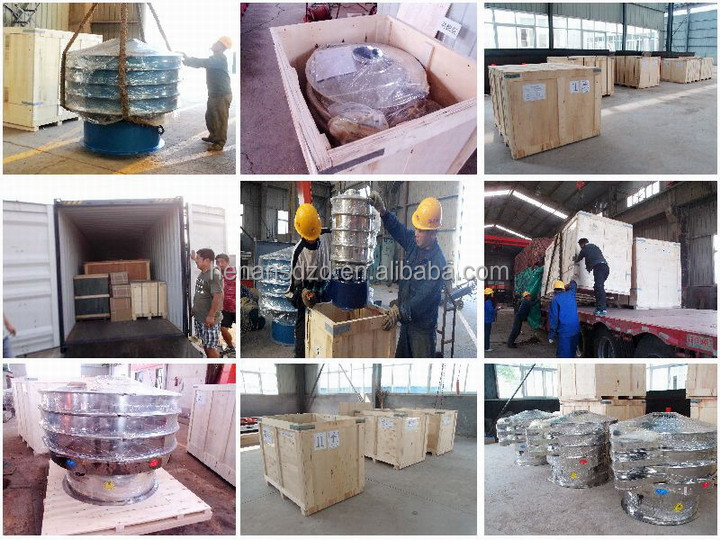

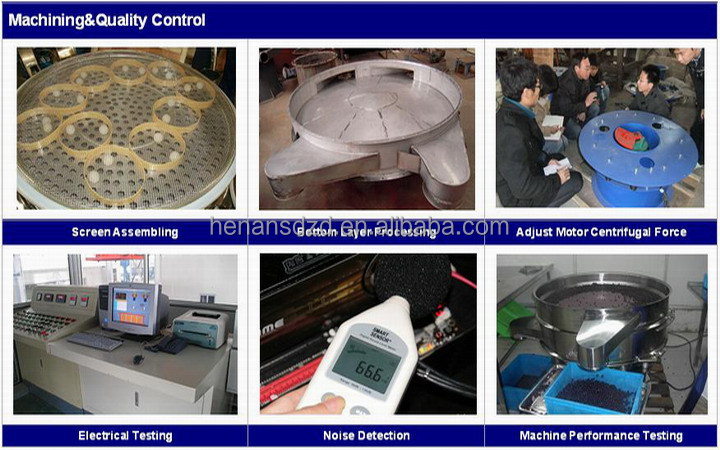

5. Quliaty Control and Delivery

Choose SD's machine you will be able enjoy the following service:

1. Pre-sale services ---- Act as a good adviser and assistant of clients; Ensure them to find suitable products which they  real  want, get the Max. benefit with lowest input cost.

2. Services during the sale  ---- Respect clients; Devote ourselves to improving the total value

3. After-sale services ---- Provide considerate services to minimize clients' worries.

Warranty :  100% brand new when leaving the factory. The seller guarantee quality of the machines (excluding wearing parts)for a period of one year from the date of trial run finish under our technician's guidance, but not exceed 13 months from date on which machine leaves the factory.

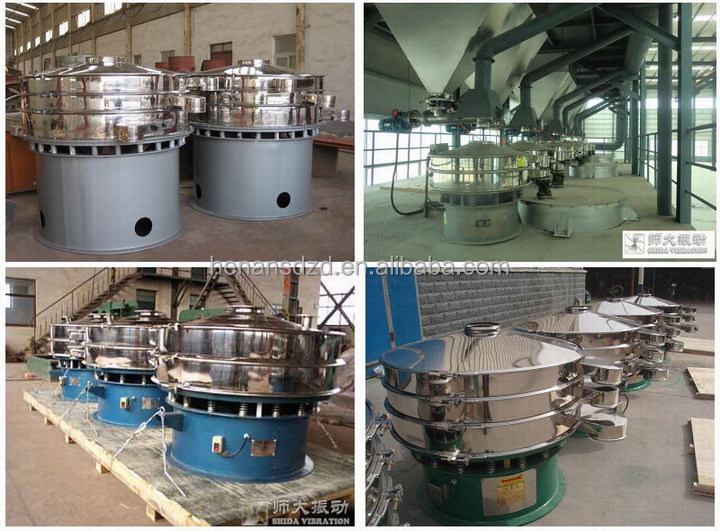

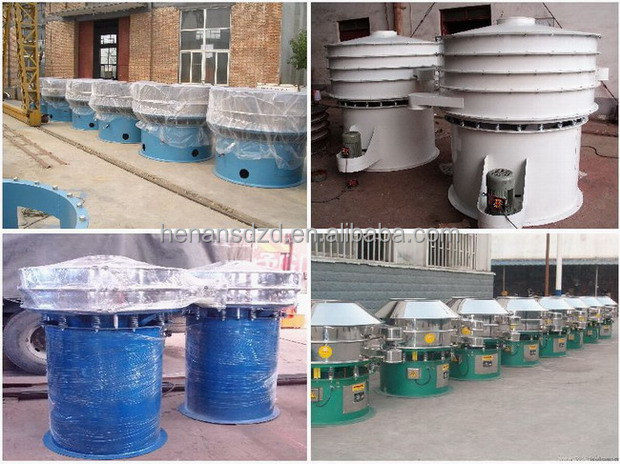

6. Successfull Cases:

7.You May Interested In...

8. Who we work ed with in  First Half Year

SD Machinery

With more than 50 years experience in   Material Handling   Equipment : vibrating screen, belt&chain conveyor, vibrating feeder, dust collector, vibration motor, ect. Our ideal proposals and high-quality products are recognized by domestic and foreign customer. As a professional assistant, we can find good solutions for your project. Products in our company  also successfully passed  ISO9001:2008, CCC and  CE Certificate

Welcome to contact us for any technical consult !
