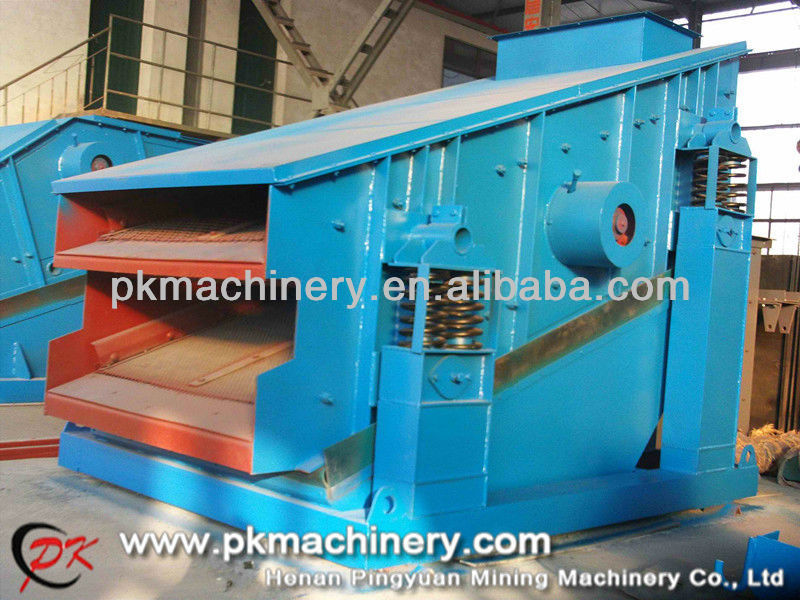

COCOA POWDER Separator:
1.motor left or right mounted
2.single or double layers
3.durable construction
China cocoa powder separator
------Brief Introduction
China cocoa powder separator is a multilayer, high-efficient vibration screen, with the applications of classification, separation, grading, according to material particle size.
------Working Principle
China cocoa powder separator movement is approximate to be a circular motion, and it is an efficient new vibrating screen with several layers. The machine uses an eccentric vibration exciter and tire couplings to improve the service life of equipment; the equipped spring damping device can effectively reduce the impact on the foundation and lower the vibration noise.
------Features
1. Simple structure and easy maintenance;
2. Small amplitude, high frequency and large angle of inclination;
3. High screening efficiency, large processing capacity, multiple layers (1-5);
4. Long service life, low power consumption and low noise;
5. ISO9001:2008, BV, SGS and CE certification.
------Application
China cocoa powder separator is widely used in chemical, coal dressing, mineral ore dressing, building material, hydropower, light, constructioin industries, etc.
------Technical Parameter
| Model |
Layer |
Sieve Size(mm) |
Capacity(t/h) |
Frequency(/min) |
Power(kw) |
| YA1236 |
1 |
6-50 |
75-245 |
845 |
11 |
| 2YA1236 |
2 |
6-50 |
75-245 |
845 |
11 |
| YA1530 |
1 |
6-50 |
80-255 |
845 |
11 |
| YA1536 |
1 |
6-50 |
95-310 |
845 |
11 |
| 2YA1536 |
2 |
6-50 |
95-310 |
845 |
15 |
| YA1542 |
1 |
6-50 |
110-360 |
845 |
11 |
| 2YA1542 |
2 |
6-50 |
110-360 |
845 |
15 |
| YA1548 |
1 |
6-50 |
125-410 |
845 |
15 |
| 2YA1548 |
2 |
6-50 |
125-410 |
845 |
15 |
| YA1836 |
1 |
6-50 |
115-370 |
845 |
11 |
| 2YA1836 |
2 |
6-50 |
115-370 |
845 |
15 |
| YA1842 |
1 |
6-50 |
135-430 |
845 |
15 |
| 2YA1842 |
2 |
6-50 |
135-430 |
845 |
15 |
| YA1848 |
1 |
6-50 |
150-490 |
845 |
15 |
| 2YA1848 |
2 |
6-50 |
150-490 |
845 |
15 |
| YA2148 |
1 |
6-50 |
175-570 |
748 |
18.5 |
| 2YA2148 |
2 |
6-50 |
175-570 |
748 |
22 |
| YA2160 |
1 |
6-50 |
220-700 |
748 |
18.5 |
| 2YA2160 |
2 |
6-50 |
220-700 |
748 |
22 |
| YA2448 |
1 |
6-50 |
200-650 |
748 |
18.5 |
| YA2460 |
1 |
6-50 |
250-810 |
748 |
30 |
| 2YA2460 |
2 |
6-50 |
250-810 |
748 |
30 |
------Selection Guidelines
1. What's the capacity you required?
2. What's the material will be separated?
3. How many layers do you need?
4. What's the sieve mesh size of every layer?
5. What's the particle size distribution?

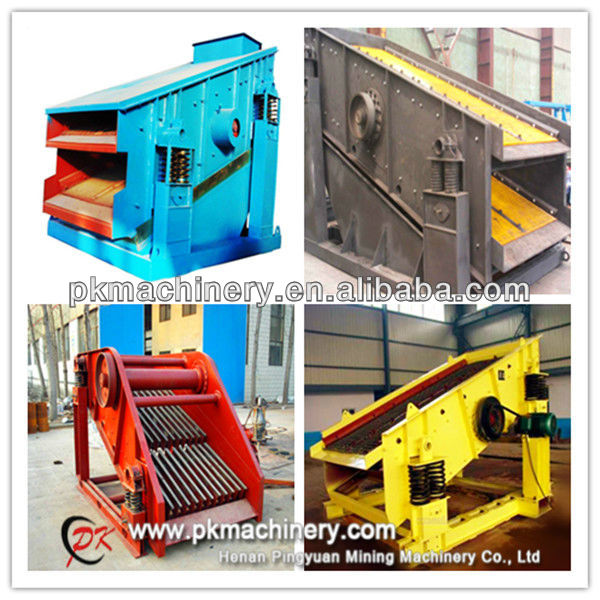

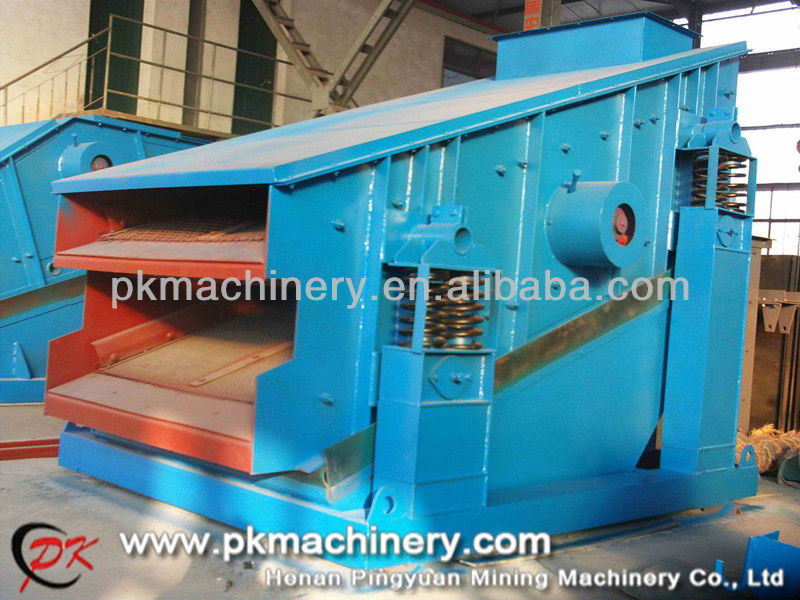

------More Pictures
--- Complete
---Details

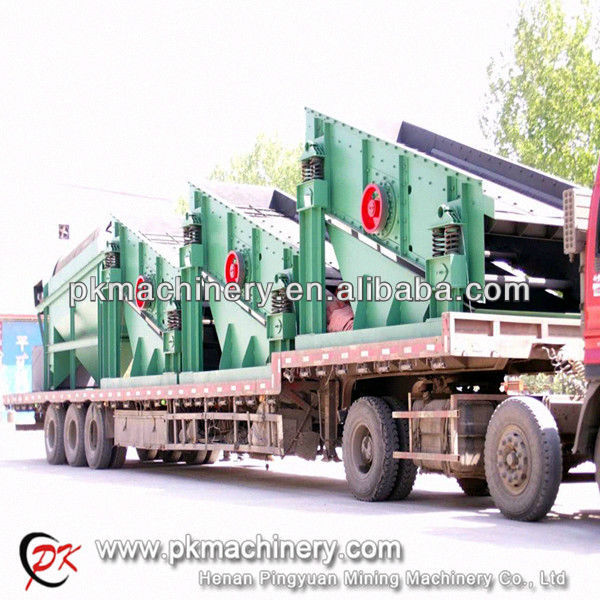

---Loading
------About us
1.We are the leading manufacturer specialized in designing and manufacturing gyratory screen in china with the experience of more than 20 years.
2.Manufacturing according to the ISO9001:2008 quality control system guidelines.
3.Our products are widely recognized and trusted by users and can meet continuously developing economic and social needs .
4.Workers are locals in china, low production cost.
---our factory
---Our certifications
Welcome to contact us!
| Condition: |
New
|
Type: |
Circular
|
Application: |
chemical,coal dressing, mineral ore dressing, building material
|
| Place of Origin: |
Henan China (Mainland)
|
Brand Name: |
PK
|
Model Number: |
YA/YK
|
| Voltage: |
220V,380V,660V
|
Power(W): |
According to the engineer calculation
|
Dimension(L*W*H): |
According to the model you choose
|
| Weight: |
According to the model you choose
|
Certification: |
ISO9001:2008,SGS,CE,BV
|
Warranty: |
12 months
|
| After-sales Service Provided: |
Engineers available to service machinery overseas
|
Color: |
blue ,yellow,or as your request
|
Deck: |
1/2/3
|
| Mesh Size: |
5-50mm
|
Motion: |
Circular motion trail
|
Classification: |
Light-duty and heavy-duty
|
| Vibrating Means: |
Vibration Generator
|
Construction: |
SS/CS
|
Processing Capacity: |
40-250t/h
|
| Frequency: |
730rpm
|
