chocolate bar moulding machine,China JY price supplier

chocolate bar moulding machine

FOB Price:Price can be negotiated

Production Capacity:100 Set/Sets per Month

Payment Terms: US $10,000 - 100,000 / Set

Update Time:2014-09-28

Contact Supplier

Product Description

ISO&CE certificate,Chocolate packing machine factory, chocolate packing machine manufacturer,we can design based on your demand

1 chocolate moulding machine: (including one depositor and cooling tunnel)

USE :
1).This chocolate moulding machine can produce pure chocolate, ceter filled chocolate, two clour chocolate, nuts mixed chocolate.

2).Chocolate depositing machine can complete casting, vibrating mould, cooling, demoulding, conveying, baking mould

automatically.

3).Pneumatic casting method and mechanical casting method are for your option.

4).Has merits of high productivity,accurate quantity for production,smooth surface of chocolate etc.

5).Meet the requirement of food sanitation.

Technical Parameters :

Production capacity:	800 - 2500kg/8hours
Depositing times:	20 - 25times/minute
Dosage system:	mechanical
Mechanical vibrating frequency:	200 - 1000times/minute.
Molds vibrating amplitude:	0 - 3mm, adjustable
Cooling time:	18 - 30min
Cooling temperature:	5 - 10°C
Cooling tunnel length:	8.2m * 8 Layers
Time of baking molds:	20 - 36 seconds
Temperature of baking molds:	35 - 40°C
Length of baking molds:	1.4m
Refrigeration capacity:	20000 - 25000kcal/h (10 HP COPERLAND)
Evaporator area:	80 square meters
Quantity of moulds:	300 pieces
Dimension of moulds:	standard 275×175×30mm
Total Power of machine:	17.4kw
Dimensions:	16000×1000×1800 ( L×W×H, mm )
Weight of the machine:	3500kg

2. Chocolate conche

USE :

1).The chocolate conche machine is one of the major chocolate machine in the chocolate production line which are used for the fine grinding of chocolate material.

2).The fine grinding time is about 14~20 hours, the average granularity can achieve 20μm.

3).This chocolate machine has many merits such as tight structure, easy operation, convenient maintenance, few one-off investment, and so on.

4).It is suitable especially for the technical request of medium chocolate and candy factory.

Technical Parameters :

Model/Project:	1000L
Maximum capacity(L):	1000L
Grinding Fineness(micron):	20 ~ 25
Main Axle Rotating Speed(rpm):	35
Grinding time(h):	16 ~ 22
Main motor power(kw):	18.5
Electrical heating power(kw):	2*2
Weight(kg):	3050
Outside dimensions(mm):	262712801520

3. Chocolate tempering machine:

USE:
This machine is designed according to the characteristics of the natural Cocoa butter and cocoa butter equivalent (CBE).It is in vertical structure, the chocolate mass is fed from the bottom by the chocolate pump, then passing through four temperature adjusting zone and one temperature holding zone, then output from the top of the machine. After this process, the chocolate product will be well crystallized with smooth taste, good finishing and longer shelf life.

Technical parameter:

Output:	250KG/H
Main motor power:	1.5kw
Power of cold water pump:	0.25KW
Power of hot water pump:	0.12KW
Electric heating power:	2KW
Refrigeration power:	3KW
Complete machine power:	8.3KW
Net weight:	580KG
Dimension:	120010001720mm
Water pressure:	2bar
Chocolate paste pressure:	2bar

4. Chocolate holding tank:

USE :

The chocolate storage tank is a necessary equipment in chocolate production line. It wears double warm-water jacket which used for temperature storage of fine ground chocolate paste.So that to meet the technical request of chocolate production and the request of continuous production.

This chocolate tank has functions of temperature decrease, rise and preservation.

Besides it has the functions of degasification, desmelling, dehydration and preventing the chocolate paste from the separation of oil and grease and so on.

Technical parameter:

Model:	TBWG1000
Maximum capacity	1000kg
Motor power :	2.2kw
Stirring Rotational Speed:	24 rpm
Whisk Rotational Direction:	Clockwise (Viewed from above)
Electric Heater Power:	4kw
Tank Interlayer Water Temperature:	55°C (Warm-up temperature of chocolate mass)
Net weight :	1000kg
Outside dimension :	(Diameter)1220*(Height)1850mm

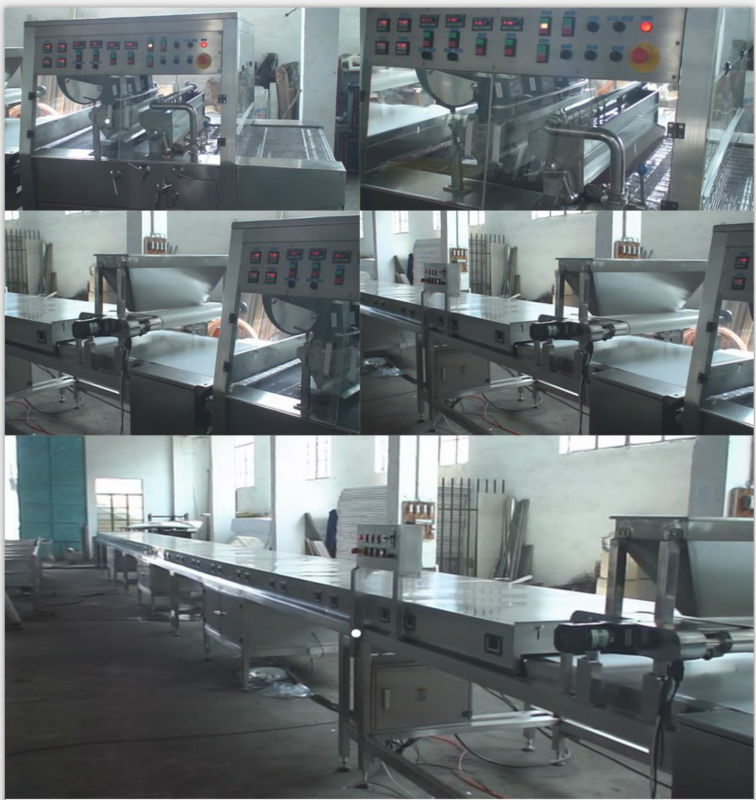

5. Chocolate enrobing/coating machine:

model technical specification	JY400	JY600	Jy800	JY900	JY1000	JY1100	JY1200	JY1500
Mesh belt width (mm)	360	550	750	850	950	1050	1150	1450
Mesh belt speed (m/min)	0 -8	0 -8	0 -7	0 -7	0 -7	0 -7	0 -7	0 -7
Conveyor belt width (mm)	400	600	800	900	1000	1100	1200	1500
Conveyor belt speed (m/min)	0 -7	0 -7	0 -6	0 -6	0 -6	0 -6	0 -6	0 -6
Overall power (kw)	7.5	9.17	9.17	9.17	12	12.5	12.5	21.5
Weight (kg)	1900	2300	2800	3200	3600	3800	4000	5500
Outside bimension (mm)	L × 850× 1800	L × 940× 1800	L × 1400 × 1800	L × 1550× 1800	L × 1650× 1800	L × 1750× 1800	L × 1850× 1800	L × 2300× 1800

Condition:	New	Place of Origin:	Shanghai China (Mainland)	Brand Name:	JY
Model Number:	JY	Application:	Chocolate	Voltage:	220V/380V or other
Power(W):	15.74KW	Weight:	2300kg	Dimension(LWH):	124009401800
Certification:	CE,ISO	Warranty:	one year	After-sales Service Provided:	Engineers available to service machinery overseas
material::	stainless steel
