chocolate bean forming machine

FOB Price:Price can be negotiated

Production Capacity:20pcs/year

Payment Terms: FOB

Update Time:2015-05-25

Contact Supplier

Product Description

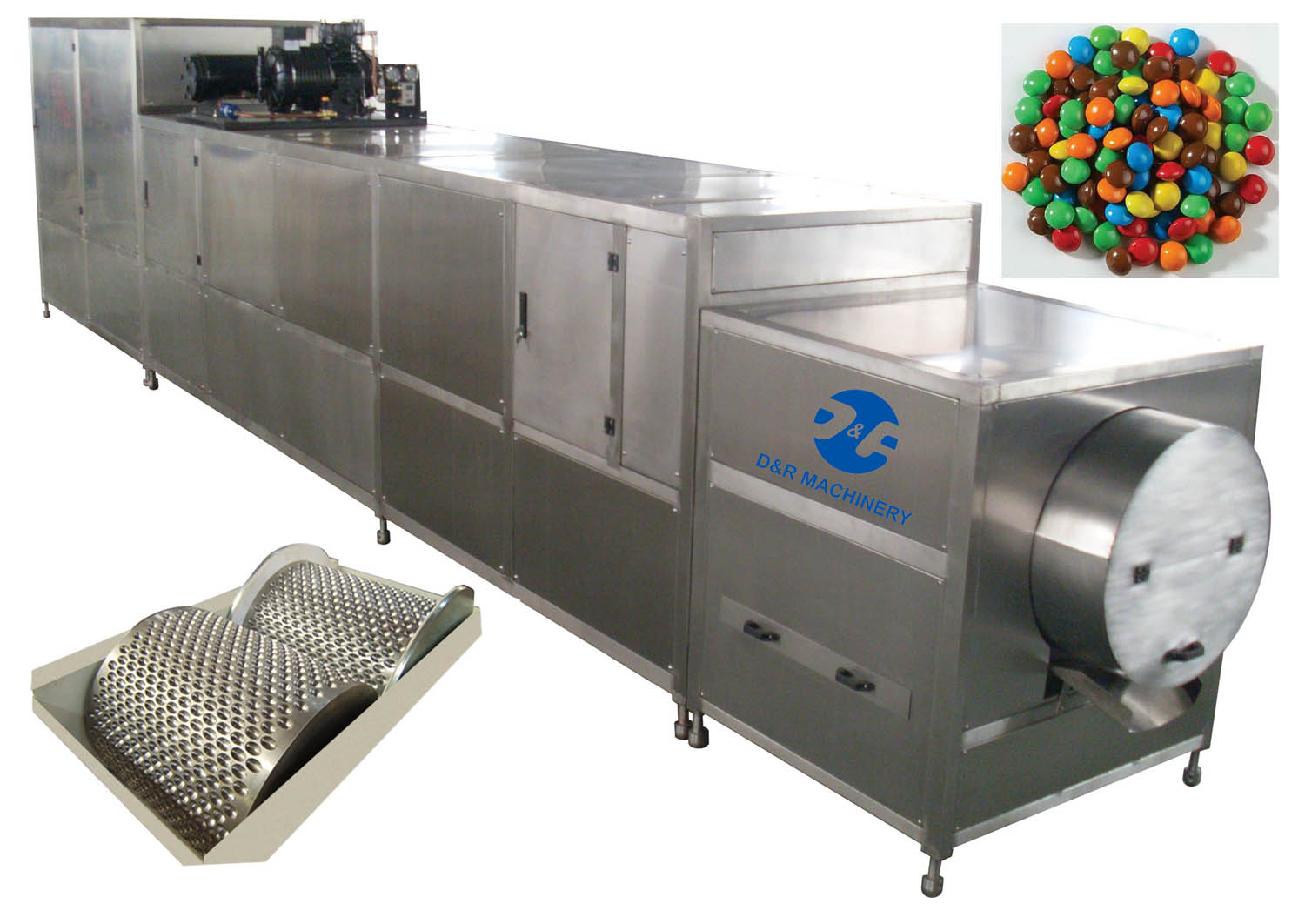

The machine is specifically used to forming different shapes of chocolate beans.

The chocolate glaze is poured into the cavities of the two rollers with cooling system and form the chocolate beans.Then the chocolate beans fall on the conveyor belt and are sent to the cooling tunnel(three layers).After full cooling, then send to the deburring device. Then it needs the labor to take the chocolate beans from the chocolate bean forming line to the chocolate coating machine for coating or polishing.

Technical data

Capacity:100-150kg/hour

Speed of rollers:0.3-1.5r/min

Temperature of cooling roller surface: about -24℃

Temperature of cooling tunnel:0-5℃

Cooling time:18-30min

Total Power:25kw

Size:8620*1040*1840mm

Weight:2500kg

Company Profile

Name: D&R Machinery Co Ltd

Main Products: chocolate conche,chocolate tank,chocolate ball mill,chocolate temper,chocolate moulding machine,chocolate lentil machine,machine,candy depositing machine, Mogul Plant,candy bar production line

Business Type: Manufacture

Total Employees: 50 ~ 100

Established Year: 2003

Total Annual Revenue: US$2.5 Million - US$5 Million

Main Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Mid East,Western Europe,

Address: Lishe Village Shiqi Town Yinzhou District Ningbo China

Our company supply following machines: melting tank,chocolate conche,chocolate ball mill,chocolare storage tank,chocolate tempering machine,chocolate depositing line,chocolate enrobing machine, chocolate lentil forming machine,chocolate packing machine,jelly candy production line,toffee production line,lollipop production line,candy packing machines,candy bar production line, Mogul Plant, Swiss roll and layer cake production line
