Chocolate egg making Machine,China YOKE price supplier

Chocolate egg making Machine

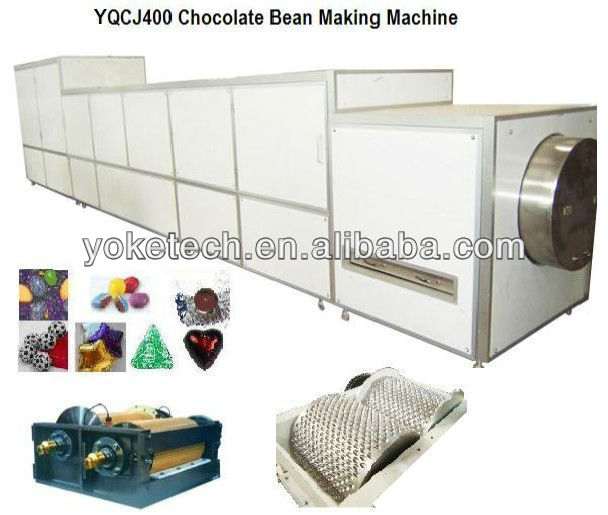

chocolate ball making Machine ( Model: TQCJ400)

(include one set of cold roller and cooling tunnel)

Use:

The product is a piece of special equipment for chocolate bean forming, which is used for pure chocolate of different shapes in cold rolling, including shapes such as ball, egg, star, heart, triangle and so on.

Main technical parameters:

• Production capability: 1,500kg/8hours
• Roller dimension: 414(diameter)*400(length)mm
• Roller motor power: 1.1kw
• Temperature of the cooling tunnel: 0 ~ 5 °C
• Length of the cooling tunnel: 6metres * 3 layers
• PU conveyor width: 600mm
• Cooling tunnel match one 8HP cooling compressor, motor power: 1.1kw
• Refrigeration quantity of the cooling liquid: 6280W (evaporation temperature-30 °C , condensing temperature 30 °C )
• Motor power of refrigeration and cooling system: 10HP
• Power of the machine: 21.3KW
• Dimensions:7220×1040×1840 ( L×W×H )
• Weight of the machine: 2400kg
