Chocolate Machine Automatic Double Shots Chocolate Moulding Plant (QJ175)

FOB Price:Price can be negotiated

Update Time:2014-09-24

Product Description

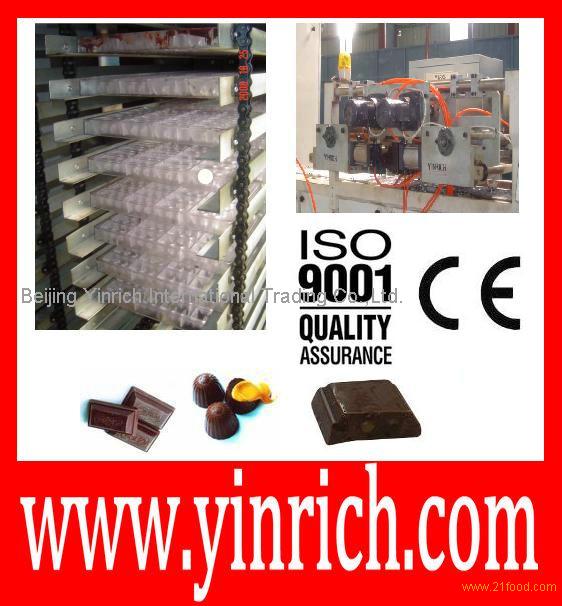

The processing line can continuously produce various kinds of chocolate products. It is an automatic PLC controlled equipment which consists of process steps of mould heating, Nuts pieces mixing, accurate depositing, pistol central liquid-filling, vibrating, cooling, de-moulding and etc...The whole plant adopts the advanced moulds- automatic line and turning device. It also uses the step-lifting cooling system, the mould auto-oriented position system and auto detecting device. It can produce out good quality chocolate products such as "two color", " Liquor central filling", "small nuts pieces mixed" (dia. Of the nuts piece < 3mm)chocolate and Pure chocolate products.

TECHNICAL SPECIFICATIONS:

Model

QJ175

Production capacity ( tons/shift)

1.5~2.5 tons

Max. of the central-filling ( %)

30

Drive Speed ( n/min)

6~12

Frequency of the vibrator

150~1400Hz

Vibrator motor power

0.75x5=3.75kws

Mould heating power

3.6x2=7.2kw

Vibrating motor power

0.75kw

Depositing step motor power

1.5 x4=6kw

Stirring motor power

0.2 x4=0.80kw

Circulating hot-water power

4.5kw x2=9kw

Main drive power

5kw

Mould lift and transporting motor power

2.25kw

Hot water pump power

0.75x2=1.5kw

Refrigerator power

10KW

Moulds size and numbers needed

300x225x 30mm

320pieces needed

Compressed air consumption

Compressed air pressure

2m3 /min

0.4~0.8Mpa

Conditions needed for the cooling system:

1.Room temperature(C )

2.Humidity (%)

20~25

55

Dimension(LxWxH mm)

21000 x2200 x2150

Gross weight (Kgs)

6500

Other Products

Candy Machine Complete Hard Candy Depositing Line With PLC Control (GD1000)

Candy Machine Fully Automatic PLC Control Servo-Dri Hard Candy Depositing Line (GD1200-SERVO)

Candy Machine Die-Formed Hard Boiled Candy Processing Line (TG200)

Candy Machine Cut Formed Style Boiled Candy Processing Line (QG200)

Company Profile

Name: Beijing Yinrich International Trading Co.,Ltd.

Main Products: Confectionery and chocolate processing machinery,packaging equipment,and food machines.

Business Type: Manufacture & Trade

Total Employees: 50 ~ 100

Established Year: 1999

Total Annual Revenue: US$50 Million - US$100 Million

Main Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe,

Address: No.62 West Street, Gulou, Beijing, China

Beijing YINRICH International Trading Co.,Ltd. is a subsidiary of Shanghai YINRICH Machinery Manufacturing Co.,Ltd. which is the leading and professional manufacturer in China for providing the high quality confectionery and chocolate processing machinery ,packaging equipment ,and food machines . The factory is located in Shanghai, China.We have supplied our machines to many countries in the world for almost over 10 years.

Model	QJ175
Production capacity ( tons/shift)	1.5~2.5 tons
Max. of the central-filling ( %)	30
Drive Speed ( n/min)	6~12
Frequency of the vibrator	150~1400Hz
Vibrator motor power	0.75x5=3.75kws
Mould heating power	3.6x2=7.2kw
Vibrating motor power	0.75kw
Depositing step motor power	1.5 x4=6kw
Stirring motor power	0.2 x4=0.80kw
Circulating hot-water power	4.5kw x2=9kw
Main drive power	5kw
Mould lift and transporting motor power	2.25kw
Hot water pump power	0.75x2=1.5kw
Refrigerator power	10KW
Moulds size and numbers needed	300x225x 30mm 320pieces needed
Compressed air consumption Compressed air pressure	2m3 /min 0.4~0.8Mpa
Conditions needed for the cooling system: 1.Room temperature(C ) 2.Humidity (%)	20~25 55
Dimension(LxWxH mm)	21000 x2200 x2150
Gross weight (Kgs)	6500
