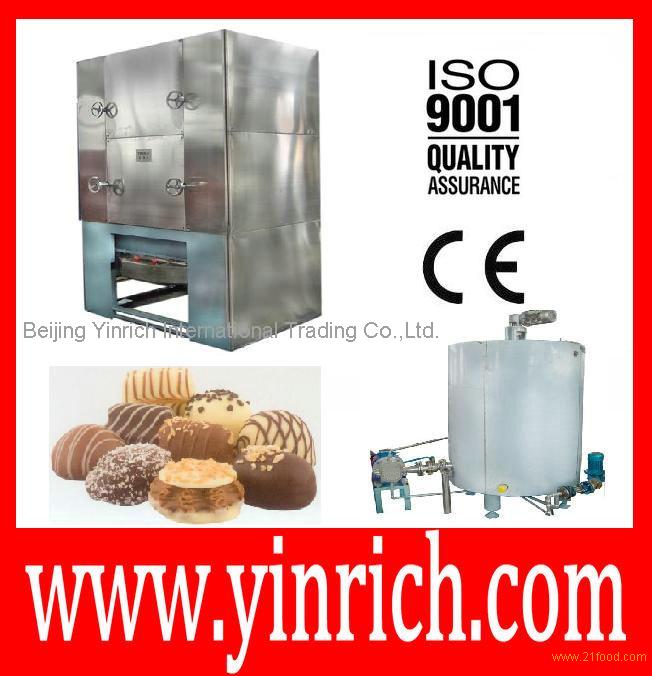

Chocolate Machine Small Capacity Chocolate Moulding Plant (QRX-2000),China YINRICH price supplier

The high-speed grinding machine is made up of press Roller and grinder:
Press roller:
This machine can pre-grind the pieces of chocolate and other raw material. The required dimension and shapes of the products can be reached via the moving rollers. The pressure system of this machine is automatically controlled and adjusted via the distance of roller through the SERVO-Dri motors. During the operation, the parameter of the pressure can be set over a wide range. This can guarantee the flexibility of the products, and can be used for grinding many kinds of food materials.
The operating system of this machine can be controlled /set in a PLC controller. All the parameters, regarding the program, such as pressure, testing, operating situations, can be achieved through a manue.
High-speed grinder:
The chocolate pieces This machine use indented roller, high-speed spin ways. The pieces of materiel can be cut to fines by centrifugal impact and high-speed cutting for your request.
/Main technical specifications:
Output capacity: 2000kgs/h
Total power: 8.5kw
Dimension: 1200x1500x2700 MM

Spiral dissolving and extruding machine
Main function:
The dissolving and extruding machine is a newly technique-developed unit with less space occupied. The principle of this machine is based on continuous refined production; It can make nicer crystal effect and quick- dissolving function.
The dissolving extruder has the innovative dissolving Cutter which can combine dissolving and cutting in an one process. It can complete the chocolate's melting via a high-cutting range and the determined temperature. It can make the chocolate material more small subtle suspension under the mixture conditions of temperature, time, and cutting. It also can make the chocolate mass to have good pliability and will be available for specified production, to meet the requirement of forming and processing technology.
/Technical specifications:
Production capacity: 2000kgs/h
Total power: 20KW(include temperature control radiator)
Dimension: 2700× 600× 1400
Dimension(Temperature controlling water tank): 840× 640× 850mm

Chocolate refining storage tank
Main function:
Chocolate refining storage tank is a kind of perfect refine tech equipment. It uses high power and duplex turning principle to release the refining time, so the quality and taste of the product can be controlled perfectly.
Duplex turning movement is completed by a special construction of three- turning spindles whose turning is in steps, so the cutting can effect overall.
Huge surface of exchanger and the closed water circulatory system can keep whole temperature control system more precision and stable. Temperature control system includes processing monitor, alarm and emergency tip. According to the apply extension, use program controller and temperature controller to control rolling direction and construction of the spindle, the customer can get the best processing techical effect.
/Main techical parameter:
Volume: 5 tons
Total power: 30KW
Dimension: 4000× 2000× 2300 mm
