closed loop air cooled water chiller with eco-friendly refrigeration

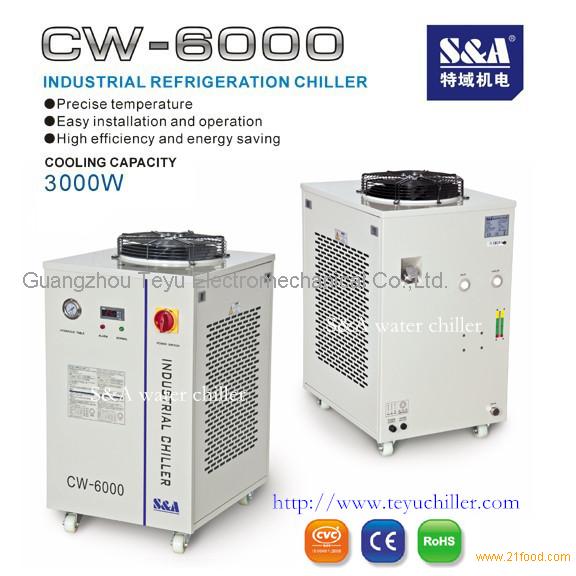

CW-6000 closed loop air water cooled chiller is developed and produced by S&A company of China, it can be used for cooling down 3*100W co2 laser, a single 100W co2 RF laser, 100W solid-state laser or 22KW spindle.
CW-6000 water cooler has 3000W cooling capacity with ±0.5℃ stability, it has 2 temperature control modes as constant temperature and intelligent temperature control. Under intelligent mode, the water temperature is adjusted according to ambient temperature.
Air cooled chiller parameter:
Voltage:110V-220V; Frequency: 50/60Hz; Refrigerant: R-22 / R-410a
Pump power: 0.05KW/0.1KW/0.37~0.75KW; Tank capacity:15L
Max. lift:10M/25M/28~53M; Max. flow: 13L/min- 70L/min
N.W: 60Kgs; G.W: 70Kgs;
Dimension : 67 X 47 X 89 cm (L X W X H); Packing dimension: 74 X 60 X 109 cm(L X W X H)
Guangzhou Teyu Electromechanical Co., Ltd. was established in 2002, which specializes in developing, producing and selling industrial chillers for more than 12 years with annual output of 60,000 units of water chiller. We has a dedicated R&D, quality inspection team and production base, a total 9,000 square meters production plant located in Haizhu District and Panyu District in Guangzhou, becoming the largest manufacturer of small power industrial chiller in China. By always adhere to “Quality First, Strive for Excellence” business philosophy of design and production, brands “S&A” and “TEYU” have achieved the trust from hundreds of domestic and foreign manufacturers, product export ratio reaching over 60%. Teyu refrigeration technology is leading in industrial refrigeration field with CW series product having become industry standard products and known as "industrial refrigeration expert"
With thermolysis type and refrigeration type industrial chillers as the core of production, and dozens of CW series chiller as unique feature of professional brand, we produce and design chillers in accordance with modern laser equipment characteristics and requirements using energy-efficient and precise intelligent temperature control technology.
