CNC Hi-Speed Label Printing Machine,China WELLPAK price supplier

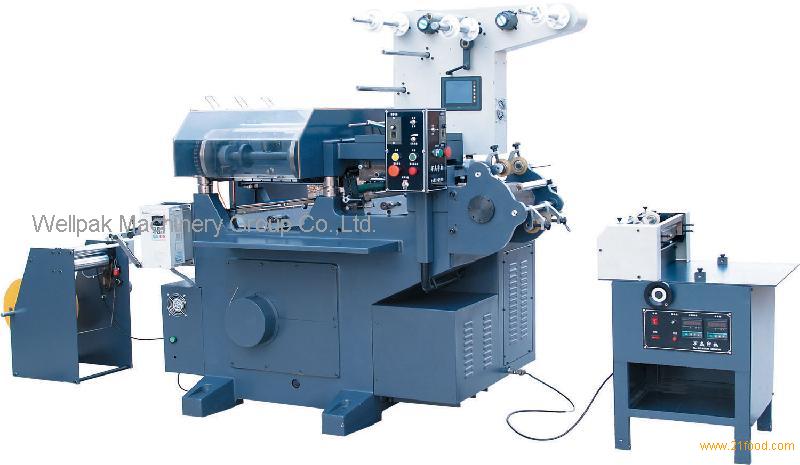

CNC Hi-Speed Label Printing Machine

FOB Price:Price can be negotiated

Production Capacity:UNLIMITED

Update Time:2022-01-24

Contact Supplier

Product Description

CNC Hi-Speed Label Printing machine

Feature:

Inclined Back design: It employed a design of inclined back for both printing and die cutting. Gradual touch and so the pressure is equal every where. Both base color printing and little letter printing is delicate and very clear.

Easy and simple plate exchange. Trial printing material wastage is reduced and label printing cost is greatly lower.

Simple operation and so top skilled operators not needed.

Printing speed regulation control is by Taiwan variable frequency drive. Within 50-200 prints/min.

Die cutting foundation is separated from printing unit and easy for position alignment.

Coating is between the printing and die cutting. And so it may complete printing, coating and die cutting, etc.

With oiling, printing and in-feeding systems, it may print delicate and clear picture.

Whole body by cast iron. Stable and endurable.

With internal lubing system to insure high speed and trouble free performance.

Standard configuration:

2-color assembly

1 set

3-color assembly

1 set

4-color assembly

1 set

Sheet feeder

1 set

Die-cut upper/lower frame

1 set

Standard tool

1 set

Die cutting unit

1 set

Technical parameter

Model

4280

4230

4210

4180

Print area

280x450

230x390

210x390

180x320

1-2 colors

270x218

220x170

200x170

170x140

3-color

270x140

220x120

200x120

170x95

4-color

270x105

220x85

200x85

170x70

Max. paper width

280 mm

230 mm

210 mm

180 mm

Max. paper forward

230 mm

180 mm

180 mm

150 mm

Max. die cut dimensions

270x340

220x180

200x180 mm

170x170

Print speed

30-150

50-150

50-200

50-200

Weight net

3500 kg

3000 kg

2800 kg

2200 kg

Weight gross

4000 kg

3600 kg

3200 kg

2600 kg

Packing dimensions

8

7

7

5.4

Main drive motor

3.0

2.2

2.2

2.2

Suction motor

0.6

0.6

0.6

0.375

Glazing motor

0.025

0.025

0.025

CNC Hi-Speed Label Printing Machine

FOR MORE INFORMATION AND VIDEO ABOU THIS MACHINE ,PLEASE OPEN THIS LINK : YOU CAN SEE THE VIDEO AT THE END OF THE PAGE YOU OPENED .
