cnc router RJ-1325,China ruijie price supplier

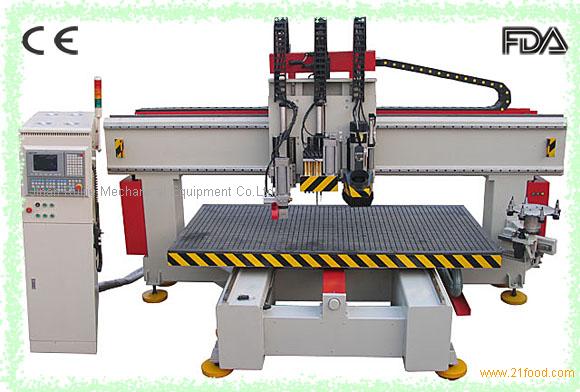

cnc router RJ-1325

FOB Price:Price can be negotiated

Production Capacity:300

Payment Terms: L/C,T/T

Update Time:2022-06-18

Contact Supplier

Product Description

1.Y-axis adopts double motors to ensures stable operation
2. Lathe bed is cast wholly and firmly and will not deform
3.Highly accurate Rack Rail travel method with high speed
4. The vacuum cleaning system offers a clean working environment and better quality
5.USB ensures high speed and efficiency
6.The unique calculating system realizes speedy, accurate, curvy operation.

Parameters:

Working travel	X axis 1300 mm Y axis 2500 mm Z axis 230 mm
Table size	1300 mm*2500 mm
Maximum speed	X Y axes 60m/min
Spindle	Voltage: AC380v Frequency:400Hz
Italy HSD	Speed:24000r/min Power:8kw
Pressure	Air-blow pressure 0.4 MPa Tool hold Pressure 0.7 MPa
Pressure protection	No less than 0.7
Dust collecting power	3.0kw
Vacuum power	5.0kw (phenol aldehyde laminated cloth board)
Total power	23.0kw
Mechanism size	Area:1.8m*3.3m Height:1.5m Weight:850kg
Japanese servo motor	Large torque, which ensures stable operation, low noise, accurate position. The idle strake speed can be more than 60m/min.
Tool storage	8 tools
Diameter of cutter head	3.175mm, 6mm, 12.7mm.
Cubage	18.0 CBM
